INSTALLATION/SETUP TRANSMIG 4RT
Manual 0-5245 3-23 INSTALLATION/SETUP
3.15 Inserting Wire into the Feed
Mechanism
WARNING
ELECTRIC SHOCK CAN KILL! Make certain the
input power is disconnected from the power
source before proceeding. Do not reattach
the input power until told to do so in these
instructions.
1. Loosen the Spring Pressure Adjusting Knobs if
needed and swing them down (Figure. 3-13)
2. Move the Pressure (top) Roller Arms by swinging
them up. (Figure. 3-14)
3. Make sure the end of the wire is free of any burrs
and is straight. Pass the end of wire through the
Inlet Wire Guide and over the Feedrolls. Make
certain the proper groove is being used. (Figure.
3-14)
4. Pass the MIG wire over the drive roll groove,
through the outlet guide and out past the MIG
Torch Adaptor. Then fit the MIG Torch as per Sec-
tion 3.11 ensuring the MIG wire passes into the
MIG Torch liner of the MIG Torch.
5. Close the Pressure Roller Arms. (Figure. 3-15)
6. Swing the Spring Pressure Adjusting Knob back
into place. (Figure. 3-16)
7. Use the Pressure Adjusting Knobs to create a
“snug” condition. (Clockwise to tighten and
Counter Clockwise to loosen). (Figure. 3-16)
8. Continue to the next section for proper setting of
tension.
1
Art # A-11289

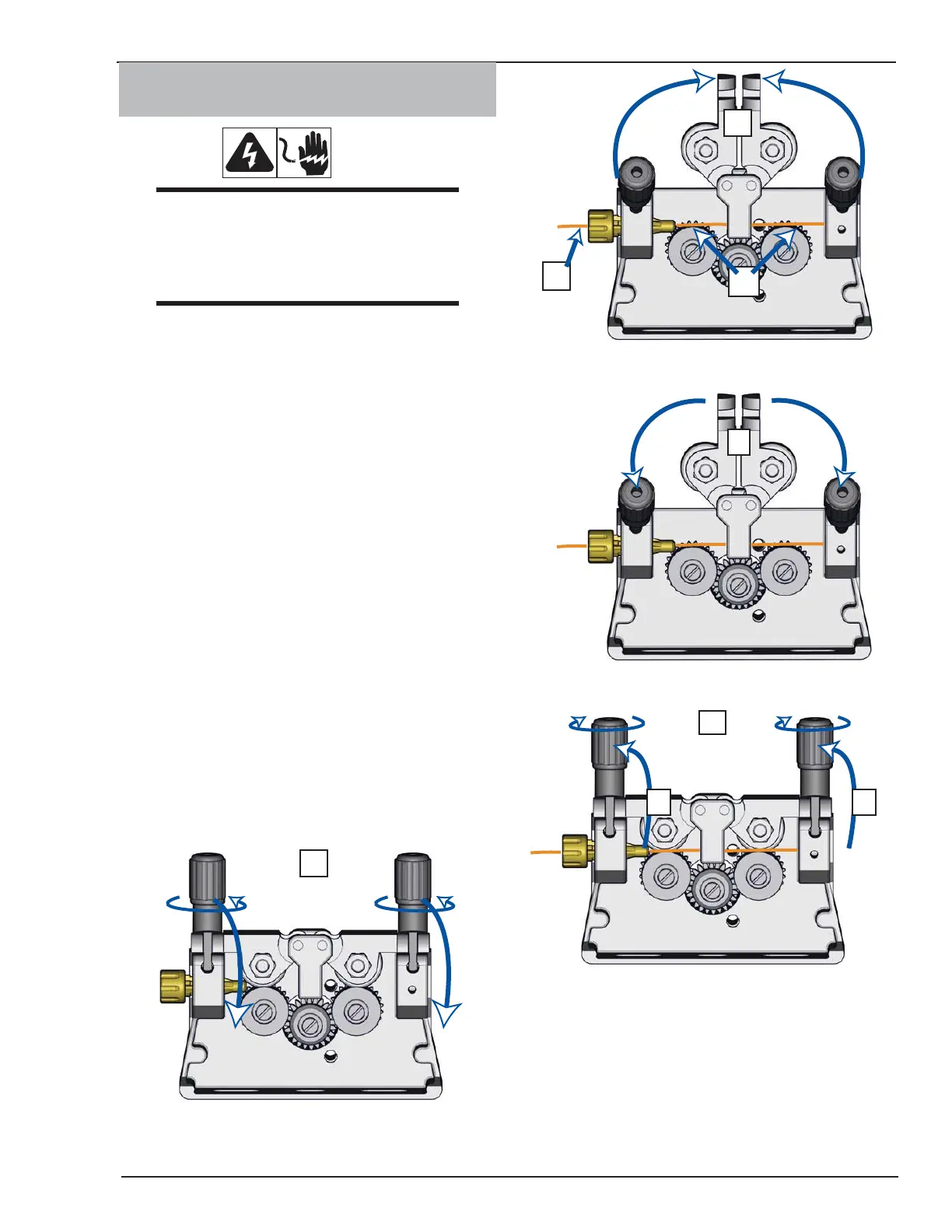

Figure 3-13: Opening Pressure Arms
3
2
4
Art # A-11290
Figure 3-14: Opening Tension Arms and Inserting Wire
Art # A-11291
5
Figure 3-15: Closing Pressure Arms
Art # A-11292
7
6
6
Figure 3-16: Adjusting Tension
