MANUAL SETTINGS IN MIG (VOLTAGE & WIRE
FEED SPEED)
Wirefeeder setting requires some practice by the operator,
(however with the QuickSet feature of the 4R-Rover, setting
up the correct parameters is a very simple procedure - refer
to sections 5.14 and 5.15), as the wirefeeder has two control
settings that have to balance. These are the Wire Feed Speed
control and the welding Voltage Control. The welding current
is determined by the Wire Feed Speed control, the current
will increase with increased Wire Feed Speed, resulting in a
shorter arc. Less Wire Feed Speed will reduce the current and
lengthen the arc. Increasing the welding voltage slightly alters
the current level, but mainly lengthens the arc. By decreasing
the voltage, a shorter arc is obtained with a little change in
current level
When changing to a different MIG wire diameter, different
control settings are required. A thinner electrode wire needs
more Wire Feed Speed to achieve the same current level.
A satisfactory weld cannot be obtained if the Wire Feed Speed
and Voltage settings are not adjusted to suit the MIG wire
diameter and the thickness of the work piece.
If the Wire Feed Speed is too high for the welding voltage,
“stubbing” will occur as the wire dips into the molten pool and
does not melt. Welding in these conditions normally produces
a poor weld due to lack of fusion. If, however, the welding
voltage is too high, large drops will form on the end of the
wire, causing spatter. The correct setting of voltage and Wire
Feed Speed can be seen in the shape of the weld deposit
and heard by a smooth regular arc sound (which sounds like
sizzling steak on a barbecue). Refer to the Weld Guide located
on the inside of the wirefeed compartment door for setup
information.
MIG WIRE SIZE SELECTION
The choice of MIG wire size and shielding gas used depends on
thew following:
• Thickness of the metal to be welded
• Type of joint
• Capacity of the wire feed unit and Power Source
• The amount of penetration required
• The deposition rate required
• The bead prole desired
• The position of welding
• Cost of the wire
5.18 OPTIONAL ADD-ON DEVICES
Refer to Section 2.10 Optional Accessories for Part Numbers.
For further information on these Add-On Devices refer to their respective Operating Manuals or Cigweld.com.au
Push Pull Gun, BZ36, 8m, Euro
Includes: Pulsemate with 8m cable, Magnetic Holder,
Feed Roller 1.0/1.2mm Qty 2, Contact Tips 1.4mm Qty 5 ,
M8, Tip Holder M8, Nylon Liner 0.9-1.2mm 4.5m, Nylon
Intermediate Guide and Carry Case.
Spoo l Gun BZ24, 6m, Euro
W1400353 BlueVenom XF353
W4200PM1 BlueVenom Pulsemate Kit
W4200PM1 BlueVenom Pulsemate Kit
W1400353 BlueVenom XF353

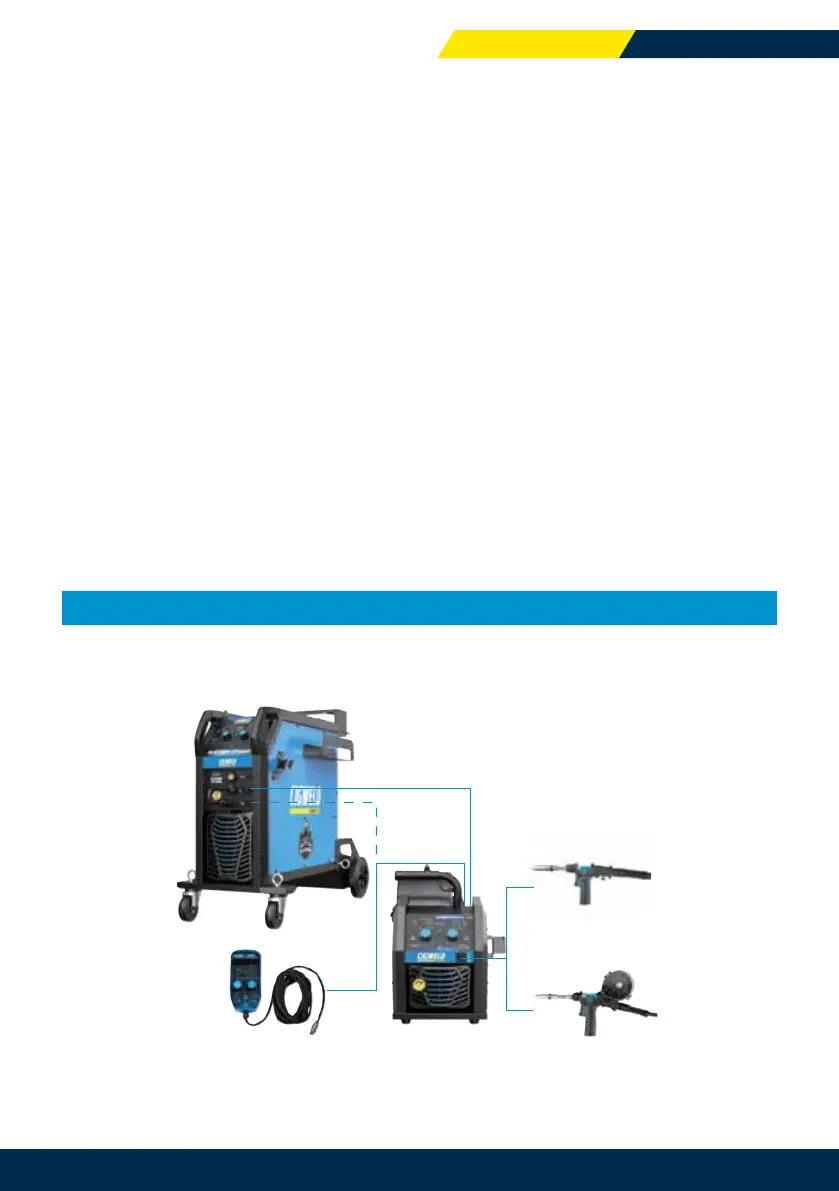

Figure 5-20: Optional Add-on Devices
OPERATING MANUAL BLUEVENOM 4R-ROVER
CIGWELD.COM.AU | 55
