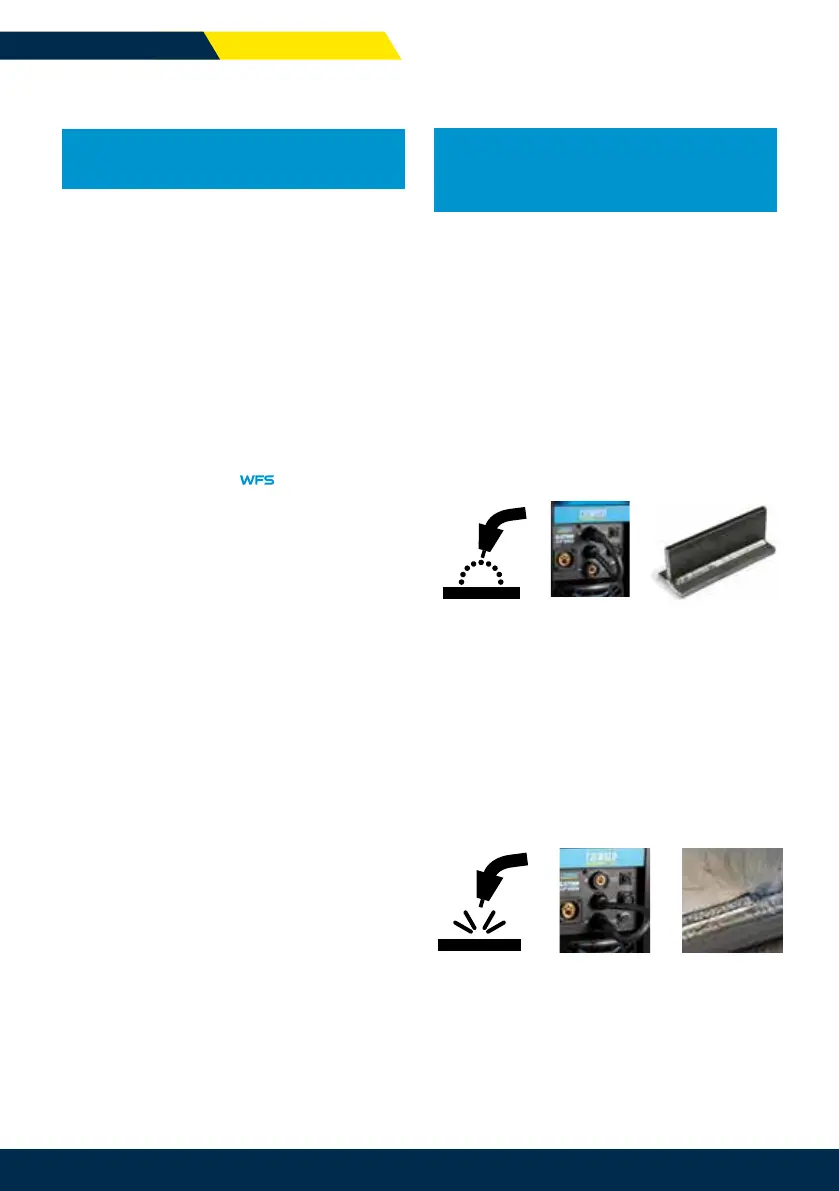

5.16 QUICKSET MIG AND
MANUAL MIG MODES
QuickSet MIG Mode in 4 Steps
With QuickSet Pre-Sets installed the guess work is now taken
out of the setup, to allow excellent welding results. All you need
to set is the Material Type, Shielding Gas Type or Gasless (if
applicable), MIG Wire Diameter and Plate Thickness.
Plate thickness setting allows you to set up in a ash. There is
no guessing the welding parameters. Use the QuickSet feature
to set the machine to the correct plate thickness you are
welding. You can check the plate thickness with a measuring
device, such as a ruler or vernier caliper. If two different plate
thickness are to be joined then, add the two together and divide
by 2 and use the average plate thickness as your setting guide.
Manual MIG Mode
In Manual MIG Mode, Voltage and
WFS Wire Feed Speed
must be manually set. Refer to Section 5.15.
5.17 CONNECTIONS FOR SOLID MIG WIRES
WITH SHIELDING GAS AND GASLESS
FLUX CORED WIRES
Changing the Power Source MIG Gun Polarity in MIG Mode.
The Power Source MIG Gun Polarity Lead is located at the
centre of the Power Source Front Panel. It can be connected
to either of the Positive (+) or Negative (-) Dinse Sockets on
the Power Source front panel. These terminals determine the
polarity of the MIG Gun and the Work Lead connection.
Power Source MIG Gun Polarity Lead Connection for Solid MIG
Wire with Shielding Gas.
1. The Power Source MIG Gun Polarity Lead must be
connected to the Positive (+) Terminal on the front panel
of the Power Source as shown. This makes the MIG Gun
electrode positive, which supplies 2/3 heat to the welding
wire and weld deposit. Polarity electrode/wire Positive (+)
2. The Work Return cable and clamp must be connected to
the negative (-) terminal by inserting the twist connector
into the Power Source front panel socket and then tighten
it clockwise. Connect the clamp to the work piece.
Power Source MIG Gun Polarity Lead Connection for Gasless
Flux Cored MIG Wire.
1. The Power Source MIG Gun Polarity Lead must be
connected to the Negative (-) Terminal on the front panel
of the Power Source as shown. This makes the MIG Gun
electrode negative, which supplies 1/3 heat to the welding
wire and weld deposit. Polarity electrode/wire Negative (-)
2. The Work Return cable and clamp must be connected to
the positive (+) terminal by inserting the twist connector
into the front panel socket and then tighten it clockwise.
Connect the clamp to the work piece.
54 | CIGWELD.COM.AU
OPERATING MANUALBLUEVENOM 4R-ROVER
