NOTE
Wirefeeder settings are adjusted using the front panel controls. Refer to Section 4.02 Indicators and Controls, Section
5.14 MIG QuickSet Mode or Section 5.15 MIG Manual Mode.
WARNING
Moving Parts can cause injury!
WARNING
Before connecting the work clamp to the work piece make sure the mains power supply is switched off.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the terminal.
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the Welding Power Source.
Positive Welding Terminal (+)
Negative Welding Terminal (-)
Work Lead
3P - 400VAC
Mains Supply
Supply Input Lead
PulseMate
PulseMate
Spool Gun
Control Cable
(10 Pin)
Welding Power Cable
10 Pin Remote
Control Socket
Welding Power
Terminal
5 Pin PulseMate
Control Socket
BlueVenom Wheeled
Power Source
10 Pin Wirefeeder
Socket (Remote Feeder)
8 pin Remote
Control Socket

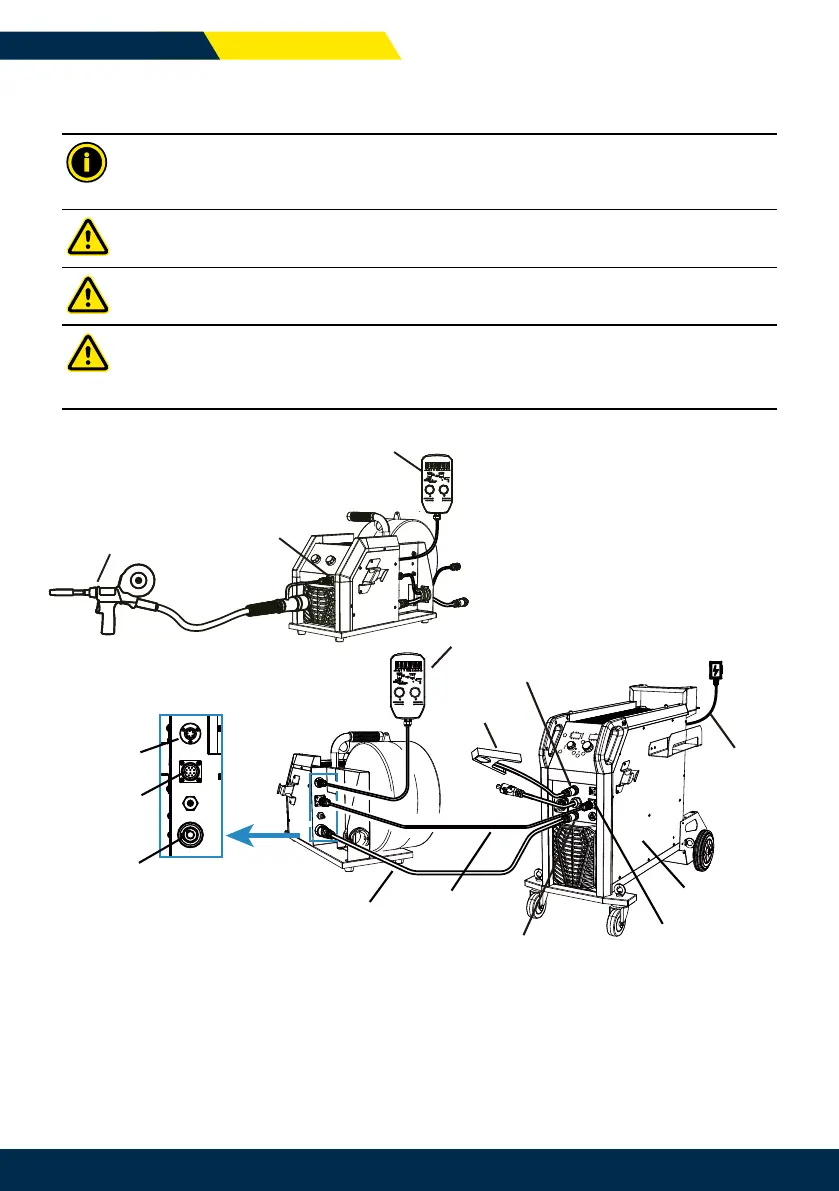

Figure 5-17: Setup with Spool Gun for Gasless MIG Wire
46 | CIGWELD.COM.AU
OPERATING MANUALBLUEVENOM 4R-ROVER
