M. Fit the welding grade shielding Gas Regulator/Flowmeter to the shielding gas cylinder. Ensure that the shielding gas hose
connection is suciently tight at the regulator connection. Refer to section 5.01 for the connection and instruction of shielding
Gas Regulator/Flowmeter.
NOTE
Wirefeeder settings are adjusted using the front panel controls. Refer to Section 4.02 Indicators and Controls, Section
5.14 MIG QuickSet Mode or Section 5.15 MIG Manual Mode.
WARNING
Before connecting the work clamp to the work piece make sure the mains power supply is switched off.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the terminal.
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the Wirefeeder.
WARNING
Moving Parts can cause injury!
Shielding Gas Cylinder
Positive Welding Terminal (+)
Negative Welding Terminal (-)
Supply Input Lead
3P - 400VAC
Mains Supply
Work Lead
PulseMate
PulseMate
BlueVenom Wheeled
Power Source
Gas Hose
Control Cable
(10 Pin)
Welding Power Cable
10 Pin Remote
Control Socket
Welding Power
Terminal
5 Pin PulseMate
Control Socket
Shielding Gas Inlet
10 Pin Wirefeeder
Socket (Remote Feeder)

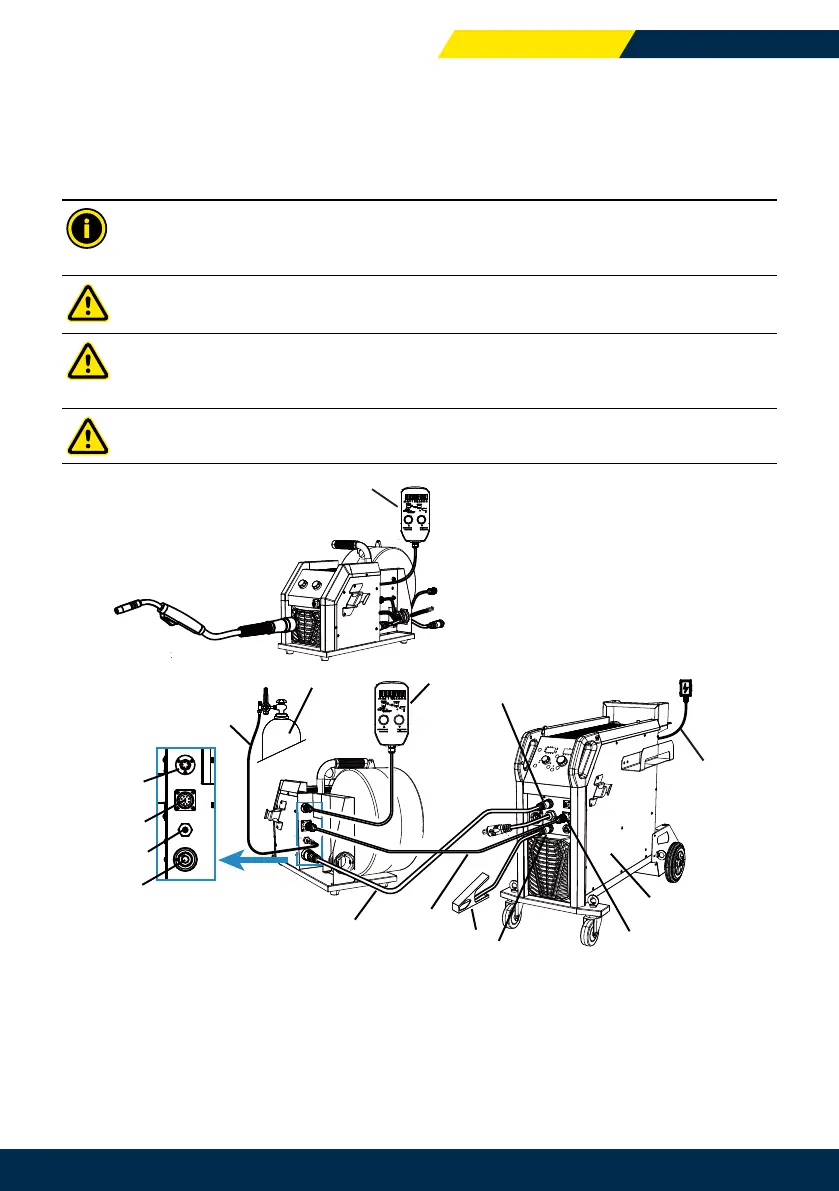

Figure 5-13: Setup for MIG Welding with Gas Shielded MIG Wire
OPERATING MANUAL BLUEVENOM 4R-ROVER
CIGWELD.COM.AU | 39
