3

2021 Cicada Audio All rights reserved.

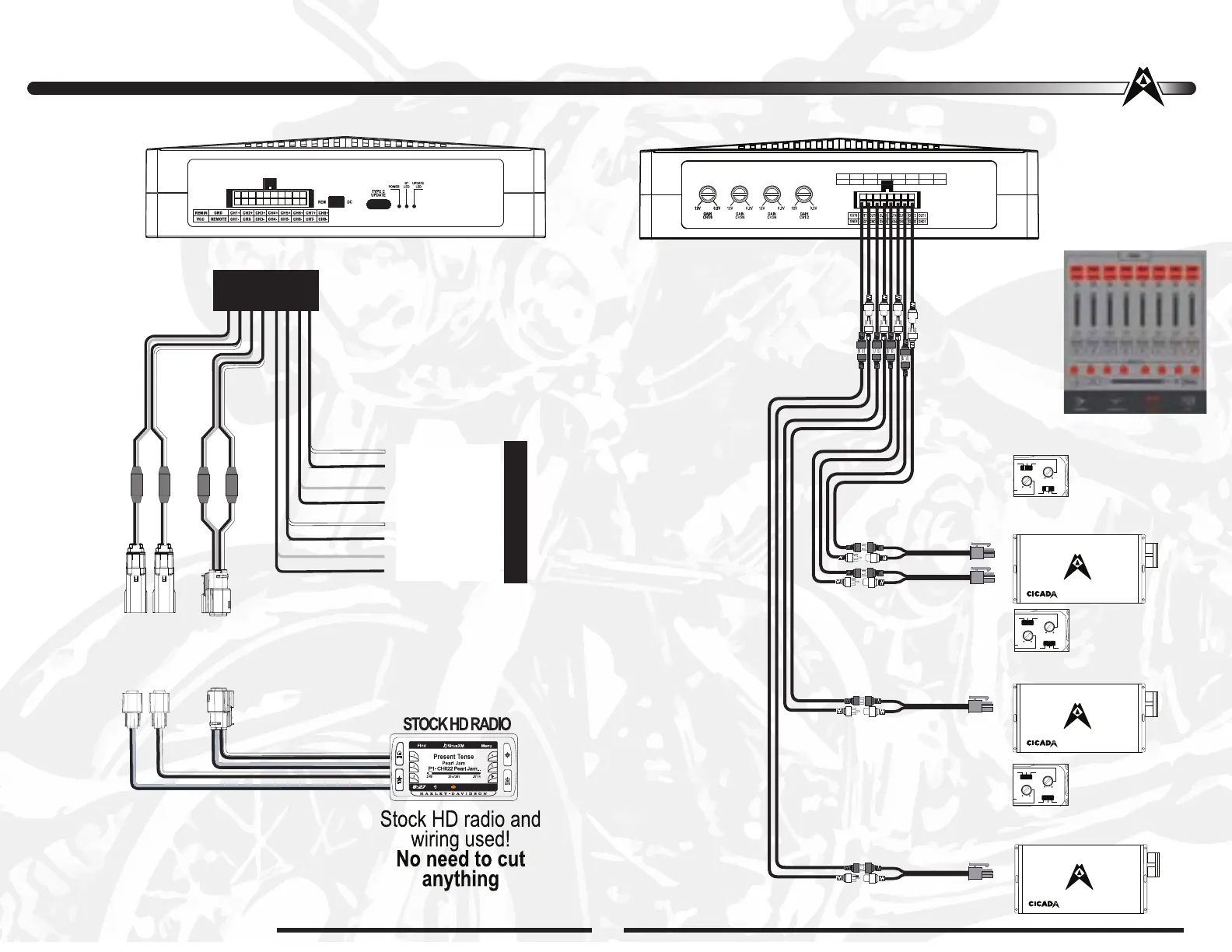

OUTPUT CONFIGURATION

INPUT CONFIGURATION

CH1

(LEFT INPUT)

CH2

(RIGHT INPUT)

CH3/4

(LEFT/RIGHT INPUT)

CH5 (+/- INPUT)

CH6 (+/- INPUT)

CH7 (+/- INPUT)

CH8 (+/- INPUT)

CX250.2D

CX250.2D

CX150.4D

CH1+CH2+CH3+CH4+CH5+CH6+CH7+CH8+

CH1-CH2-CH3-CH4-CH5-CH6-CH7-CH8-

DSP88 CROSSING OVER TWEETERS

HIPASS AT 6kHz 12dB PER OCTAVE

2 CHANNEL AMPLIFIER

DRIVES FRONT MIDBASS

2 CHANNEL AMPLIFIER

DRIVES REAR MIDBASS

4 CHANNEL AMPLIFIER

DRIVES FRONT/REAR TWEETERS

DSP88 CROSSING OVER 6.5” MIDBASS DRIVERS

BANDPASS AT 70Hz - 6kHz 12dB PER OCTAVE

DSP88 CROSSING OVER 6.5” MIDBASS DRIVERS

BANDPASS AT 70Hz - 6kHz 12dB PER OCTAVE

SPEAKER INPUT

CX125.4

GAIN

12V 0.2V

FREQ

40Hz 400Hz

GAIN

12V 0.2V

DCREM VOX

HPFLPF

FULL

FREQ

40Hz 400Hz

HPF LPF

FULL

CH3/4

CH1/2

CX125.4

GAIN

12V 0.2V

FREQ

40Hz 400Hz

GAIN

12V 0.2V

DCREM VOX

HPFLPF

FULL

FREQ

40Hz 400Hz

HPF LPF

FULL

CH3/4

CH1/2

CX125.4

GAIN

12V 0.2V

FREQ

40Hz 400Hz

GAIN

12V 0.2V

DCREM VOX

HPFLPF

FULL

FREQ

40Hz 400Hz

HPF LPF

FULL

CH3/4

CH1/2

INITIAL GAIN SETTINGS ON DSP88

(ALL CHANNELS -6dB)

INTITIAL MASTER GAIN

SETTING ON DSP88 (-6dB)

FRONT L/R

OUTPUT

REAR L/R

OUTPUT

* ON MOTORCYCLES THESE INPUTS

ARE TYPICALLY NEVER USED!!!
