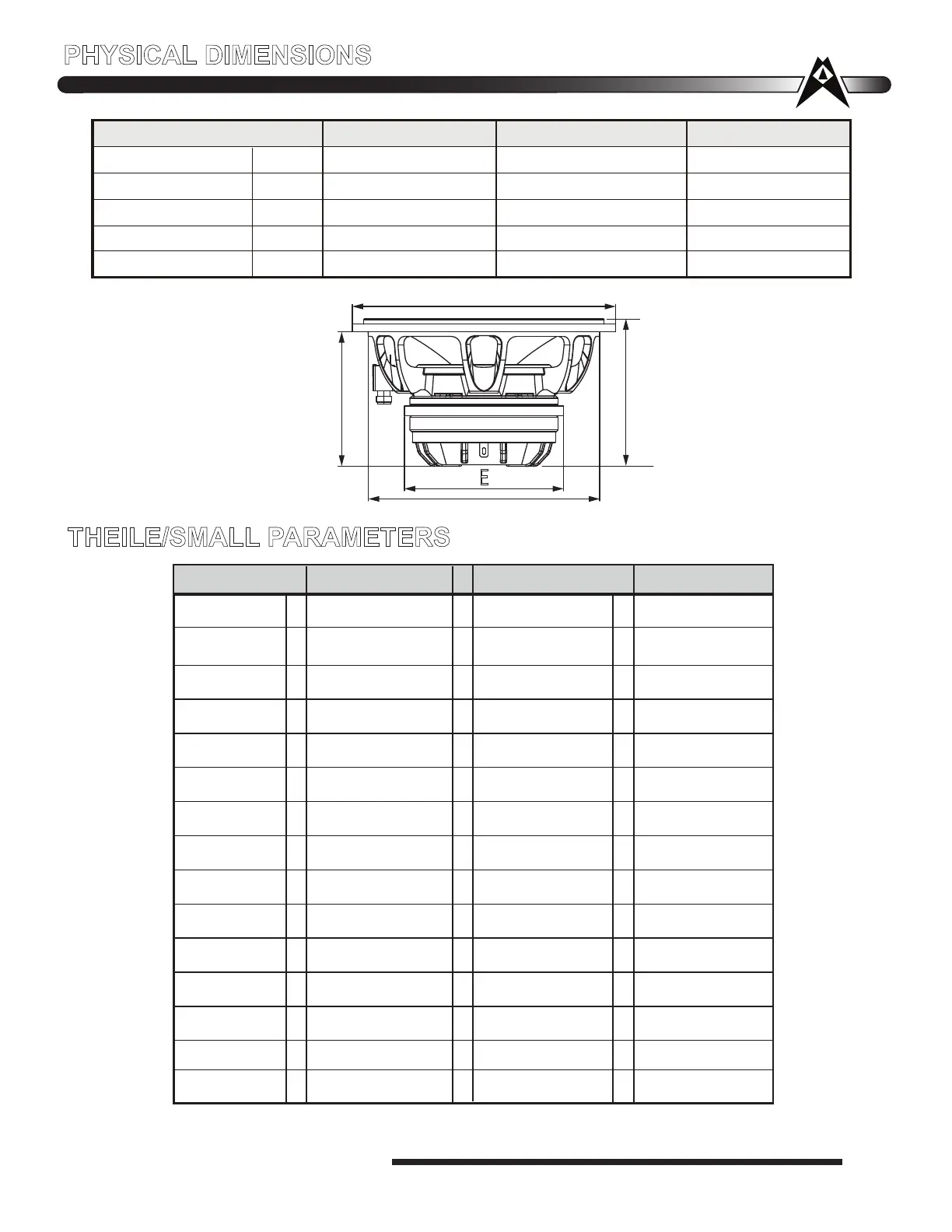

PHYSICAL DIMENSIONS

Dimension Unit

CH65.4 / CH65.2 CH8.4 / CH8.2 CH69.4 / CH69.2

Total Diameter (A)

in. (mm) 6.5 (165) 8.30 (210.5) 9.3X6.6 (237X167)

Mounting Diameter (B)

in. (mm) 5.7 (145.5) 7.1 (180) 8.9X6.1 (226.5X155.0)

Mounting Depth (C)

in. (mm)

3.0 (76.2)

3.6 (91.2)

3.7 (93.2)

Total Depth (D)

in. (mm)

3.375 (85.7)

3.96 (107)

4.04 (102.7)

Magent Diameter (E)

in. (mm)

3.9 (99) 3.9 (99) 3.9 (99)

A

C

B

D

E

THEILE/SMALL PARAMETERS

Parameter (unit)

CH65.4 / CH65.2 CH8.4 / CH8.2

CH69.4 / CH69.2

SPL (dB - MidBass)

96.4

97.2 97.2

SPL (dB - Tweeter)

107 107 107

Re (Ω) - MidBass

3.4/1.9

3.4/1.9

3.4/1.9

Re (Ω) - Tweeter 6.8/6.8

6.8/6.8

6.8/6.8

Qms

4.474 4.246 4.293

Qes

0.669 0.551 0.629

Qts

0.582 0.488

0.549

Fs (Hz)

93.3 81.79 80.6

Vas (L)

2.362 20.502 16.064

Cms (mm/N)

88.8 323.568 214.487

2

Mms (g)

13.484 11.7 14.631

Sd (cm

13.685 21.124 22.96

BL (T*M)

7.92 6.09 6.679

Xmax (mm)

1.5

1.7 1.7

Pwr (W) NOM/MAX

500/**1000 500/**1000 500/**1000

**Power ratings are per PAIR with a Hi-pass filter (electronic for passive) @100Hz - 12 dB Octave
