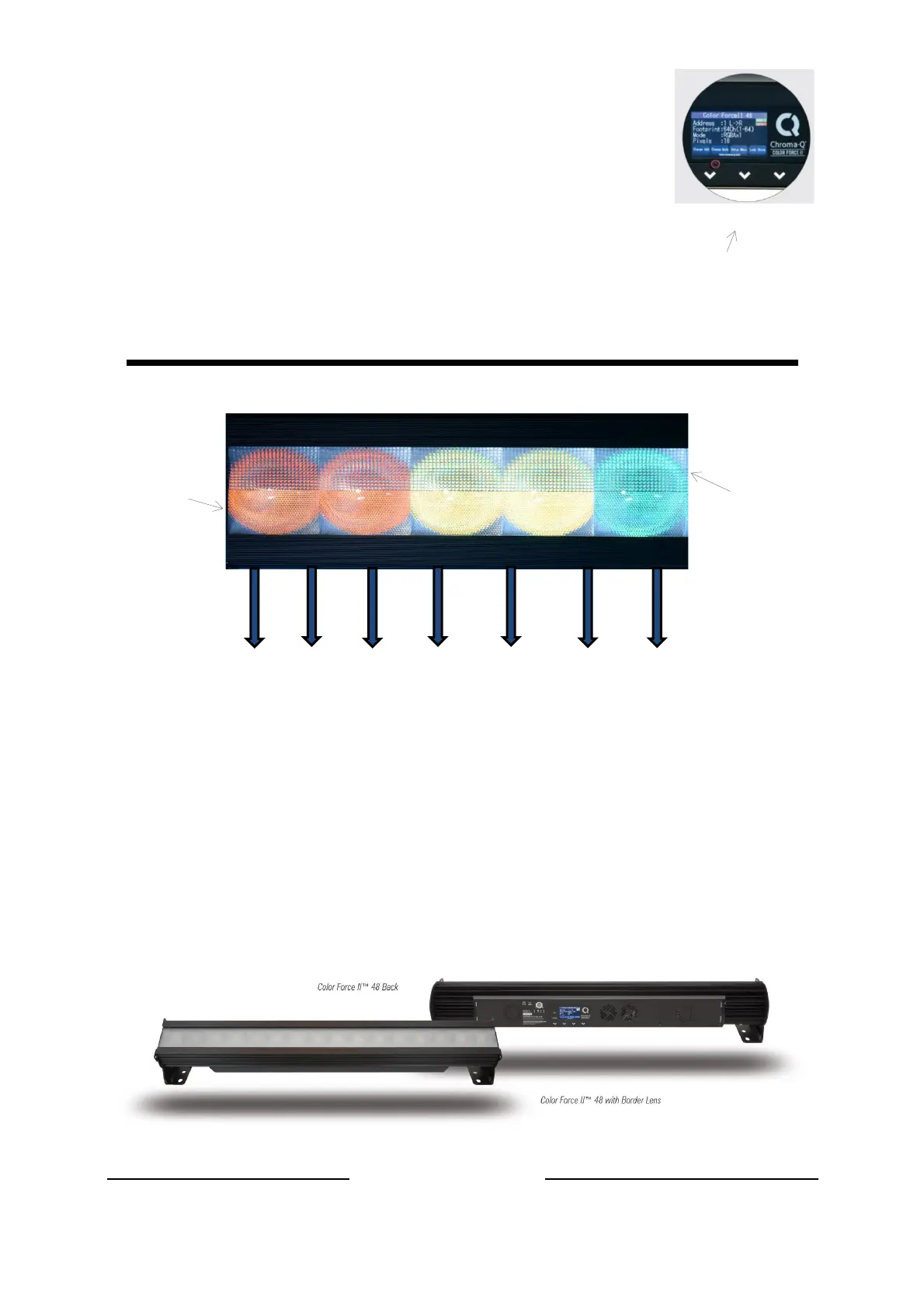

2.4. Orientation

The Color Force II Plus

fixtures are built with lenses that optimize the beam

spread when used on a wall or cyclorama. The side with square diffuse near-

field micro lenses is also indicated by silk screened arrows on the fixture

bottom edge border, which should be adjacent to the wall or cyclorama. The

side with hexagonal far-field micro lenses is indicated should be facing away from

the wall or cyclorama.

2.5. Cyc & Border Lens

“Cyc Lens” and “Border Lens” are optional slide-in optical accessories available to adjust the light

output of the Color Force II Plus

fixtures to suit a wide range of applications. One accessory slot

is provided on the front of the fixture to hold a slide-in lens accessory. Matching indentations on both

ends of lens are provided for locking the lens in place.

Spring Plungers are pre-installed at the far ends of the accessory slot to lock in-place the slide-in panels.

The heights of the spring plungers are preset at the factory do not need adjustment.

Wall or Cyclorama

Hexagonal

far-field

Micro-lenses

Square

diffuse

near-field

Micro-lenses

Audience

Silk screened arrows near the

touch screen should point

towards the cyc or wall.
