Main Menu

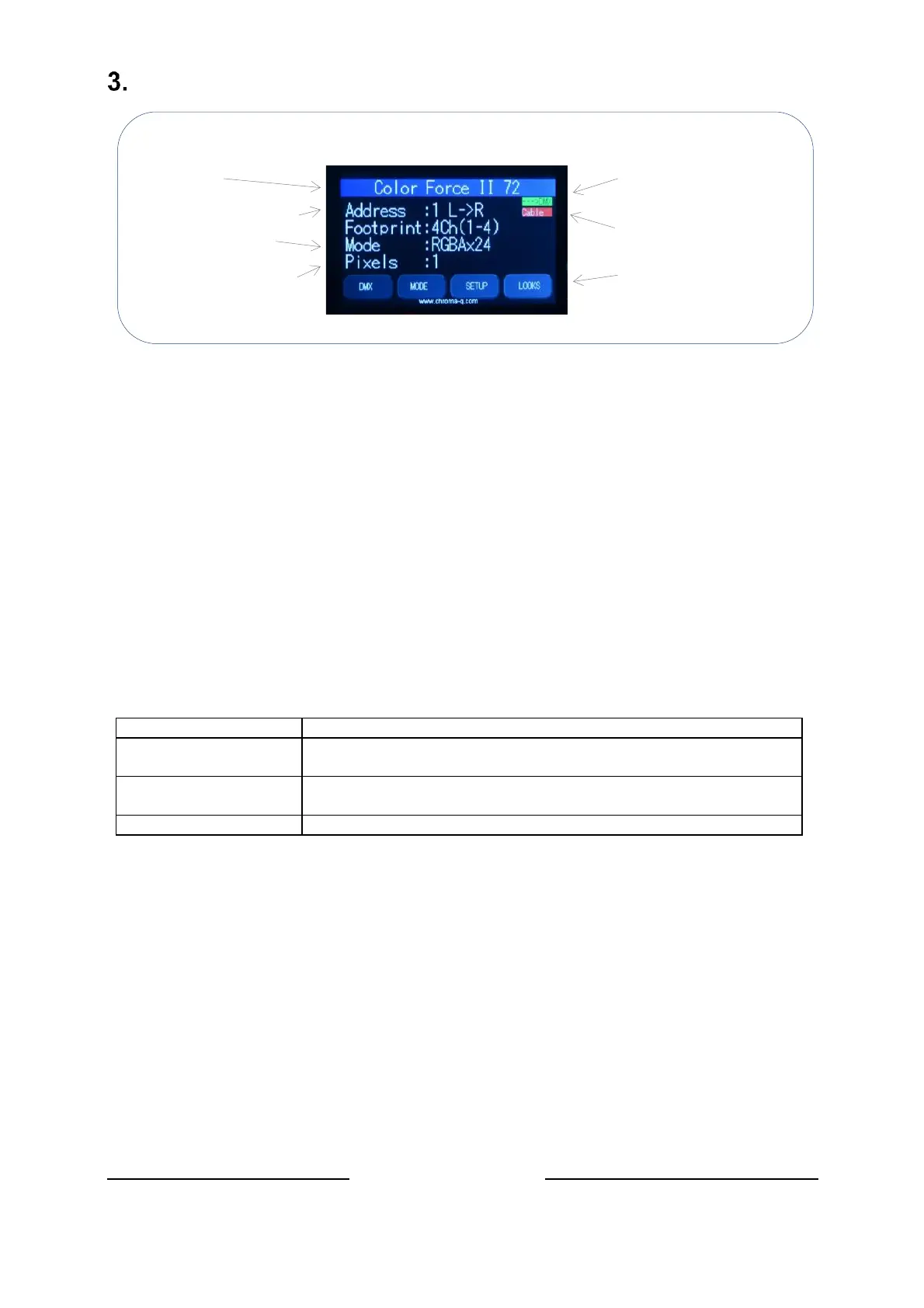

Once the unit is powered up, the display shows the Main Menu with:

• The model name.

• The DMX starting address and orientation.

• Footprint: number of DMX slots used in the current configuration.

• Mode: current assigned control mode and current dedicated pixels (or grouping) as per

selected grouping & control mode.

• Current input status (DMX cable/DMX wireless/No data cable/No data Wireless).

Operational and control changes can be made by selecting any of the four configuration option buttons

shown in the picture above to access DMX (address), Mode, Setup and preset Looks operation.

L→R shows LED pixels will be controlled beginning at left, going towards right. This can be reversed by

choosing R→L in the Mode Menu options. Note: The “Left” side of the fixture is where power and data

enter; the “Right” side is where they exit.

The LCD is backlit when you access the menu. This will turn off when left undisturbed for 5 seconds.

Data Signal Indicator:

Shows the presence and status of DMX signal.

No Data

- appears when the fixture is set at RGB, HSI or RGBA mode

and not connected to an

external DMX control console.

> > >DMX

- appears when the fixture is set at RGB, HSI or RGBA mode

and receiving a DMX signal from an

external DMX control

console is present.

DMX > > >

-appears when the fixture is set at Master and outputting a DMX data

signal.

Model Name

DMX Address & Orientation

Current assigned mode

DMX Channels used in current

configuration

Number of dedicated pixels

Data Signal/Source Indicator

Configuration option buttons
