ODMBCS Installation Instructions

6

Installation

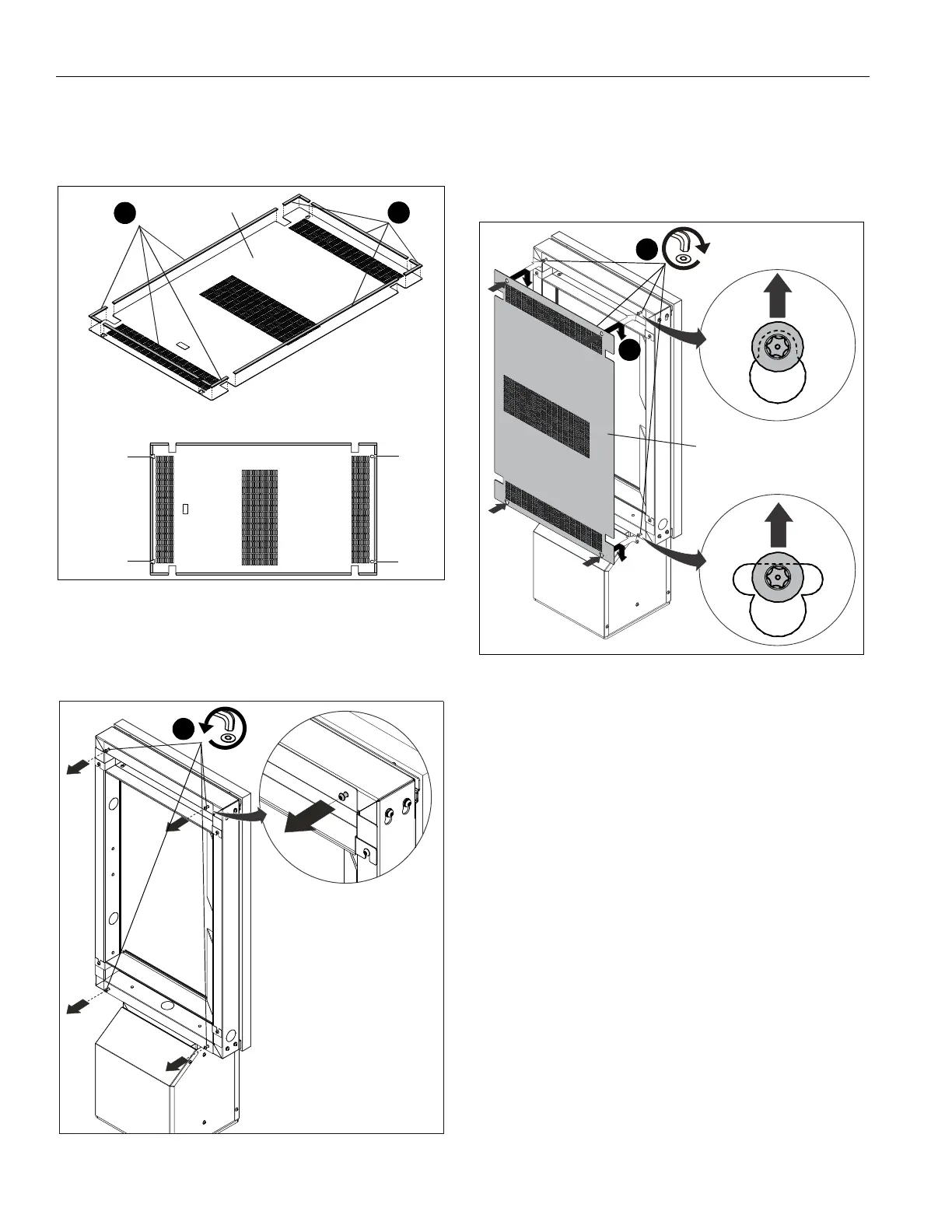

1. Apply foam tape (C) along the outside edges of the back

cover (A). (See Figure 1)

Figure 1

2. Loosen the four M8 x 20mm security screws from the rear

of the frame. Leave approximately half of the threads

exposed. (See Figure 2)

Figure 2

3. Place the rear cover (A) over the frame. Position the

exposed screws through the four slots in the corners of the

cover, then lower the cover and hang it on the screws. (See

Figure 3)

4. Re-tighten the four M8 x 20mm security screws using the

included T40 security hex key (B). (See Figure 3)

Figure 3

1

(C)

Gap

1

(C)

Gap

Gap

Gap

(A)

2

x 4

(A)

4

x 4

3
