CMA366 Installation Instructions
6
INSTALLATION
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
NOTE: The CMA366 (A) is designed to allow installation of
NPT 1-1/2" pipe to or above a variety of ceiling
structures. The clamp range is up to 2" (51mm) OD or
1.9" (48mm) square tubing.
Assembly and Installation
1. Place two U-clamp brackets (B) over supporting truss or
pipe (ceiling structure).
2. Raise CMA366 adapter (A) to ceiling structure and secure
each U-clamp bracket (B) using two 3/8-16 x 2" bolts (D)
and two 3/8" flat washers (E). (See Figure 1)

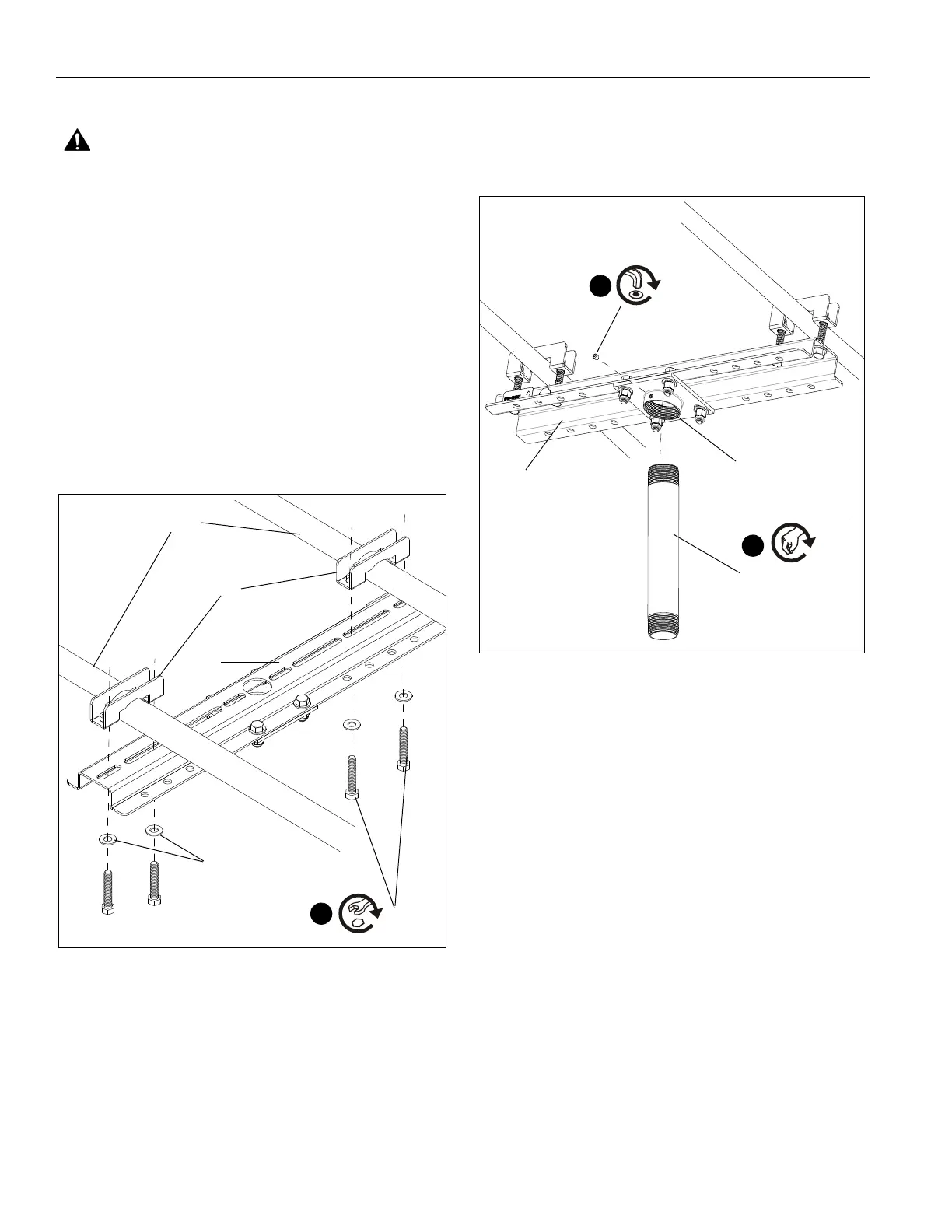

Figure 1
3. Install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1
(Schedule 40, 0.154" minimum thickness steel or aluminum
- ASTM B221) threaded extension column (not included)
into threaded collar on the CMA366 (A) until tight, with a
minimum of four threads engaged. (See Figure 2)
Figure 2
4. Using 3/32" hex key (F) and 10-24 x 1/4" set screw (C),
secure threaded extension column (not included) to
CMA366. (See Figure 2)
(F)
(A)
Ceiling structures
(D) x 4
2
(E) x 4
(B)
(A)
4
(C) x 1
Extension column
3
(View from below)
(not included)
Threaded collar
