Installation Instructions CMA152
3

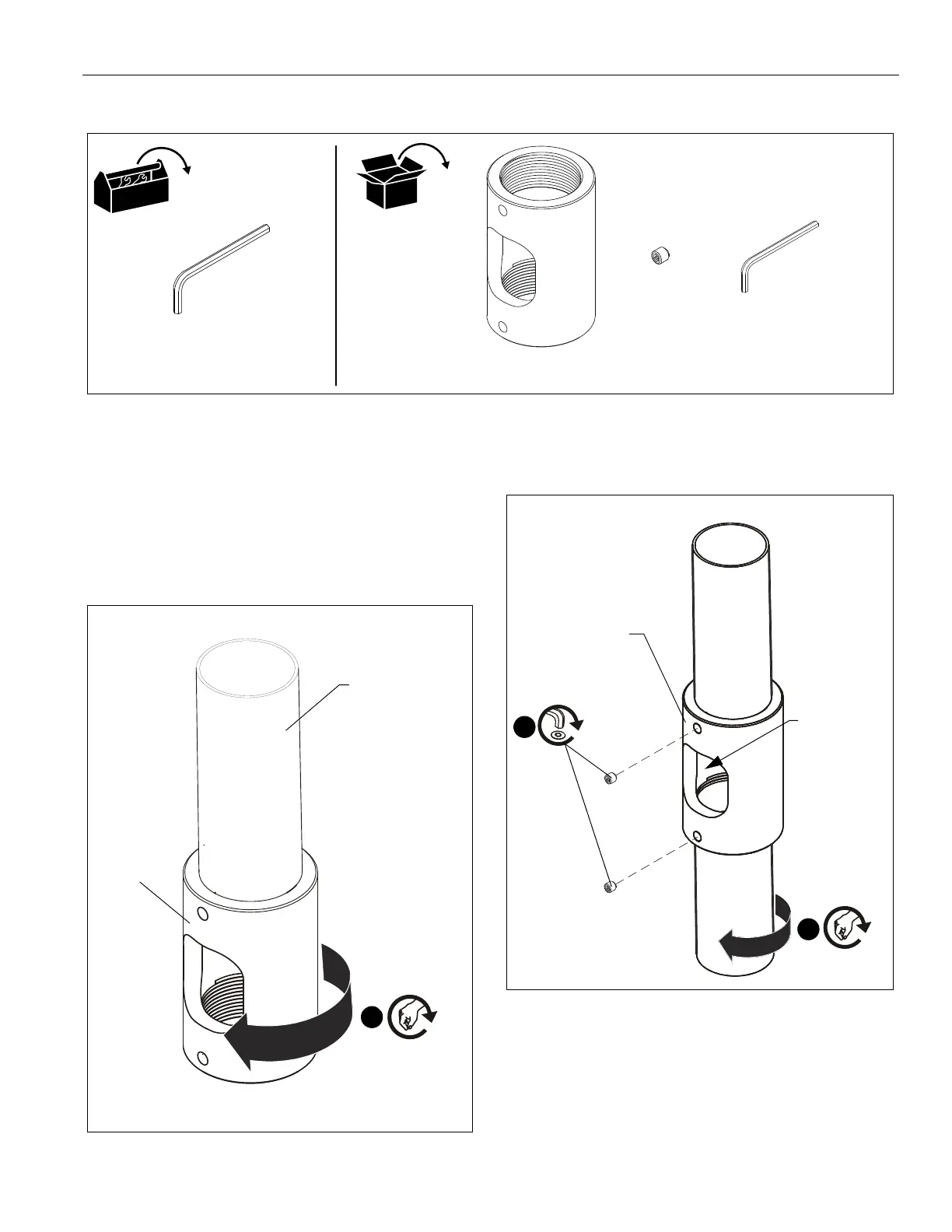

TOOLS / PARTS FOR INSTALLATION
ASSEMBLY AND INSTALLATION
IMPORTANT ! : These installation instructions assume
that a 1-1/2" NPT or NPSM following ANSI/ASME
B1.20.1 (Schedule 40, 0.154" minimum thickness steel or
aluminum - ASTM B221) threaded extension column (not
included) has been properly installed and is in place.
1. Thread CMA152 adapter (A) onto upper 1-1/2" NPT
threaded column (not included) by hand, with a minimum of
four threads engaged. (See Figure 1)
Figure 1
2. Thread lower 1-1/2" NPT threaded column (not included)
into CMA152 adapter (A) by hand, with a minimum of four
threads engaged. Orient cable management access to
desired location. (See Figure 2)
Figure 2
3. Install and tighten two 5/16-18 x 5/16" security set screws
(B) securely. (See Figure 2)
4. Complete the installation following the mount installation
instructions.
5/32" (security) (included)
A (1)
[CMA152 adapter]
B (2)
5/16-18 x 5/16"
C (1)
5/32" (security)
(security)
(A)
1
1-1/2" NPT
column
(not included)
(A)
2
3
(B) x 2
Cable
management
access
