Installation
Location
The appliance has been designed to fit a 550mm gap in kitchen
cabinetry or have free space on either side. Ensure the top of the
hotplate is at least 10mm higher than the level of the benchtop.
Electric hob models must not be installed in a corner; they must be
installed at least 100mm from the side wall.
Gas hob models must be installed with a minimum clearance of
100mm to side walls made of unprotected combustible material.
For gas models, refer to section 6.10.1 in AS/NZS 5601.1 for
all relevant clearance.

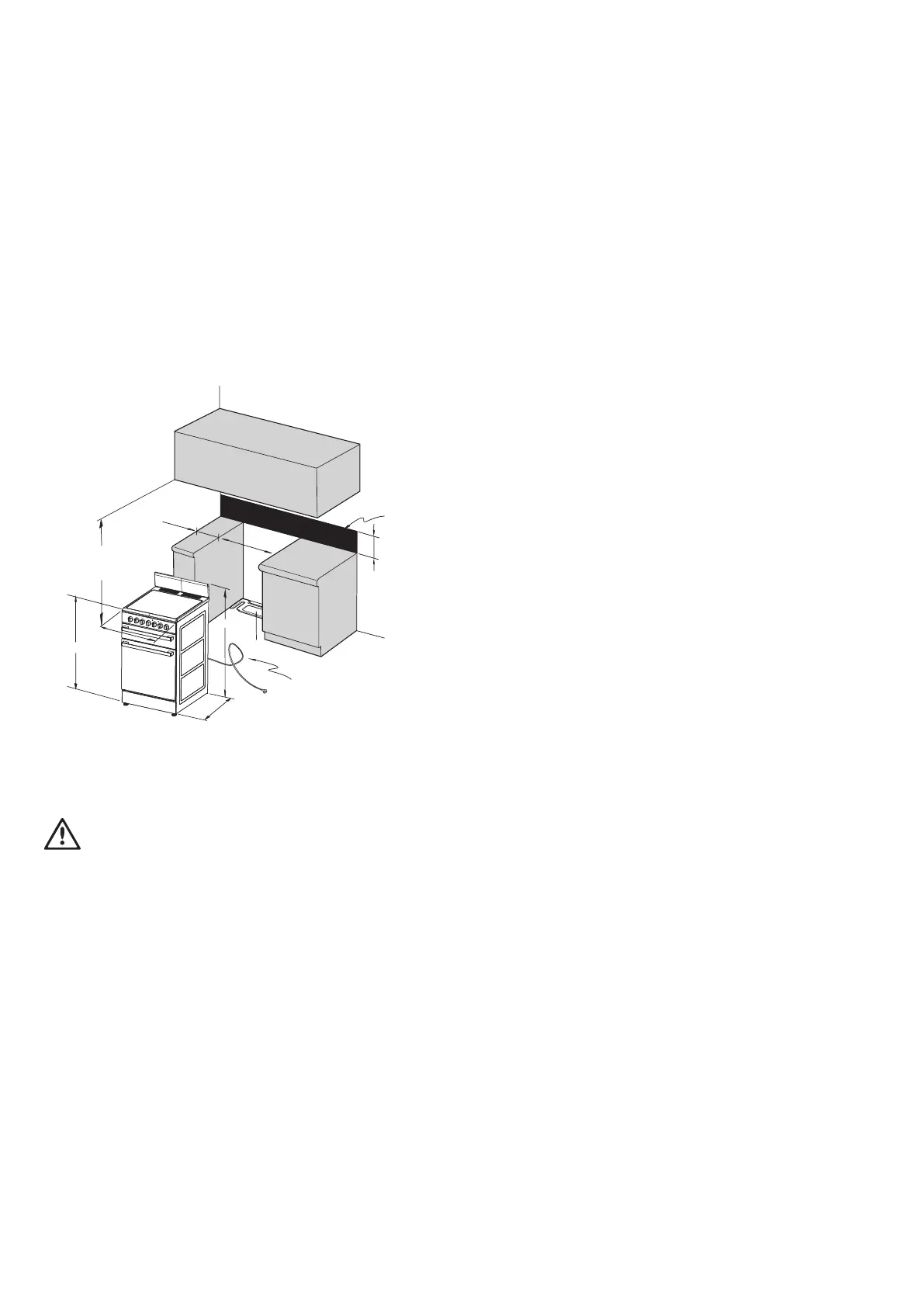

Clearance to side wall
(see notes above)
Note: The splashback
must be fitted.
Ceramic Tiled Area
1.25m
Electrical service
cord (If fitted)
550mm Minimum
Anti-tilt Plate
540mm
910mm
150mm min.
1050mm
WARNING
4 Chef 540 Upright Cooker
WARNING
Overhead clearance
(see notes)
For Gas Models
For existing installations where only the gas appliance is being
replaced:
The overhead clearance from the highest part of the highest
burner or the h
ob of this gas appliance to the range hood shall
be not less than 600mm and not less than 750mm for an
exhaust fan.
Any other downward facing combustible surface less than
600mm above from the highest part of the highest burner of this
gas appliance shall be protected for the full width and depth of
the hob in accordance with AS/NZS 5601.
For all other installations:
The overhead clearance between the supporting surface for the
cooking vessels (top of the trivets) of this gas cooking appliance
and a range hood or exhaust fan (overhead clearance) shall be
not less than 650mm for range hood, and not less than 750mm
for an exhaust fan.
A range hood or exhaust fan shall be installed in accordance
with the range hood or exhaust fan manufacturer`s relevant
instructions.
Any other downward facing combustible surface less than
650mm above the supporting surface for the cooking vessels
shall be protected for the full width and depth of the hob in
accordance with AS/NZS 5601.
Note 1: Removable accessories such as a wok trivet that sits
upon a hob trivet are not taken into account in determination of
the supporting surface for the cooking vessels.
Note 2: Minor elevations in trivets such as a wok trivet formed
into a trivet are not taken into account in determination of the
supporting surface for the cooking vessels.
Note 3: The height of the top of the pan supports (top of the
trivets) with respect to the bench top (built-in) or supporting surface
(elevated) or the floor (freestanding) are detailed separately in
these instructions.
Overhead Clearance
warning
Where the range hood or exhaust fan manufacturer`s relevant
instructions specify a greater clearance, then this greater
clearance shall apply.
Clearance to any overhead surface shall be not less than
450mm.
For Electrical Models
The overhead clearance between the supporting surface of
this appliance and a range hood or exhaust fan shall be not
less than 600mm.
