4. USE
Once the instrument has been congured, it is ready for use.
4.1. CONNECTIONS
When you make connections to live networks, in particular type B current sensors, you must use personal protective equip-
ment.
Current clamps and exible current sensors are used to measure the current owing in a cable without opening the circuit. They
also isolate the user from dangerous voltages present in the circuit.
The choice of the current sensor to use depends on the current to be measured and the diameter of the cables.
When installing current sensors, point the arrow on the sensor towards the load.
When a current sensor is not connected, the instrument displays - - - -.

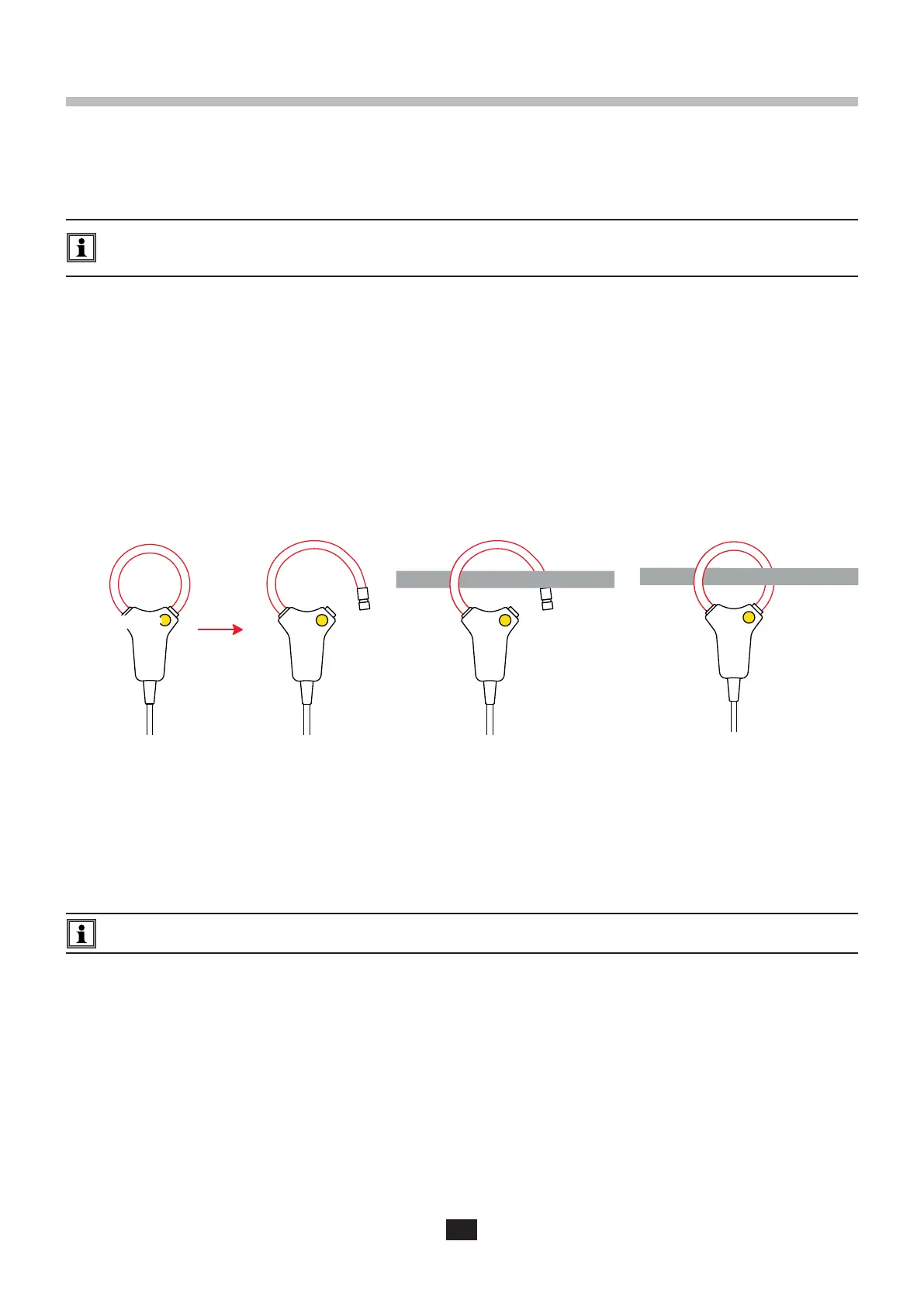

4.1.1. L411
■ Press the sensor opening system.
■ Clamp the cable to be measured. As much as possible, the cable should be centred inside the core.
■ Close the core. A "click" will conrm that it is closed correctly.
Figure 25
To remove the sensor, press the opening system. Remove the sensor from the cable to be measured and then close it again.
4.1.2. L412
■ Connect the rst current sensor to terminal I1.
■ If applicable, connect the second current sensor to terminal I2.
If two current sensors are connected, they must be identical.
■ Press the clamp tab to open the clamp’s jaws.
■ Then clamp the cable to be measured. As much as possible, the cable should be centred inside the clamp jaws.
■ The arrow on the clamp housing should point in the assumed direction of current.
■ Release the tab and make sure that the jaws are properly closed.
