HARMONIC ANALYSER:
The instrument can be used to analyse signals at frequencies between 40 and 450 Hz.
Select the «Harmonic analyser» mode
MAINTENANCE
UPDATING THE INTERNAL SOFTWARE OF THE INSTRUMENT:
Log in to the site http:/www.chauvin-arnoux.com
Under the «Support» heading, select «Download Space»
Download the Firmware corresponding to the model of your instrument using the embedded Metrix «Loader Scope»
oscilloscope software
Also download the operating instructions of this Firmware
Refer to these operating instructions when updating your instrument.
USB/OPTICAL COMMUNICATION:
The dialogue between the instrument and the PC is carried out via the USB/optical link provided by the HX0056-Z
cable.
Connect the USB end of the cable to one of the PC USB ports (if necessary install the driver shipped with the
cable).
Connect the optical connector to the oscilloscope after rst powering it up.
Open SX-METRO or SX-DMM.
Measurement area
Battery info. area

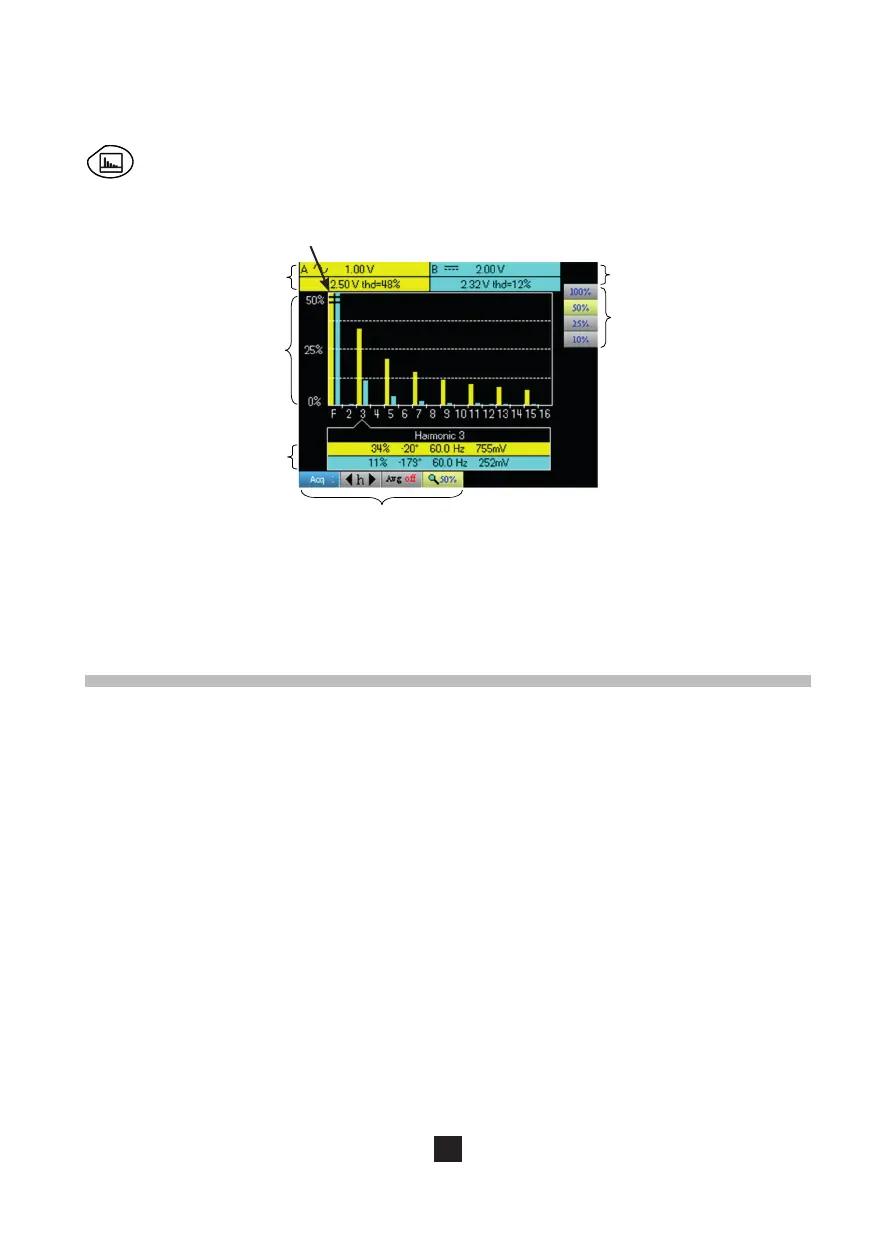

The indication using a double black line on the harmonics corresponds
to the representation of overshooting harmonics.
Main menu area
Secondary menu area
Graphic window area
Harmonic reference area
If no measurement is selected, or if the
channel is not validated, the
measurement will replaced by dots.
