C.A 6681 Cable locater 45

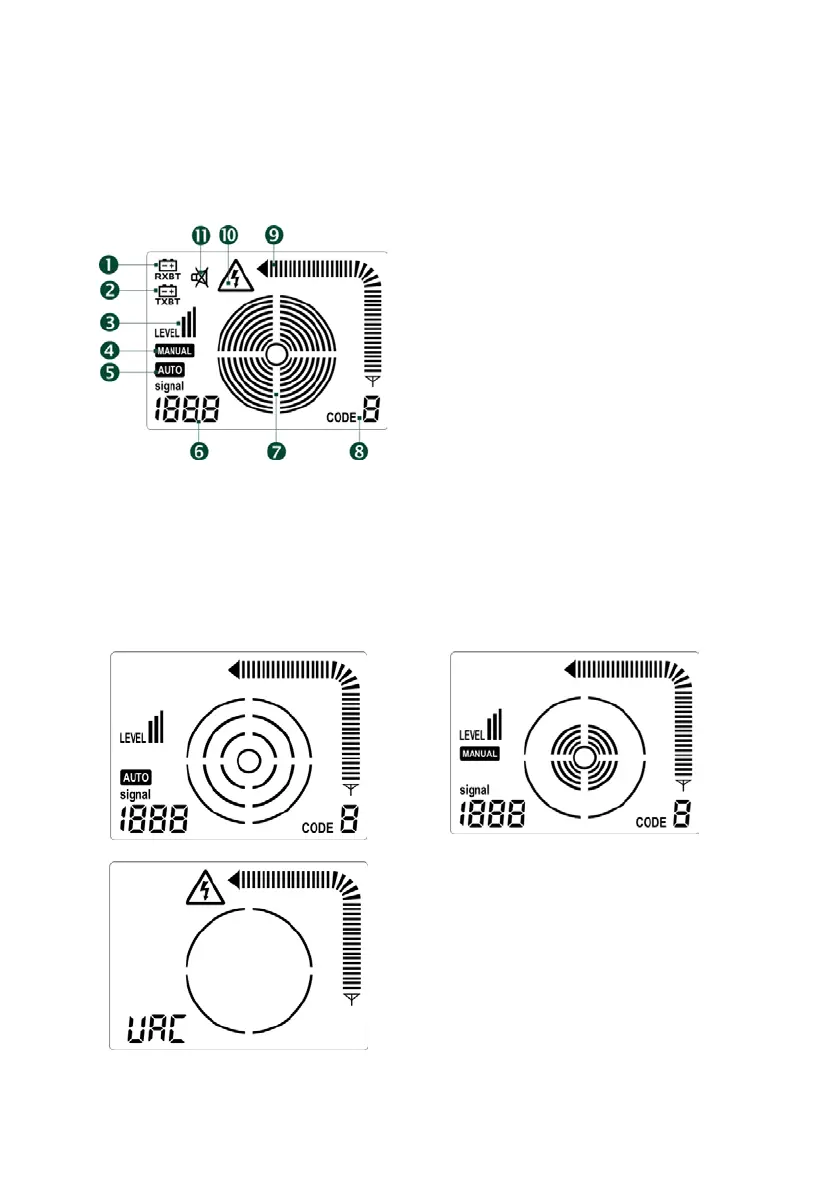

2.2.2 LCD SCREEN
Fig.5
(1) Symbol indicating that the receiver batteries
are dead and must be replaced.
(2) Symbol indicating that the transmitter battery
is dead and must be replaced.
(3) Received signal level (Level I, II, or III).
(4) Manual mode symbol.
(5) Automatic mode symbol.
(6) In automatic mode, this number indicates the
strength of the signal; in manual mode, this
location displays either "SEL", to indicate that
there is no signal, or a value indicating the
strength of the signal; in UAC mode, "UAC" is
displayed.
(7) Conce
ntric circles indicating the preset
sensitivity in graphic form. A large number of
circles indicates high sensitivity, while a small
number indicates a lower sensitivity.
(8) Code received.
(9) Strength of the received signal.
(10) Voltage present symbol.
(11) Silent mode symbol.
2.2.3 EXAMPLES OF DISPLAY IN CABLE DETECTION MODE
(1) Automatic mode
Fig.6
(2) Manual mode
Fig.7
(3) Mains voltage identification mode
Fig.8
