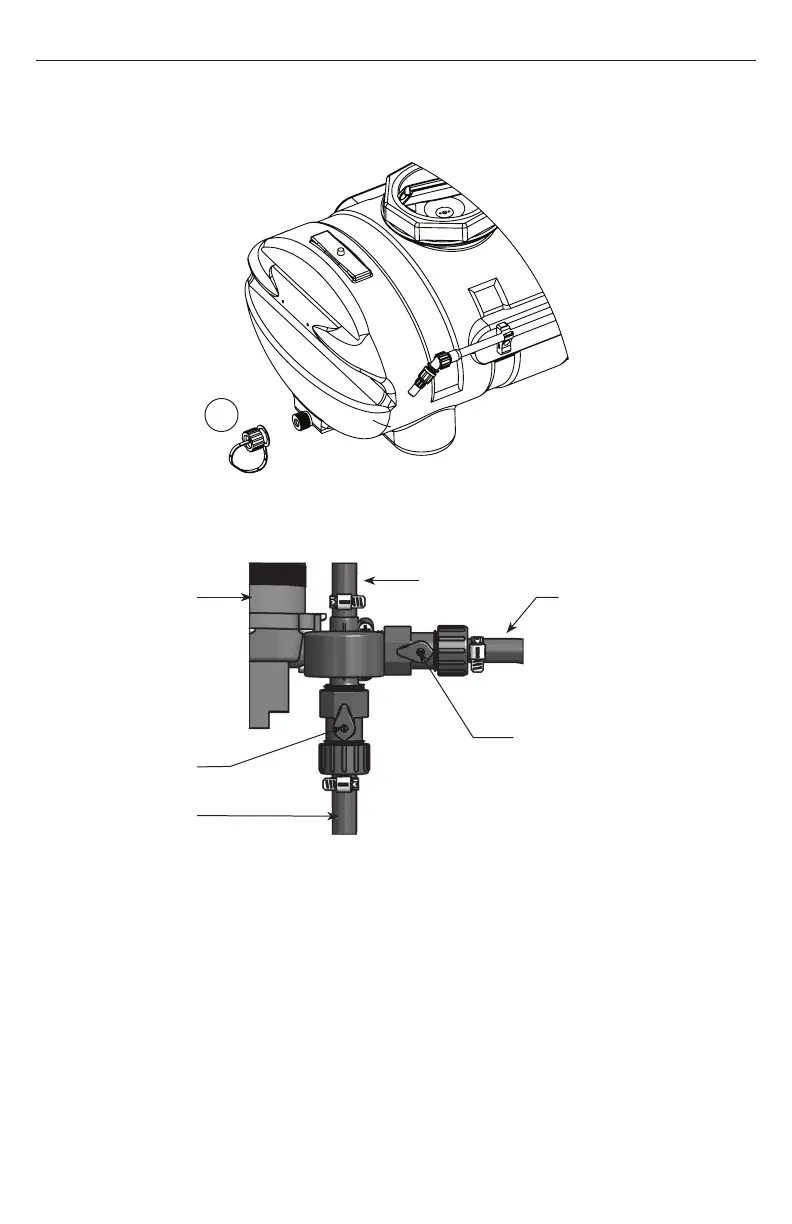

INSTALL DRAIN CAP
Install cap lanyard around drain plug. Screw drain cap (C-5) on drain plug.
C-5
VALVE OPERATION
Relief Hose to
top of tank.
Pump
Bypass Valve
This lever adjusts the system
pressure by relieving liquid
back to the tank. Adjusting
this lever will increase or
decrease pressure to the
Spray Wand or the Spray
Boom.
To Spray Wand
Spray Boom On/
Off Switch
To Spray Boom
(if equipped)
Chapin Spot Sprayer Operator’s Manual - English
4E
OPERATION
The pumping system draws solution from the tank, through the strainer and to the pump.
The pump forces the solution under pressure to the spray wand.
The pump has a pressure switch which will shut the pump off when it reaches 60 PSI.
Regularly inspect the suction supply screen on the inside of the tank. Flush with water
to clear any accumulated debris.
