3E
Chapin Spot Sprayer Operator’s Manual - English

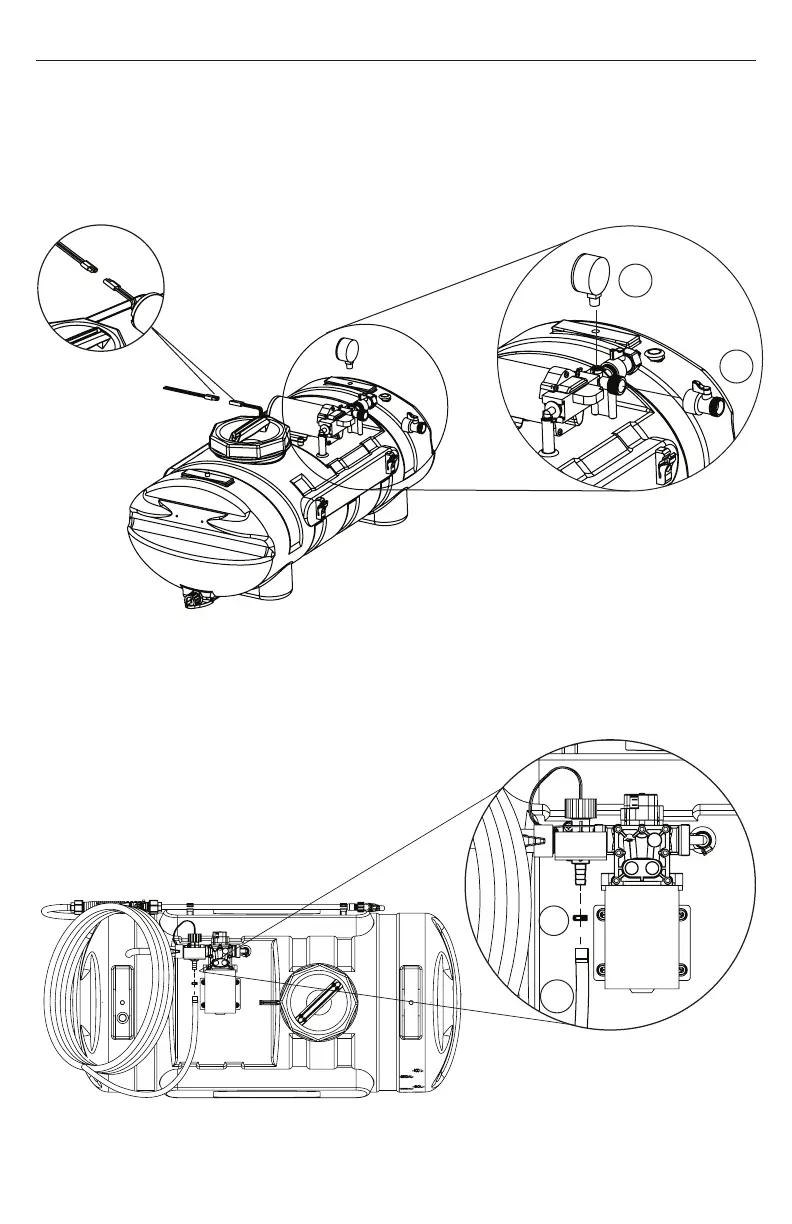

PRESSURE GAUGE & BALL VALVE ASSEMBLY
Install pressure gauge (C-1) and ball valve (C-2) to output manifold as shown. Insert lead
wire assembly into plug at rear of pump. Join red wire of the lead wire to a +12V source
on the garden tractor. The black wire should be grounded or connected to the negative
battery post.
C-1
C-2
WAND TUBING TO MANIFOLD
Install wand tubing (C-7) to manifold as
shown using supplied hose clamp (C-3).
NOTE: Do not over-tighten
pressure gauge.
C-3
C-7
