OPERATION
The pumping system draws solution from the tank, through the strainer and to the pump.
The pump forces the solution under pressure to the spray wand.
The pump has a pressure switch which will shut the pump off when it reaches 60 PSI.
Regularly inspect the suction supply screen on the inside of the tank. Flush with water
to clear any accumulated debris.
Suggested Tools:
Allen wrench
Assembly Instructions
Chapin Spot Sprayer Operator’s Manual - English
5E

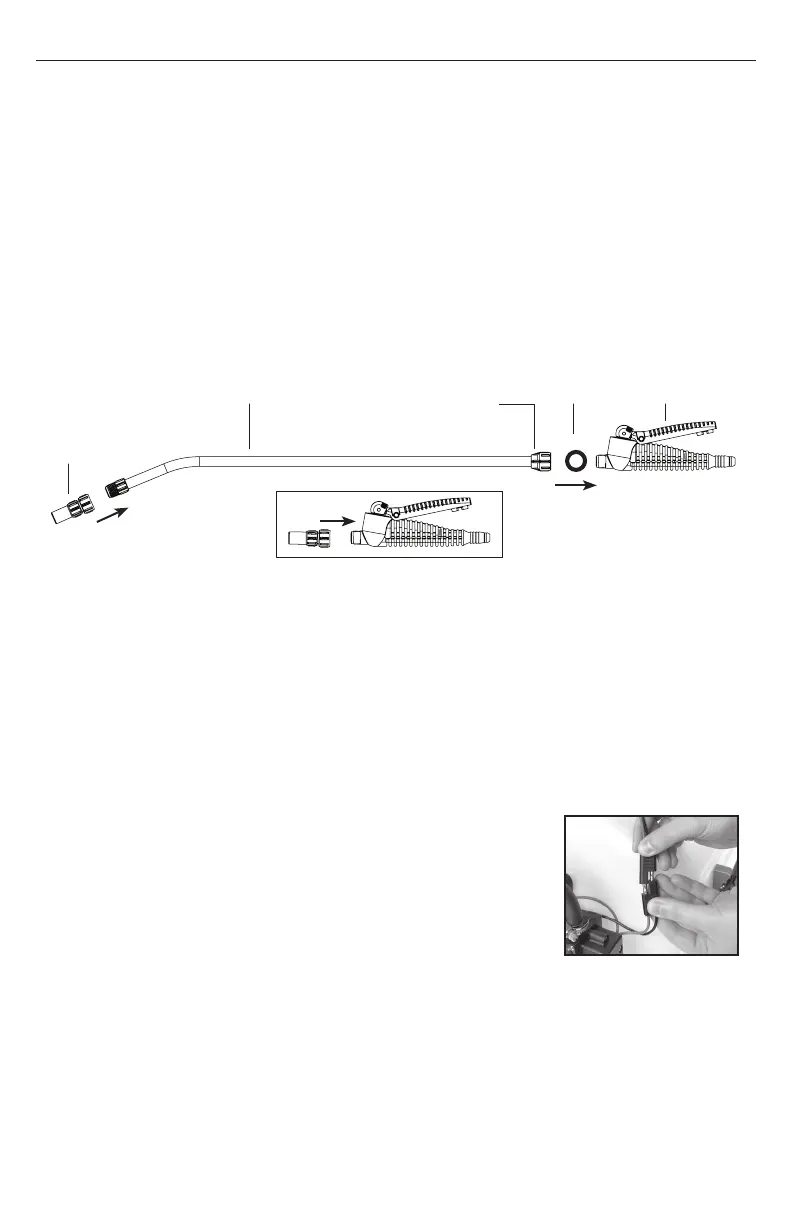

NOZZLE/WAND ASSEMBLY
Attach nozzle to shut-off valve or extension wand.
Screw nozzle assembly onto male threaded end of the extension wand.
Screw female threaded end of extension wand onto shut-off assembly. Tighten
retaining nut securely.
IMPORTANT NOTE: Connect the pump to either the battery
tray converter or the supplied wiring harness.
Connect the wiring harness only to a 12V battery.
Connecting to a different voltage will damage the pump.
Wand O-ring
Shut-O valve
Retaining Nut
Nozzle
Connecng SAE connectors
