INSTALLING THE SHOULDER STRAP
The top of the shoulder straps are attached to the tank.
Attach the lower end of the straps by clipping the strap hooks to the
metal frame between where the frame exits the tank and curves
around.

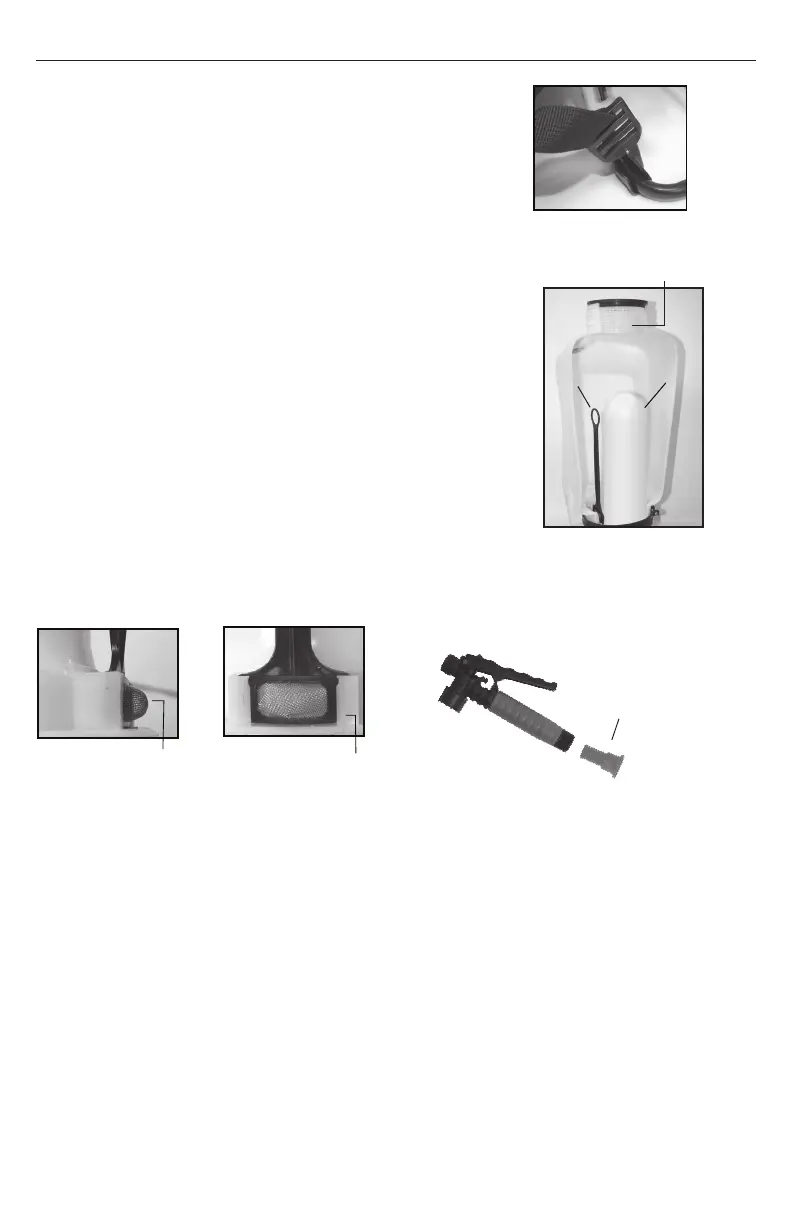

Figure 1
Stage 1
(Filter basket)
3 STAGE FILTERING SYSTEM
This backpack sprayer is equipped with a 3 stage filtering system (see
figure 1). Stage 1 is a filter basket incorporated into the tank opening
where fluid is added. Stage 2 filter is located at the inlet of the pump
housing. Stage 2 is a removable In-tank filter. Stage 3 is a removable filter
incorporated into the shut-off assembly. Periodic cleaning of these filters is
recommended to insure consistent fluid flow through the sprayer. This will
also reduce sprayer component wear.
The stage 3 filter is a removable filter incorporated into the inlet side of
the shut-off valve (see section “disassembling and repairing the shut-off
valve”). Make sure pump switch is off and pressure is released before
detaching the hose from the shut-off.
Stage 2
(Removable
In-Tank Filter
Pump
Housing
Stage 3
(removable
Shut-off filter)
Figure 2 Stage 2 (removable In-tank filter)
Guide edge facing away
from pressure cylinder
Guide edge on
pressure cylinder
Chapin Backpack Sprayer Operator’s Manual - English
FILLING THE SPRAYER
Make sure the filter basket is in place to keep debris from entering the tank.
Determine the amount of mixture needed for your application. Add the proper amount of water to the tank. Add
the proper amount of chemical to the tank (check the chemical label for proper ratio of chemical). Stir mixture in
tank with a clean utensil (like a paint stirrer). The tank will hold the 4-gallon (15.1L) capacity plus the chemical.
It is not necessary to completely fill the sprayer tank with each use. You can fill the tank with only the amount
needed for each application.
Always follow the manufacturer’s instructions included on their product label.
