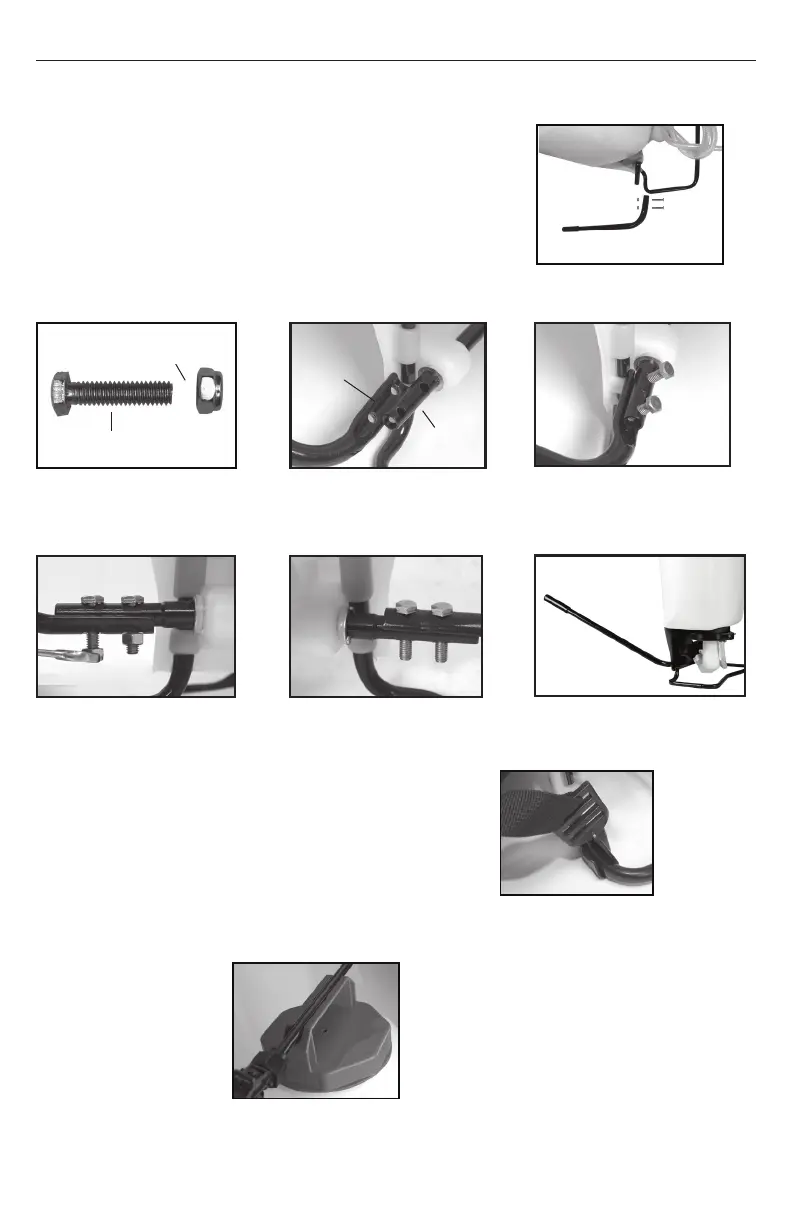

3E
WAND HOLDER
The wand easily snaps into
handle.
Figure 1 Figure 2
Line up holes
Figure 3
Slide bolts through holes
Figure 5
Right Hand
Figure 4
Tighten nut to bolt
Threaded Bolt
Nylon Lock Nut
A. Pump Shaft
B. Bolts
C. Pump Handle
D. Nuts
Pump
Handle
Pump
Shaft
Completed Assembly
INSTALLING THE PUMP HANDLE
The pump handle can be mounted on either side of the pump shaft (A). To
install the pump handle place the handle (C) over the shaft (A) aligning the
pump handle holes and shaft holes. Slide the bolts (B) through the aligned
holes as shown in figure 3. Tighten nuts (D) to bolts. There are holes in the
pump handle to allow for either left (fig.2-4) or right (fig.5) hand mounting.
INSTALLING THE SHOULDER STRAP
The top of the shoulder straps are attached to the tank.
Attach the lower end of the straps by clipping the strap hooks to the
metal frame between where the frame exits the tank and curves
around.
