2E
O-ring
Wand
Retaining
Nut
Shut-off
Valve

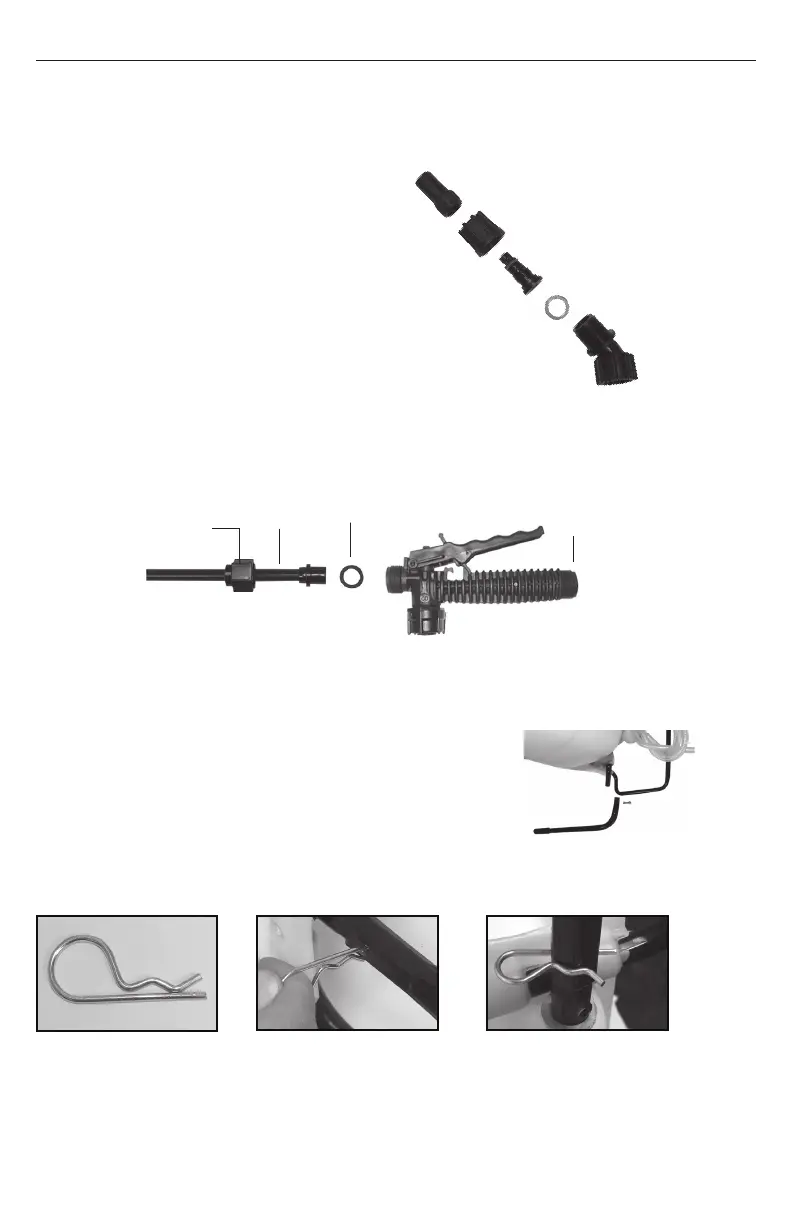

INSTALLING THE PUMP HANDLE
The pump handle can be mounted on either side of the pump shaft
(A). To install the pump handle place the handle (C) over the shaft (A)
aligning the pump handle hole and shaft hole. Push the straight side of
the R-clip (B) through the aligned hole as shown in figure 1 thru 3.
Figure 2
Line up holes
Figure 3
Slide clip through holes
Figure 1
R Clip
WAND ASSEMBLY
1. Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
2. Turn and tighten the retaining nut clock-wise onto the shut-off valve.
1. Poly
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
Figure 1
NOZZLE ASSEMBLY
Figure 1
Unscrew the nozzle cap (1) from the nozzle body
(3) with retaining nut (2) fastened tightly to the
elbow (5). Unscrew the retaining nut (2). Push
the nozzle body (3) with the nozzle gasket (4) out
of the retaining nut (2). To reinstall the nozzle,
reverse the above instructions.
Chapin Backpack Sprayer Operator’s Manual - English
SPRAYER COMPONENTS & USE INFORMATION
A. Pump
Shaft
B. R Clip
C. Pump Handle
