7E
STORING / MAINTAINING YOUR SPRAYER
• The sprayer should be stored out of direct sunlight in a cool dry space.
• Before freezing weather make sure to drain all liquid in the tank, pump, hose,
shut-off valve, wand and nozzle, to avoid liquid expansion and cracking in the sprayer components
(See “Cleaning” section). Lock the shut-off valve in the “open” position.
• When service is required call your nearest dealer and always insist on original manufactured
replacement parts.
• Inspect the hose, wand, tank and shut-off valve for wear, damage or leaks on a regular basis
and repair defects promptly.

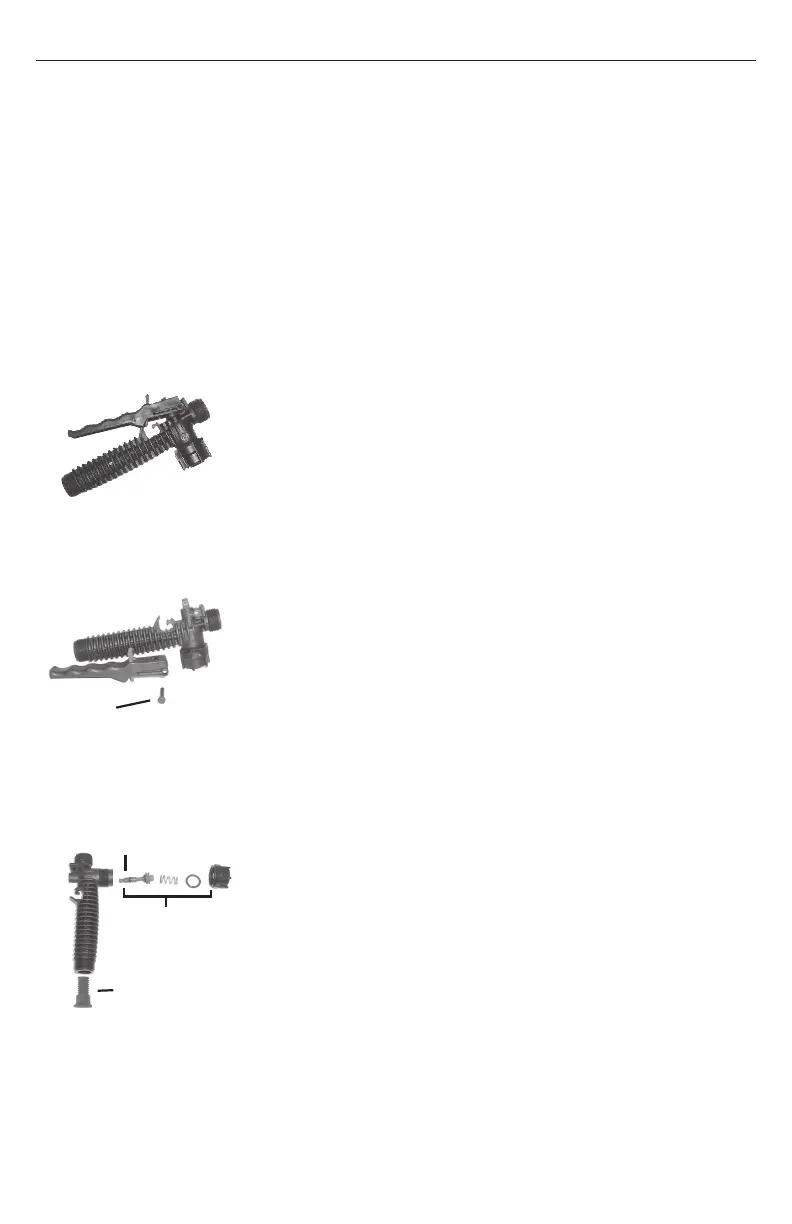

DISASSEMBLING AND REPAIRING THE SHUT OFF VALVE
1. Assembled shut-off valve Figure 1.
2. Remove the retaining pin (A) Figure 2 by placing the notched end
of the retaining pin on a hard surface and push down. Remove the
retaining pin and slide the handle off the valve.
3. Remove the retaining nut (o-ring attached), spring, and valve stem (B)
Figure 3. Replace worn parts. Lubricate the O-rings and reassemble by
reversing the steps above. Place the handle groove in the slotted area of
the valve stem and make sure the locking clip is positioned in the neutral
position (see “Helpful Spraying Information” section). Insert the retaining
pin. Push down on the handle a few times to distribute the lubricant
evenly. Check filter (C) in end of shut-off valve for debris. Remove filter
and flush with water to clean out.
Figure 3
C
Figure 1
Figure 2
A
B
Valve
Stem
Chapin Backpack Sprayer Operator’s Manual - English
