5E
Figure 1
Stage 1
Filter basket

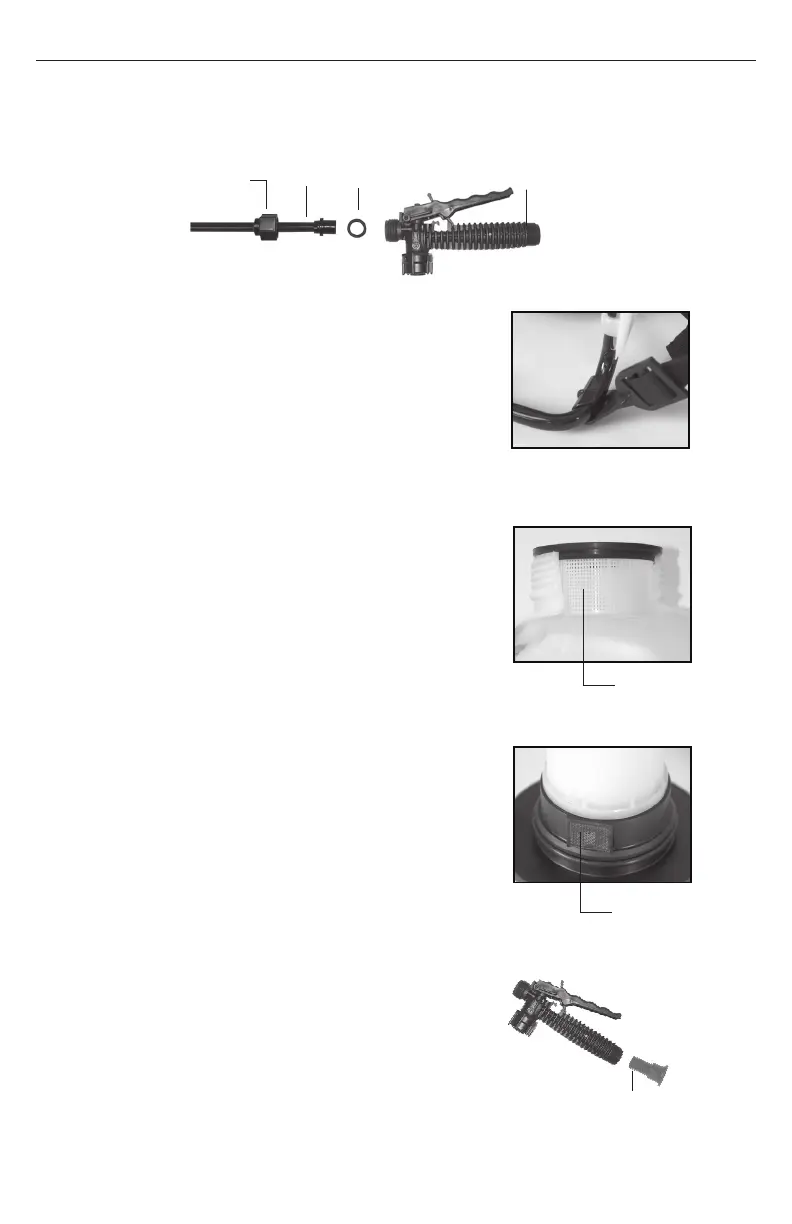

3 STAGE FILTERING SYSTEM
This backpack sprayer is equipped with a 3 stage filtering system
(Figure 1-3). Stage 1 is a filter basket incorporated into the tank
opening where fluid is added. Stage 2 is a filter integrated into
the pressure chamber. Stage 3 is a removable filter incorporated
into the shut-off assembly. Periodic cleaning of these filters is
recommended to ensure consistent fluid flow through the sprayer.
This will also reduce sprayer component wear.
To clean the stage 2 filter, point a heavy stream of water towards
the filter to flush debris free. Turn tank upside down to empty water
and debris. Repeat as necessary. If you are unable to remove the
debris, removal of the entire pump assembly may be required.
Please call Chapin customer service at 1-800-950-4458.
The stage 3 filter is a removable filter incorporated into the
inlet side of the shut-off valve (see section “Disassembling and
Repairing the Shut-off Valve”) . Make sure pressure is released
before detaching the hose from the shut-off.
Figure 2
Stage 2
Pressure Chamber
Filter
Figure 3
Stage 3
Removable Shut-off
Filter
WAND ASSEMBLY
1. Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
2. Turn and tighten the retaining nut clock-wise onto the shut-off valve.
O-ringWand
Retaining
Nut
Shut-off
Valve
Chapin Backpack Sprayer Operator’s Manual - English
The top of the shoulder straps are attached to the tank.
Attach the lower end of the straps by clipping the strap hooks
to the metal frame between where the frame exits the tank and
curves around.
INSTALLING THE SHOULDER STRAP
