INSTALLATIONINSTALLATION
The standard dishwasher is equipped with a fused signal connection for an external
vent fan contactor (supplied by others).
To connect the external vent fan contactor:
1. Disconnect all power to the machine.
2. Remove the top cover panel and locate the three fuse blocks on the machine base.
3. Connect one wire of the external vent fan contactor to the FAN SIGNAL fuse block.
4. Connect the other wire to a COMMON NEUTRAL terminal (see Fig. 25).
5. Connect the external vent fan contactor coil wires.
6. Re-install the top cover panels.
7. Restore power to the machine.
VENT FAN CONTROL SUPPLIED BY OTHERS
(section end)
CAUTION
The 120VAC signal is limited to a 1.0 AMP maximum load.
Do not connect a vent fan motor to the signal connection terminals.
NOTE
The 120VAC signal is available whenever the dishwasher green power switch is ON.

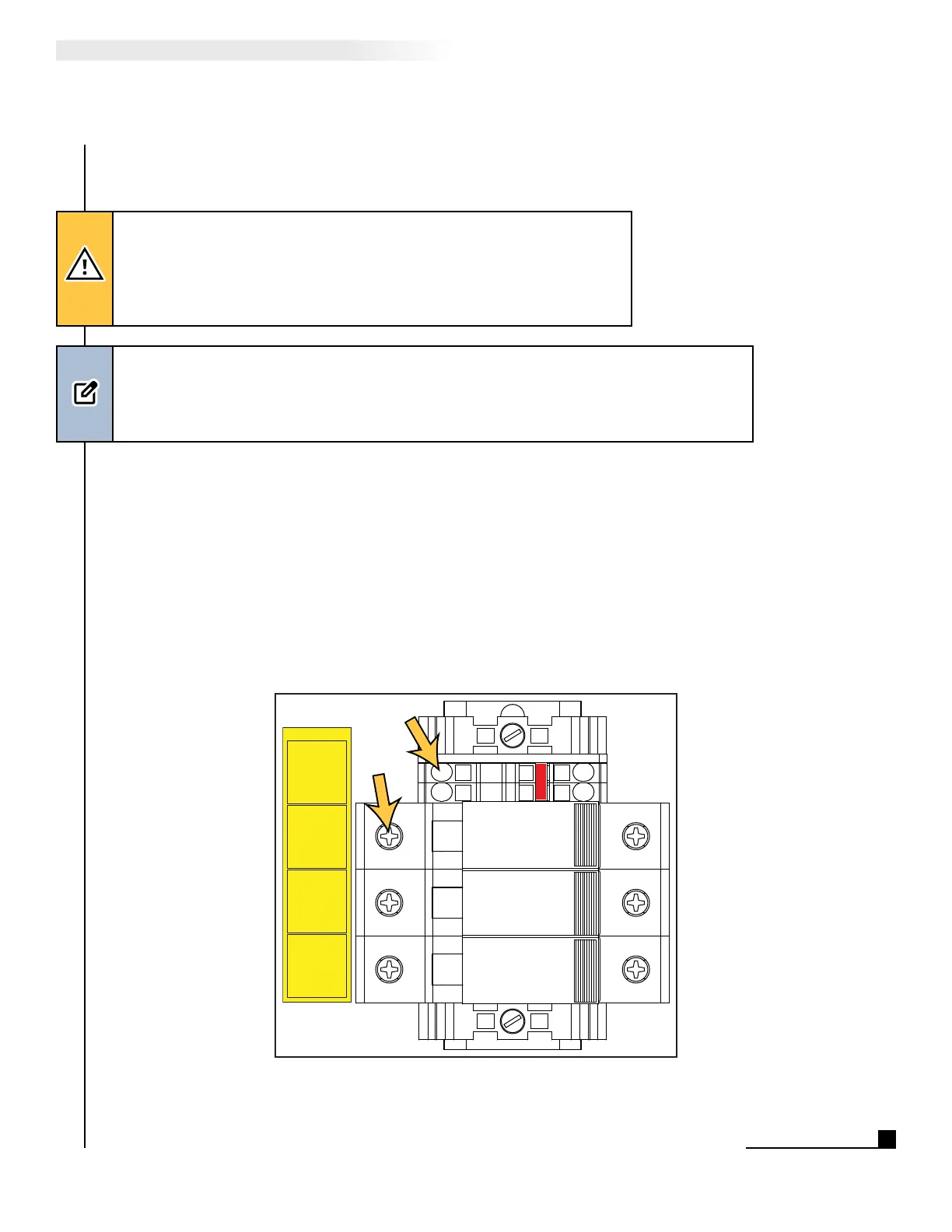

Fig. 25 - Vent fan signal connection
120VAC
1.0 AMP
MAX.
COMMON
NEUTRAL
120VAC
120VAC
2.0 AMP
MAX.
120VAC
2.0 AMP
MAX.
FAN
SIGNAL
RINSE AID
SIGNAL
DETERGENT
SIGNAL
SIGNAL ONLY
24
