Installation
STEAM
STEAM CONSUMPTION
STEAM CONNECTION - (STANDARD or HR ONLY)
• CHECK THE STEAM SUPPLY PRESSURE REQUIREMENTS PRIOR TO CONNECTING THE
STEAM SUPPLY LINE.
• TANK HEAT - LBS./HR. REQUIRED AT 15 PSI = 125 LBS./HR.
• STEAM BOOSTER - LBS./HR. REQUIRED 70ºF/21.1ºC @ 15 PSI = 110 LBS./HR.
• WATER HARDNESS OF 3 GRAINS/US GAL - 0.83 IMP GAL - 5.3 MG/L or LESS
• CHECK THE STEAM SUPPLY PRESSURE REQUIREMENTS PRIOR TO CONNECTING THE
STEAM SUPPLY LINE.
• 1" NPT SUPPLY LINE FOR WASH TANK 3/4" SUPPLY LINE FOR BOOSTER.
• STEAM CONNECTION IS LOCATED ON THE SIDE OF THE MACHINE.
• STEAM CONDENSATE LINE IS 3/4" NPT FOR MACHINE, 1/2" NPT FOR BOOSTER.
• CONDENSATE LINES MUST BE GRAVITY DRAIN WITH NO BACK PRESSURE. A
CONDENSATE LIFT PUMP MAY BE REQUIRED IF LINE IS ABOVE THE BASE OF THE
MACHINE.

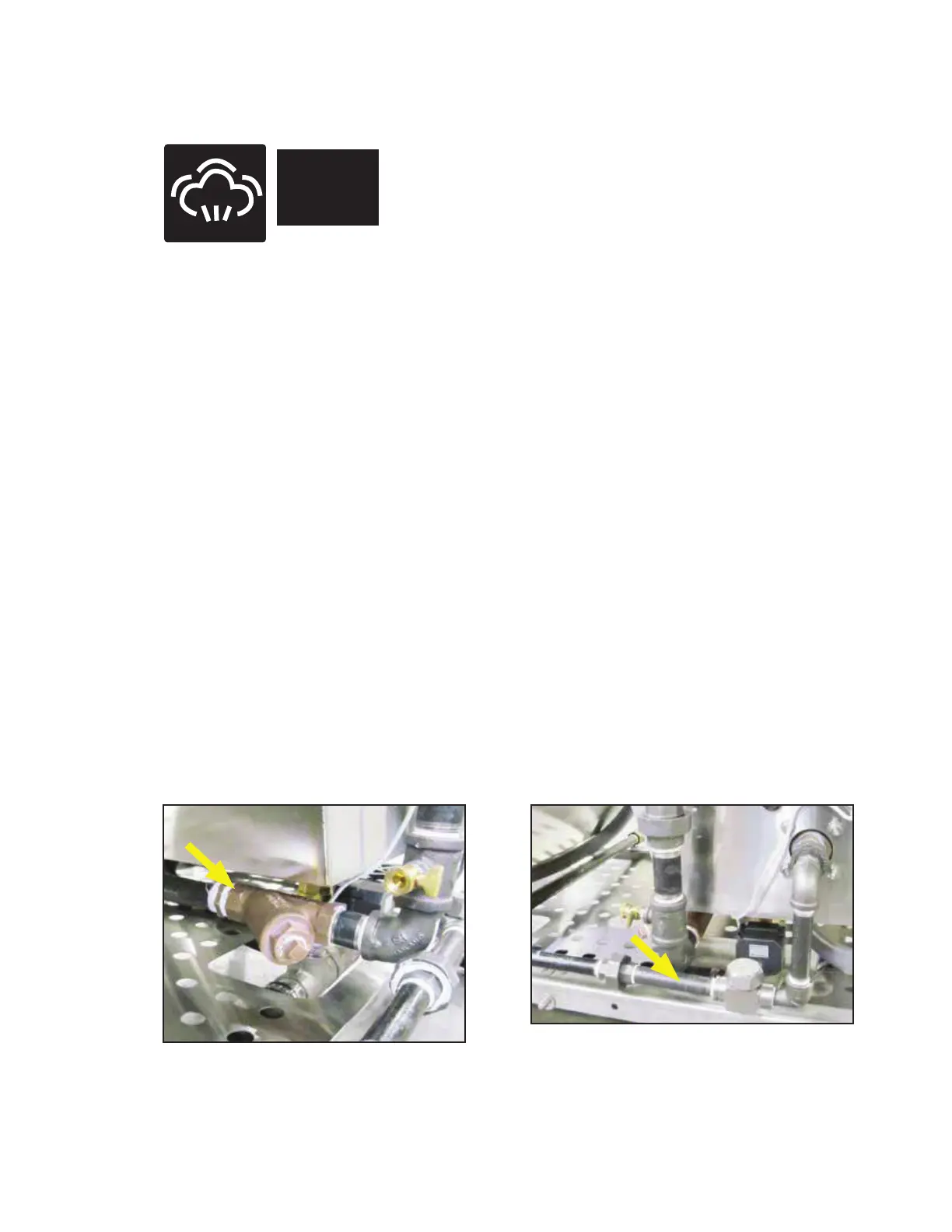

Fig. 10 - Steam inlet.
Fig. 11 - Condensate return.
