3
Installation
1. The load end table must slope away from the dishwasher to prevent water from
entering the machine. The unload table should slope toward the machine to prevent
water from pooling on the exit table.
2. The dish rack must not hit the end of the table as it enters or exits the machine.
Adjust the table until the track height of the machine is approximately 1/4" above the
table edge.
3. Set the tables inside the machine making sure the table flange fits against the wash
tank wall. Attach the tables to the machine applying a silicone sealant to the mating
surfaces. See Fig. 4.
Table Connections
NOTE:
Tables should be installed after the machine is placed in its final location, properly
leveled and its height properly adjusted. The standard load height for the dishwasher
is 34" [864 mm].
Up to 10"
7-1/2"
21-1/2"
Flange Max
22"
Opening
31"
Overall
Width
1-1/2"
Curb
Flange Detail
8"
1/4"
1/4"
1/8" Min
1-1/8"

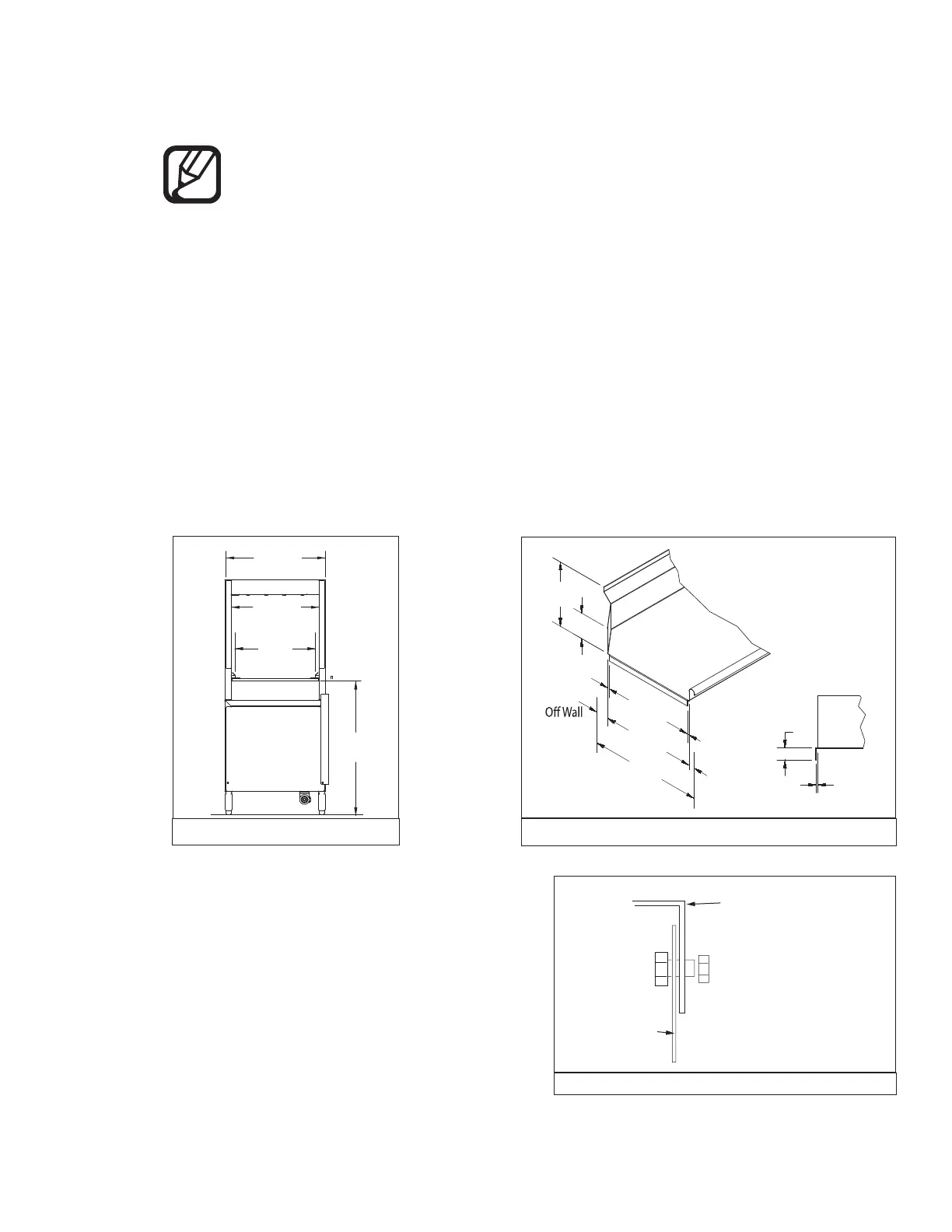

Fig. 3 - Suggested Table Construction
21-3/4" [552]
Opening
25" [635]
Machine Width
20" [508]
Inside Track
34" [864]
Load Ht.
Fig. 2 - Load Height
Wash Tank
Dish table flange
Drill holes,
apply sealant,
fasten to wash tank
Fig. 4 - Attaching the Tables
When installing the dish tables:
