11008 - 10,000 LB. WINCH
OPERATION
11
Short pulls from an angle can be used to straighten the
vehicle. Long pulls should be done with the wire rope at
a 90° angle to the winch/vehicle. When pulling a heavy
load, place a blanket or jacket over the wire rope 5-6 ft.
(1.5-1.8 m) from the hook.
In the event of a broken cable it will dampen the snap
back. For additional protection open the hood of the
vehicle. For pulls over 50%, we recommend the use of
the snatch block/pulley block to double line the wire rope.
This reduces the load on the winch and the strain on the
rope by approximately 50%.
Winching Techniques A-Z
A. Take time to assess your situation and plan your pull.
B. Put on gloves to protect your hands.
C. Disengage the clutch to allow free-spooling and also
save battery power.
D. Attach the hook strap to the clevis hook.
E. Pull out the wire rope to your desired anchor point
using the hook strap.
F. Secure the clevis hook to the anchor point: Sling,
chain or snatch block. Do not attach the hook back
onto the wire rope.
G. Engage the clutch.
H. Connect the remote control to the winch. If you are
going to control the winch from inside your vehicle
then pass the remote through an open window to
avoid the wires being pinched in the door.
I. Start your engine to ensure power is being
replenished to the battery.
J. Power in the wire rope guiding the wire under
tension to draw up the slack in the wire. Once the
wire is under tension, stand clear. Never step over
the wire rope.
K. Double check your anchors and make sure all
connections are secure.
L. Inspect the wire rope. Make sure there are at least 5
wraps of wire rope around the winch drum.
M. Drape a blanket or jacket over the wire rope
approximately 5-6 ft. (1.5-1.8 m) from the hook.
Open the hood for added protection.
N. Clear the area. Make sure all spectators stand clear
and that no one is directly in front or behind the
vehicle or anchor point.
O. Begin winching. Be sure that the wire rope is
winding evenly and tightly around the drum.
The vehicle that is being winched can be slowly
driven to add assistance to the winching process.
Avoid shock loads; keep the wire rope under tension.
P. The vehicle to be winched should be placed in
neutral and the emergency brake released. Only
release the brake pedal when under full tension.
Avoid shock loads to the winch. This can damage the
winch, rope and vehicle.
Q. The winch is meant for intermittent use. Under full
load with a single line rig do not power in for more
than a minute without letting the motor cool down
for a few minutes and then resume the winching
operation.
R. The winching operation is complete once the vehicle
is on stable ground and is able to drive under its own
power.
S. Secure the vehicle. Be sure to set the brakes and
place the vehicle in park.
T. Release the tension on the wire rope. The winch
is not meant to hold the vehicle for long periods of
time.
U. Disconnect the wire rope from the anchor.
V. Rewind the wire rope. Make sure that any wire
already on the drum has spooled tightly and neatly.
If not, draw out the wire and re-spool from the point
where the rope is tight.

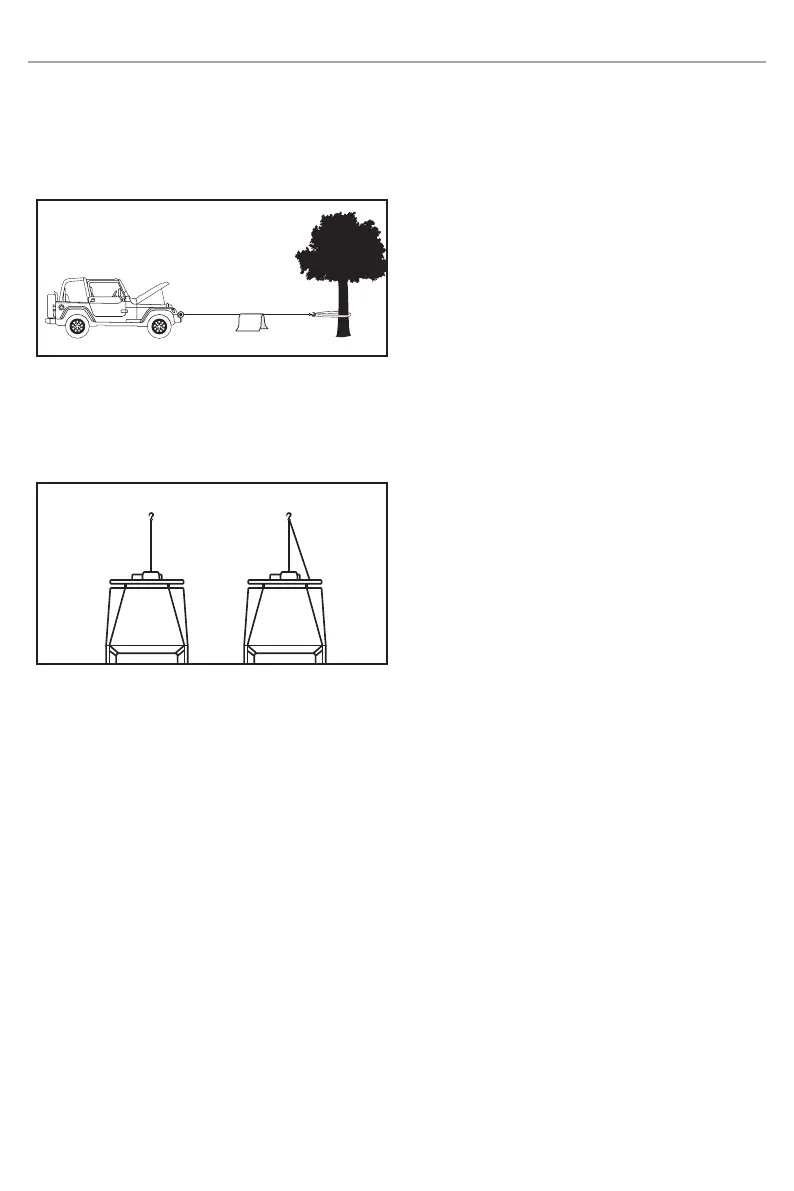

Single Line Double Line
