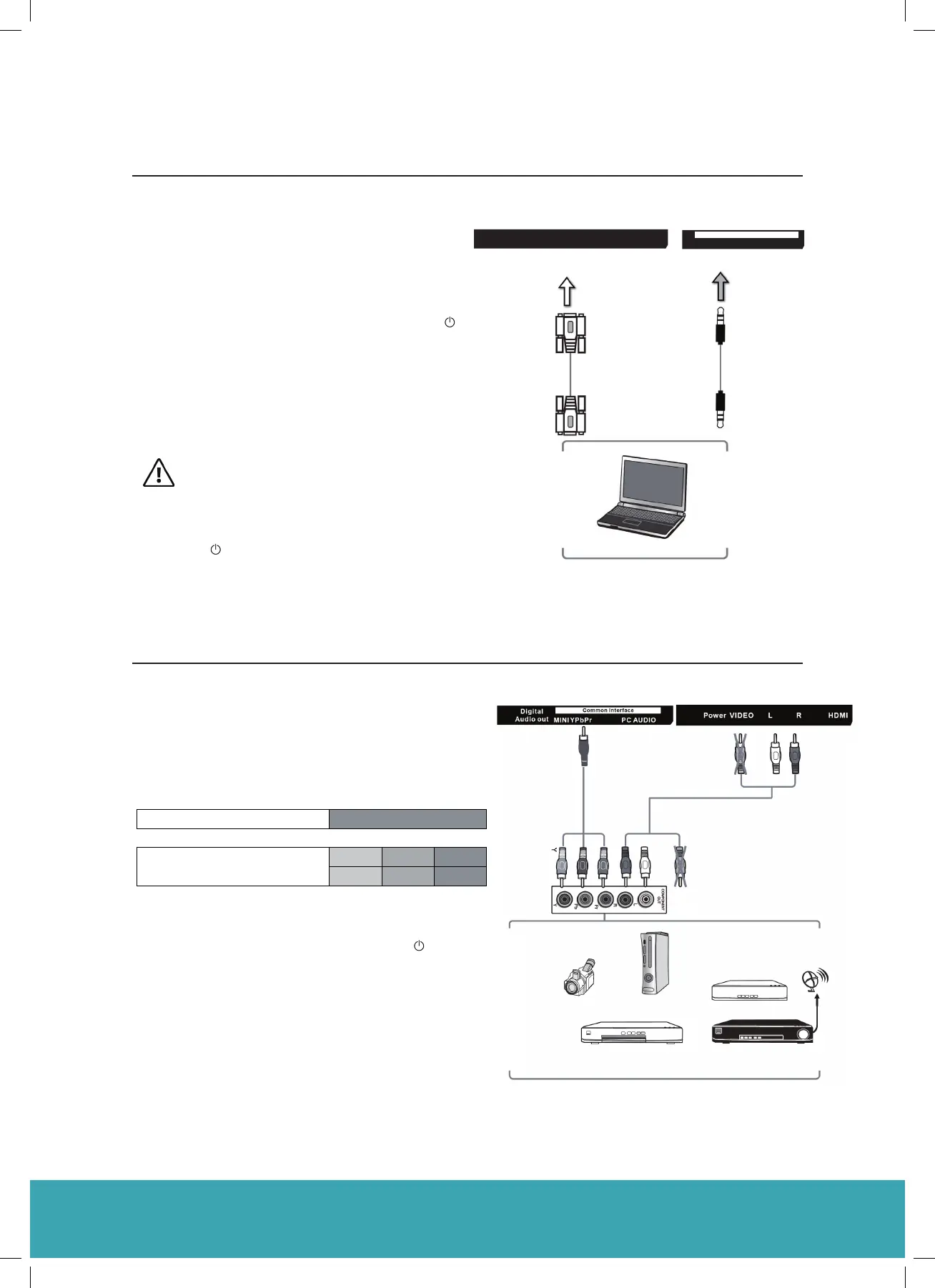

Connecting a Computer with a VGA Cable
Connecting to an AV Device with a Component
(YPbPr) Cable
1. Use a VGA cable to connect the TV’s PC input
socket to a computer’s VGA output socket. Use
an audio cable to connect the TV’s PC AUDIO
input socket to the computer’s audio output
socket.
2. Plug the connected devices into the main
socket.
3. Press the STANDBY button on the TV or the
button on the remote control.
4. Press the SOURCE button on the TV or the
SOURCE button on the remote control to
display the Source List. Use the ▲▼ buttons
to select PC and then press the OK button to
ocnfirm.
9
L R HDMI VGA
MINI YPbPr
Comm on Interface
PC AUDIO
L R HDMIVIDEO
Power
MINI YPbPr
Common Interface
PC AUDIO
Digital
Audio out
Rear View of TV
VGA Cable
(not included)
Audio Cable
(not included)
Computer
• The best resolution is 1920 x 1080.
• If your compuetr is set to shut down after a few
minutes of the idle mode, the TV will also switch
to standby due to no signal being received, this is
to save energy. Press the STANDBY button at the
right side of the TV when viewed from the front or
the button on the remote control to restart the TV.
1. Use a component cable to connect the TV’s Mini YPbPr
input sockets to an external AV device’s component output
sockets.
2. Use an AV cable to connect the TV’s Mini AV input sockets
to the external AV device’s component audio output sock-
ets. (Audio Left = white, Audio Right = red)
3. Plug the connected devices into the main socket.
4. Press the STANDBY button on the TV or the button on
the remote control.
5.
6. Press the SOURCE button on the TV or the SOURCE
button on the remote control to display the Source List.
Use the
▲▼ buttons to select YPbPr and then Press the
OK button to confirm.
Component port of the TV
Video output ports on DVD
Player
Mini YPbPr
Y Pb Pr
Y Cb Cr
Rear View of TV
Component Cable
(not included)
AV Cable
(not included)
Video Camera Game Console
Set-top Box
Satellite
Antenna
cable
Satellite Receiver
Blu-ray Player/DVD
Player/Recorder
Yellow (Video)
White (L)
White (L)
Red (R)
Pr/Cr
Pb/Cb
Red (R)
Yellow (Video)
C1624FS Instruction Book
9
