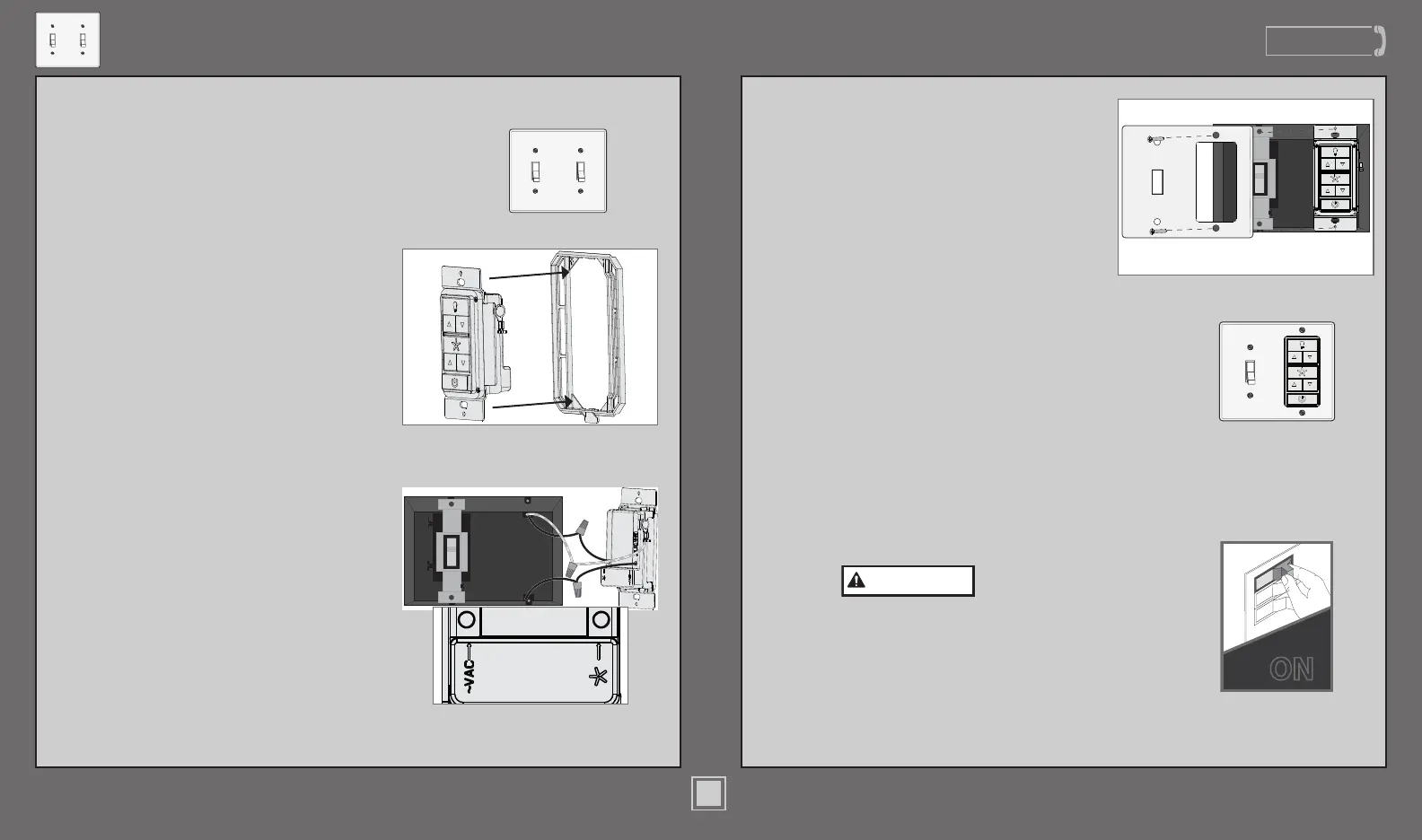

Wall Control For Dual Switches
7
Install the Wall Plate
Install the wall plate that fits
your setup (sold separately).
The existing light switch still
controls the light on/off.
Turn on the power
Installation complete
Reference the included remote function card
for information on how to use your wall control!
ON
Turn Power
IMPORTANT
9
8
10
4
5
Remove the existing wall plate
Remove the Casablanca Wall
Control frame.
Remove the existing wall plate.
Save the screws. You will need
them for the existing, marked
light switch.
Remove the frame from the
Casablanca Wall Control. You
will not need it for the dual
switch installation process.
6
Wiring the Casablanca Wall
Control
1. Connect the grounding wire
from the wall control to the
ground control from the switch
box using the provided wire
nuts.
2. Connect the “LIVE IN” from
the switch box to the “~VAC”
from the wall control using the
provided wire nuts.
3. Connect the “LIVE OUT” from
the switch box to the “FAN” out
from the wall control using the
provided wire nuts.
4. Push all wires into the switch
box.
1. Use the screws you saved to
reinstall into the light switch.
2. Use the screws included
