4

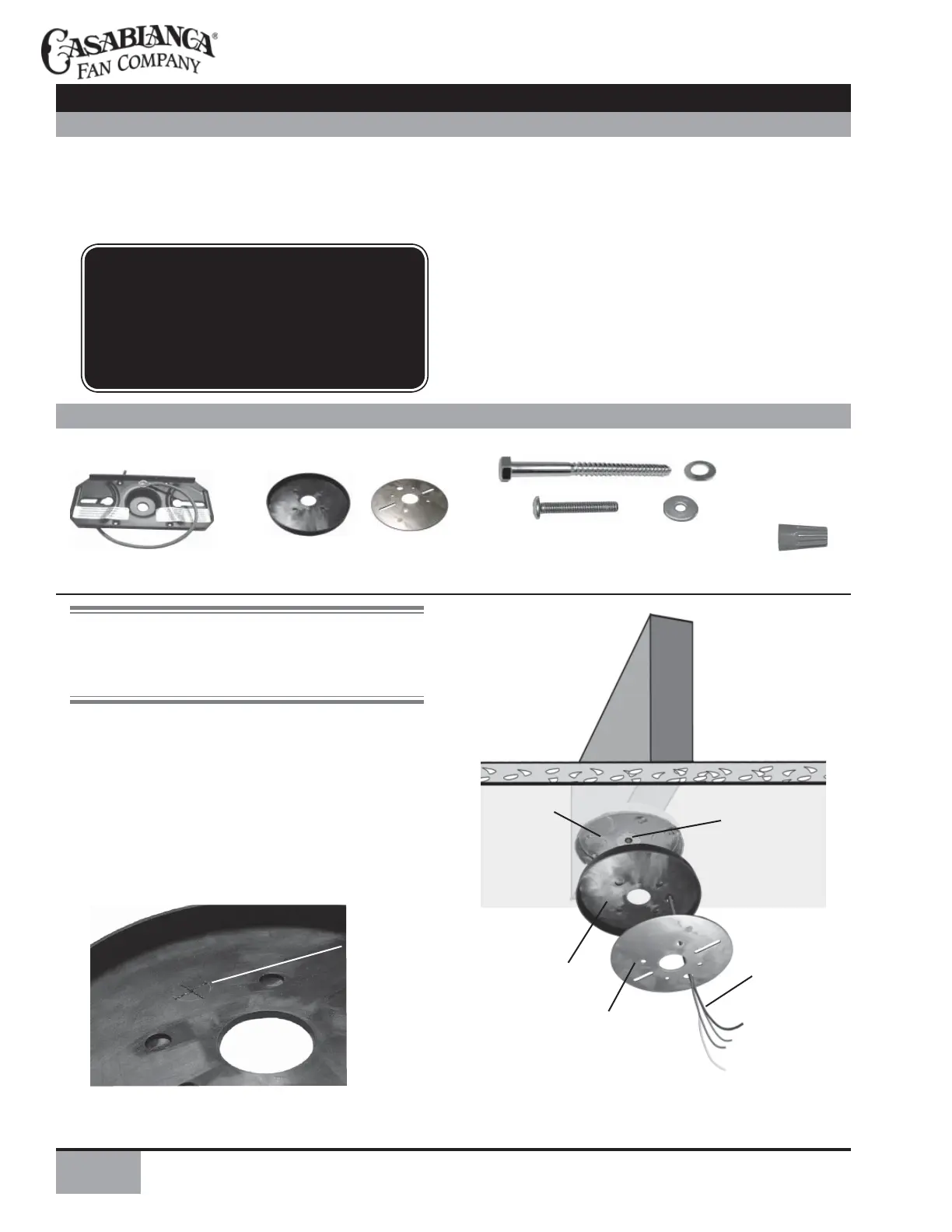

CROSSBAR MOUNTING BRACKET INSTALLATION

FAN INSTALLATION

Using Existing Ceiling Fixture Outlet Box

After turning the power OFF at its source (either the

circuit breaker or fuse box), lower the old fi xture and

disconnect the wiring. Check the ceiling fi xture outlet

box to be sure it is marked “Approved for Ceiling Fan

Mounting.” If it is not, a new box must be installed.

GETTING STARTED

Installing a New Ceiling Fixture Outlet Box

If you do not have an existing fi xture located where

you wish to place your Casablanca fan, an approved

ceiling fi xture outlet box must be installed and wired.

WARNING!

To reduce the risk of fi re, electrical shock,

or personal injury, mount to outlet box

marked “Acceptable Fan Support of 22.7

kg (50 lbs.) or less” using the mounting

hardware provided with the outlet box.

CEILING HARDWARE (not to scale)

Note: After removing the old fi xture, check the outlet

box to ensure that it is supported by a joist or beam

across its upper surface. If not, a 2 x 4 stud must be

installed.

Step 1a. Remove the knockout plug in the center of

the outlet box or drill a

1

/

2

-inch hole for the lag screw

to pass through. Then drill a

1

/

4

-inch guide hole into

the joist or beam to a depth of 3 inches.

Step 1b. The rubber gasket has a cutout already in

the gasket for the wires as shown in Figure #1. Route

the outlet box wires through the rubber gasket and the

mounting plate as shown in Figure #2.

Crossbar Mounting Bracket

Lag Screw and Washer (1)

1" x 8-32 Roundhead Screws and Washers (2)

Wire Nuts (4)

JOIST

CEILING

WIRING

CEILING FAN-

APPROVED

WIRING BOX

MOUNTING

PLATE

RUBBER

GASKET

Rubber

Gasket

Mounting

Plate

1

/

2

" HOLE

CUTOUT

FOR WIRES

Figure #1

Figure #2
