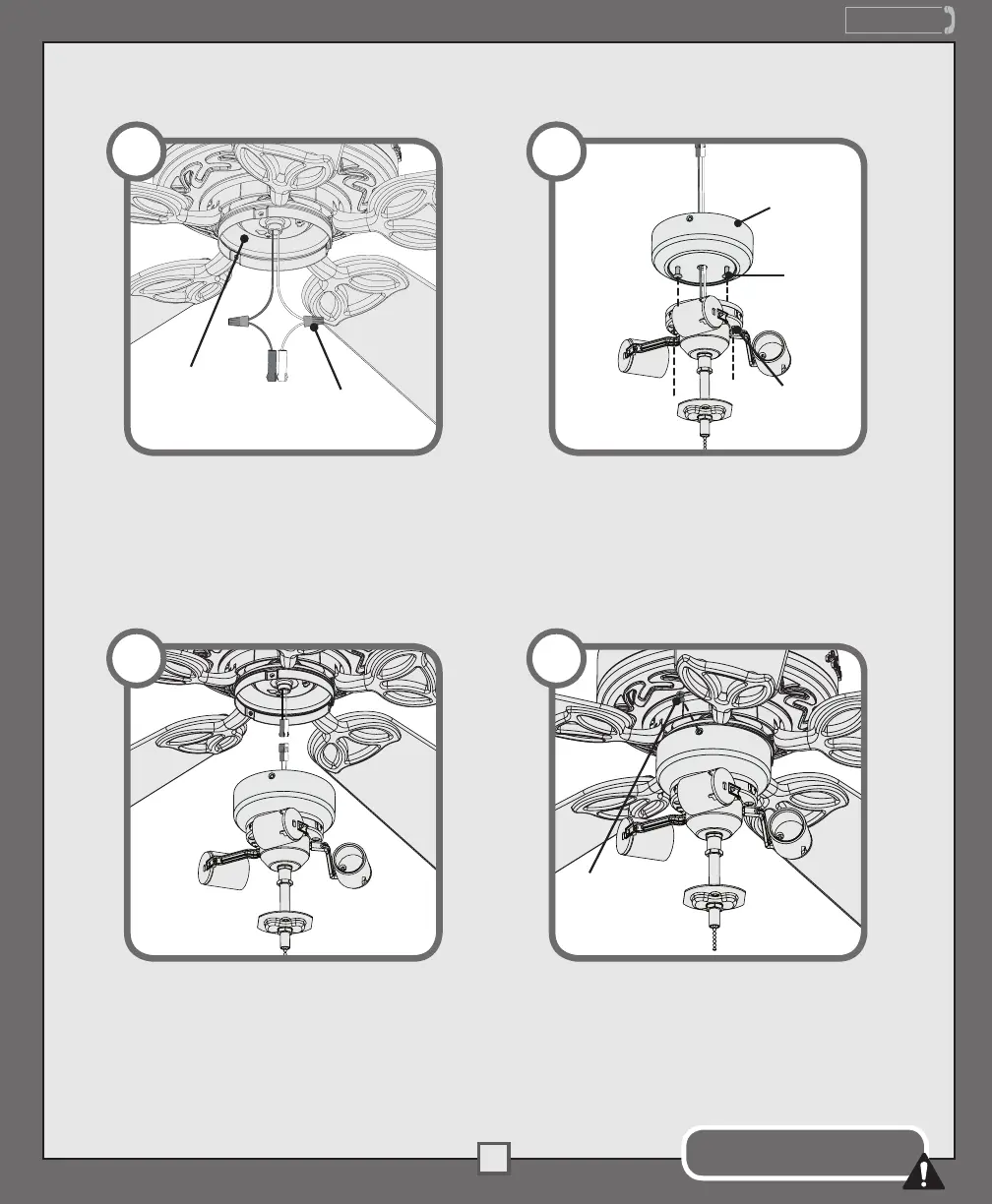

TYPE-B ASSEMBLY INSTRUCTIONS
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Screw the two light kit screws halfway
into the switch housing. Feed the light kit
wires through the center hole in the switch
housing. Lift the light kit up to meet the
lower switch housing. Attach the light kit
to the switch housing using the keyhole
slots to engage the light kit screws.
Rotate clockwise. Tighten screws securely
through the access holes.
Lift the light kit assembly up so that the
screw holes in the lower switch housing
line up with the holes in the upper switch
housing. Install the switch housing
screws and tighten securely.
Switch
Housing
Screw
Wire
Connector
Switch
Housing
Do not allow the light kit to hang
only by the wire connections!
Light Kit
Screw
Switch
Housing
1 2
3
4
Access
Hole
