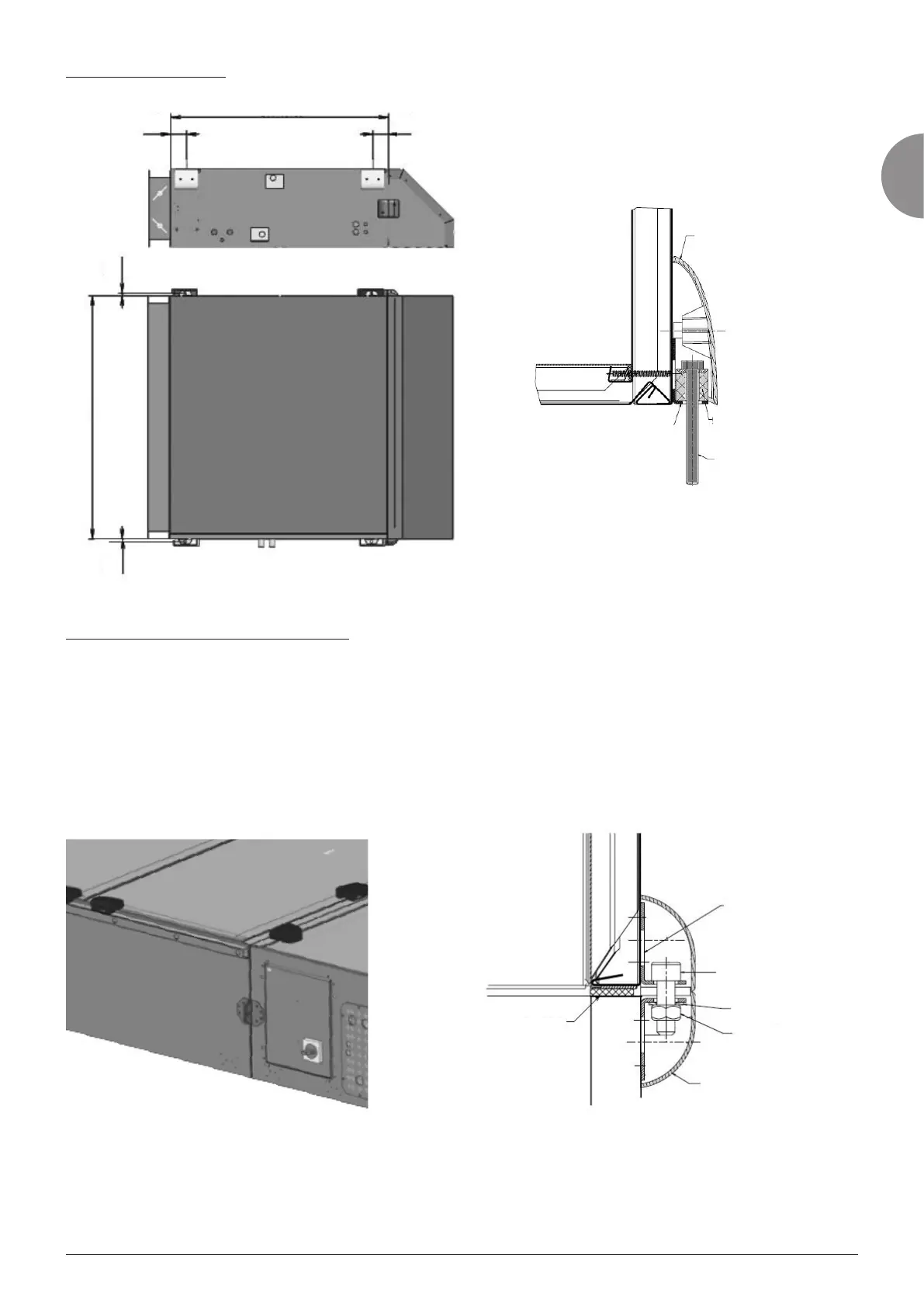

Mounting to their support:
Assembling the casings (for multi-unit AHUs):
- Bond the PVC 25 x 5 gasket to the connection face of the additional casing
- Fit the threaded rods in the plates
- Secure the additional casing to the main casing using the nuts provided (the casings must be perfectly aligned to ensure the
tightness of the assembly)
H6
∅
8 x 80 screws
anti-vibration mount
plate
plastic cover
Module length
8080
14
A
14
25 x 5 gasket
plate
CHC M12 x 30 screw
flat washer
M12 nut
plastic cover
