Frozen Beverage Dispenser
User Manual
All washed and/or sanitized parts must be completely dry before being
carefully reassembled. Some components must be lubricated in order to
work eiciently. A tube of lube is included with each machine.
CAUTION
When cleaning
or liing,
DO NOT GRAB
THE MACHINE
BY THE
CYLINDRICAL
EVAPORATORS.

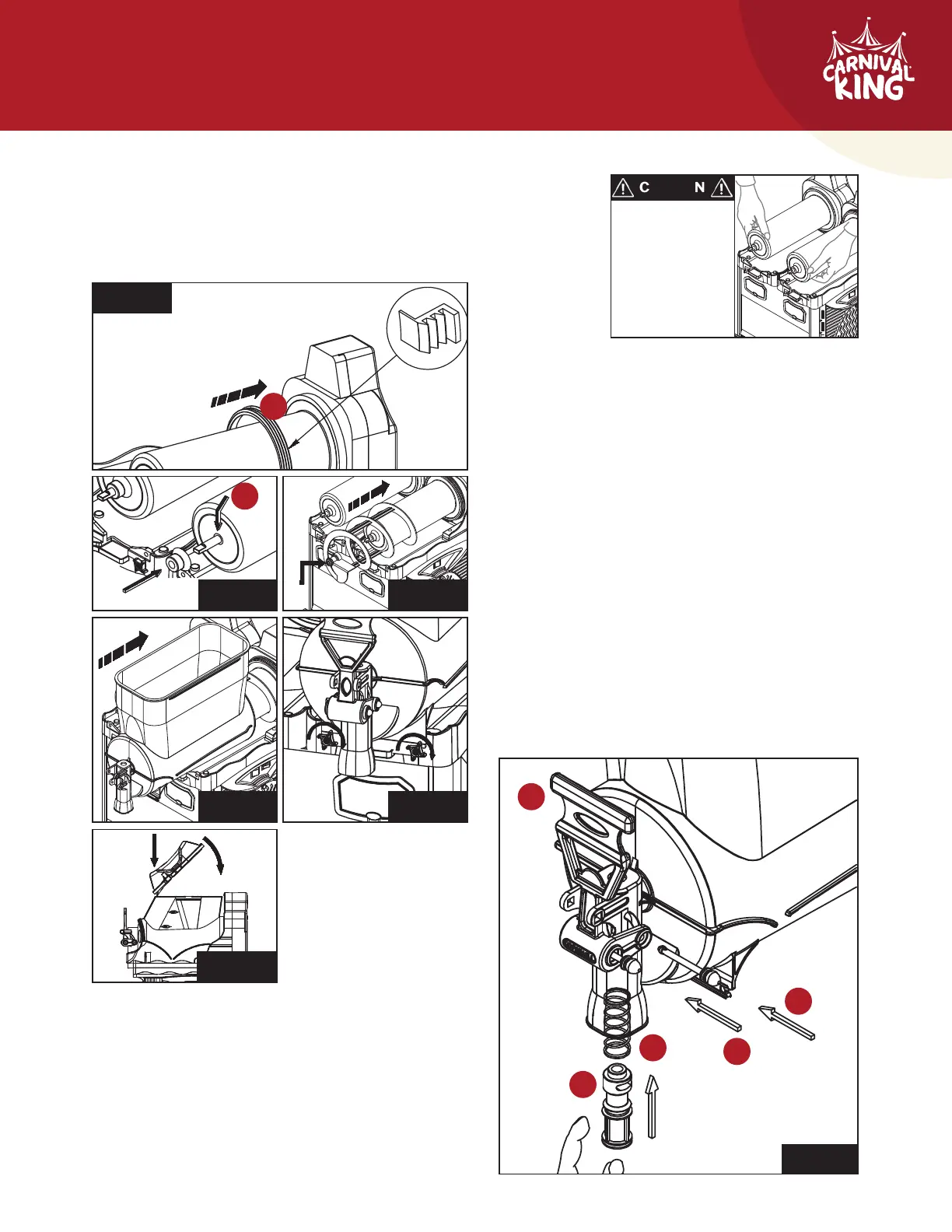

Reassembly
Bowl (Fig. 16-20)
Lid (Fig. 21)
Dispensing Tap (Fig. 21)
1. Place the Bowl Gasket at the boom of the
Cylinder Evaporator, lubricating the upper part
(A). (Fig. 16)
2. Lubricate the surface of the cylinder in the zone
of the transmission sha outlet (A). (Fig. 17)
3. Place the Spiral Blade Gasket (B), lubricating
both the internal and external surfaces. (Fig. 17)
4. Insert the Spiral Blade so that the head joins
the transmission sha. (Fig. 18)
5. Lubricate the external part of the head of the
Spiral Blade (A). (Fig. 18)
6. Aer all bowl components are properly
positioned and lubricated, slide the Bowl into
position. (Fig. 19)
7. Secure the bowl by screwing the Bowl Fixing
Knobs clockwise. (Fig. 20)
1. Insert the sloping lid into the bowl.
2. Rotate the back of the lid into position.
1. Place the Lever (E) in place so Pin (B) lines
up correctly. Insert Pin (B) and secure.
2. Lubricate the Tap Valve (C).
3. Insert the Spring (D) into the product supply
hole, followed by the lubricated Tap Valve (C)
and secure with Pin (A).
Fig. 15
Fig. 16
Fig. 18
Fig. 17
Fig. 19
Fig. 20
Fig. 21
A
B
D
C
E
A
A
1
2
