Frozen Beverage Dispenser

User Manual

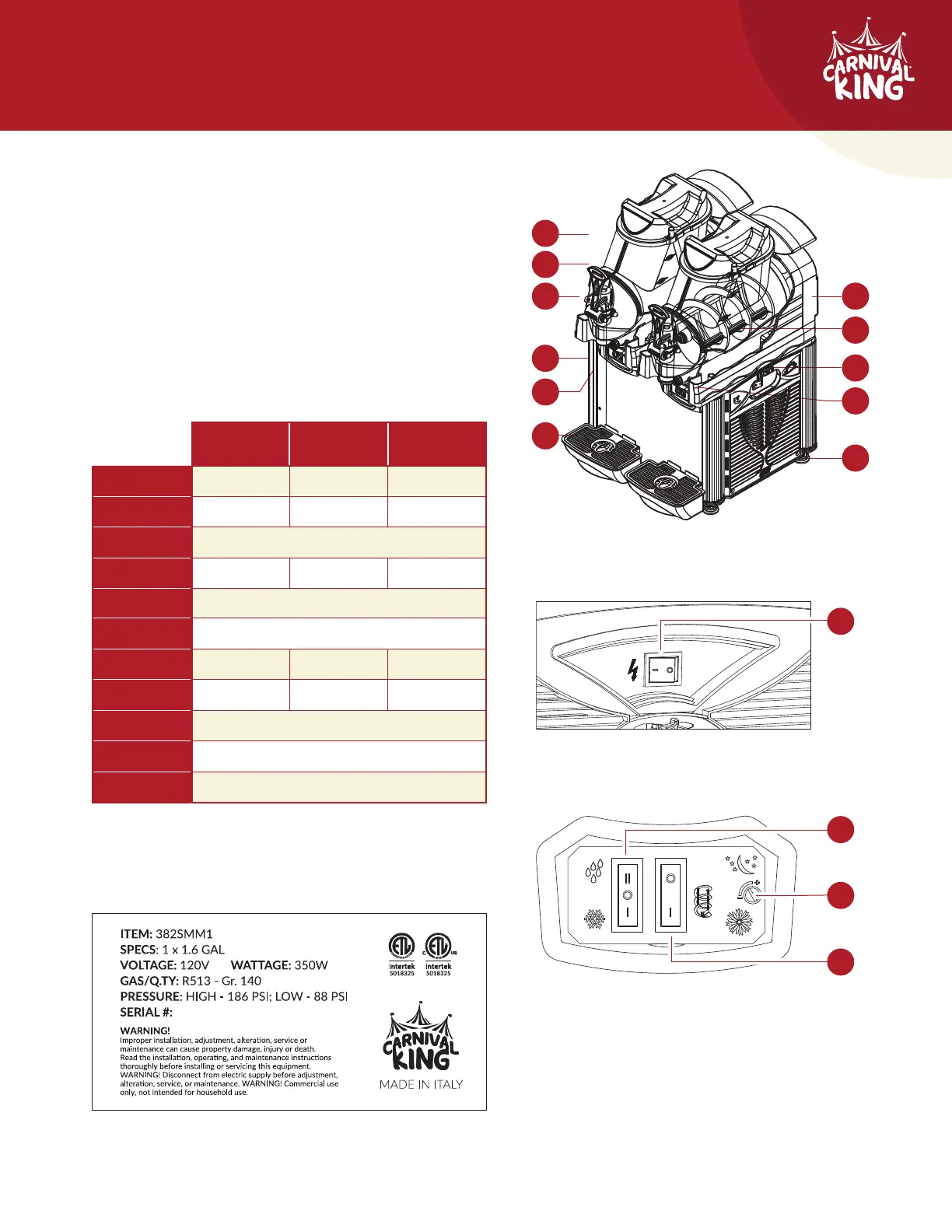

Components, Features & Controls

Main Components

1. Lid

2. Bowl

3. Tap Lever

4. Tap

5. Bowl Switch Box

6. Drip Tray

7. Thickness Control

8. Spiral Blade

9. Main Switches

10. Bowl Fixing Knob

11. Rubber Leg

Technical Features

Serial Plate

The technical features of the machine are reported on the

serial plate aached on the frame.

Main Controls

Positioned on the right side of the machine.

ITEM: 382SMM1

SPECS: 1 x 1.6 GAL

VOLTAGE: 120V WATTAGE: 350W

GAS/Q.TY: R513 - Gr. 140

PRESSURE: HIGH - 186 PSI; LOW - 88 PSI

SERIAL #:

MADE IN ITALY

5018325 5018325

WARNING!

Improper installaon, adjustment, alteraon, service or

maintenance can cause property damage, injury or death.

Read the installaon, operang, and maintenance instrucons

thoroughly before installing or servicing this equipment.

WARNING! Disconnect from electric supply before adjustment,

alteraon, service, or maintenance. WARNING! Commercial use

only, not intended for household use.

7

8

9

10

11

1

2

3

4

5

6

A

SMM SMM SMM

BOWLS

1 2 3

CAPACITY

1 x 1.6 Gal 2 x 1.6 Gal 3 x 1.6 Gal

GAS

R134a

WIDTH

8.6 in 17.3 in 23.9 in

DEPTH

19.2 in

HEIGHT

27.9 in

WEIGHT

53 lb 88 lb 132lb

POWER

350W 850W 1250W

VOLTAGE

120V

ACOUSTIC

PRESSURE

< 70 dB (A)

CLASS

N

Bowl Controls

Positioned underneath each bowl.

B

C

A

A - Beverage Type Control Switch

0: Cooling OFF

I: Slush/Frozen Cream Mode

II: Cold Drink Mode

B - Spiral Blade Switch

0: Spiral Blade OFF

I: Spiral Blade ON

C - Thermostat Control

Controls the temperature of the product when

the Beverage Type Control Switch is set to II.
