9
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index

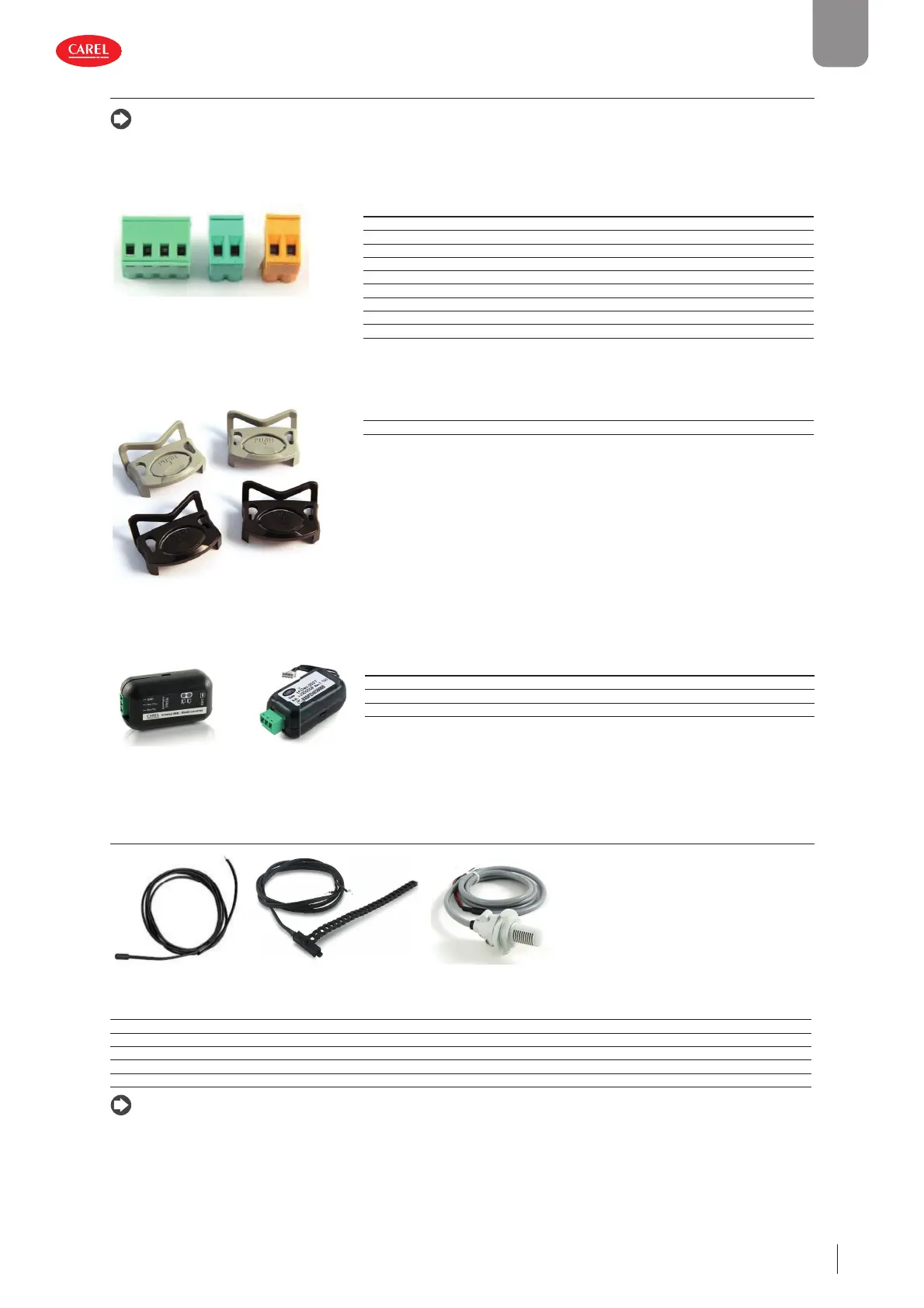

1.2.3 Accessories
Notice: This list of ACCESSORY part numbers is updated as of the release date of this manual; please contact CAREL for any
additional part numbers available.
Connector kit
300100_023_R01
P/NDescription
BXOPZB35002B1 plug-in connector kit, 2 pins, 3.5 mm pitch, black (10 pcs)
BXOPZB35003B1 plug-in connector kit, 3 pins, 3.5 mm pitch, black (10 pcs)
BXOPZB38102G1 plug-in connector kit, 2 pins, 3.81 mm pitch, green (10 pcs)
BXOPZB38104G1 plug-in connector kit, 4 pins, 3.81 mm pitch, green (10 pcs)
BXOPZB38105G1 plug-in connector kit, 5 pins, 3.81 mm pitch, green (10 pcs)
BXOPZB50802O1 plug-in connector kit, 2 pins, 5.08 mm pitch, orange (10 pcs)
BXOPZB50803G1 plug-in connector kit, 3 pins, 5.08 mm pitch, green (10 pcs)
BXOPZB50805G1 plug-in connector kit, 5 pins, 5.08 mm pitch, green (10 pcs)
BXOPZB50807G1 plug-in connector kit, 7 pins, 5.08 mm pitch, green (10 pcs)
Fig. 1.c Tab. 1.d
Fixing brackets
300100_022_R01
P/NDescription
BXOPZMBRC0002 bracket kit for panel version, multiple pack (20 pcs)
Tab. 1.e
Fig. 1.d
Converters
P/NDescription
BXOPZIOWD0000 USB to 1-wire converter for digital input (DI2)
BXOPZI4850000 RS485 converter for TTL serial port
CVSTDUMOR0 USB/RS485 converter
Tab. 1.f
Fig. 1.e
1.2.4 Temperature sensors
Fig. 1.f
P/N Type Description Range
NTC***HP0* 10 kΩ±1%@25 °C, IP67 β 3435 Temperature probe -50 to 50 °C (105°C in air)
NTC***HF01 10 kΩ±1%@25 °C, IP67 β 3435 Evaporator outlet temperature probe -50 to 90°C strap-on
PT1060HP01 PT1000 Class B, IP67 Temperature probe -50T105°C in air
PT1***HF01 PT1000 Class B, IP67 Evaporator outlet temperature probe 50T105°C in air
DPRC* NTC 10KΩ@25°C β3435 - 0 to 5 Vdc Ambient temperature and humidity probe -10T60°C - 10-90% U.R
Notice: see manuals +040010025 (ITA- ENG) /+040010026 (FRE-GER) for guidelines on installing the sensors on the unit.
