Je bekijkt pagina 89 van 104
89
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index

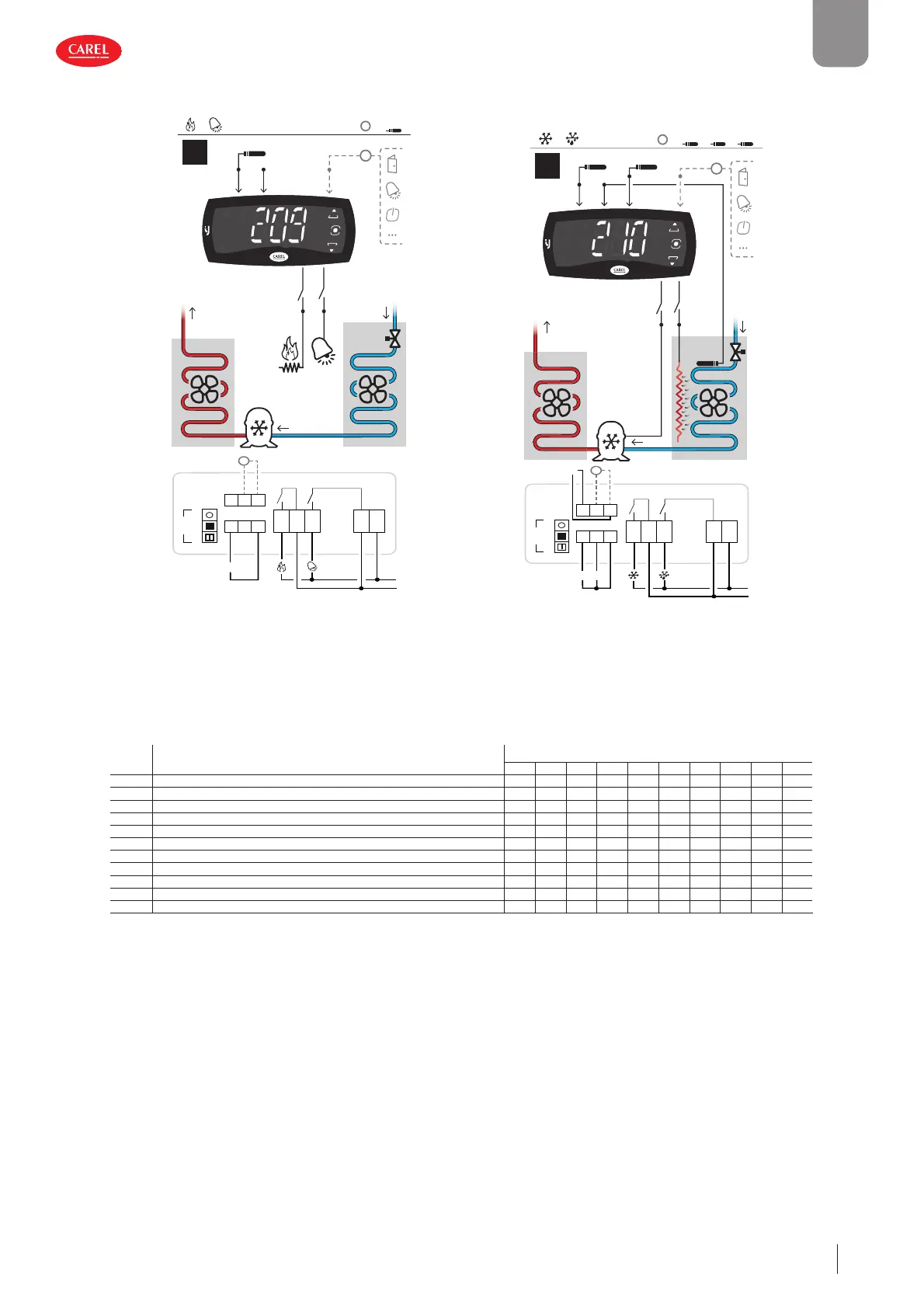

209 - Heater - Alarm
NO1
NO2
S1
S2
209
DI2
Sm
Sm
BMS
Sm
S1 S2
GND
NO1
C1
NO2
L
N
Tx/Rx
GND
+
L
N
DI1 DI2
GND
Fig. 12.k
210 - Compressor 77- Defrost -
Virtual probe
NO1
NO2
S1
S2
210
S3
DI2
SmSdSr
Sm Sr
Sd
BMS
Sr
Sm Sd
S1 S2
GND
NO1
C1
NO2
L
N
Tx/Rx
GND
+
L
N
DI1 DI2
GND
Fig. 12.l
Parameters list of confi gurations with 2 relays
When choosing a confi guration, the parameters shown in the table are automatically set.
Par. Description Confi guration
201 202 203 204 205 206 207 208 209 210
/FA Assign outlet temperature probe Sm 1 1 1 1 1 1 1 1 1 1
/Fb Assign defrost temperature probe Sd 0 0 0 2 0 0 0 0 0 2
/Fc Assign intake temperature probe Sr 0 0 0 0 0 0 0 0 0 3
DOA Assign solenoid/compressor digital output 1 0 1 1 1 1 1 0 0 1
DOb Assign alarm digital output 0 0 0 0 2 0 0 0 2 0
DOE Assign light digital output 0 0 0 0 0 2 0 0 0 0
DOG Assign defrost digital output 0 0 0 2 0 0 0 0 0 2
DOI Assign evaporator fan digital output 0 0 2 0 0 0 0 2 0 0
DOv Assign reverse digital output with dead band control 0 1 0 0 0 0 2 2 1 0
GF2 Custom function associated with the DOWN arrow 0 0 0 0 0 1 0 0 0 0
/P2 Confi guration of multifunction input S3/ DI 5 5 5 5 5 5 5 5 5 3
Tab. 12.b
