ir33 iJ Description Default Min Max UOM
H1, H5 DOA Assign solenoid/compressor digital output
0 = not confi gured 4 = digital output 4 (NO4)
1 = digital output 1 (NO1) 5 = digital output 5 (NO5)
2 = digital output 2 (NO2) 6 = digital output 6 (NO6)
3 = digital output 3 (NO3)
... 0 6 -
DOb Assign alarm digital output - see DOA ... 0 6 -
DOC Assign AUX auxiliary digital output - see DOA ... 0 6 -
DOE Assign light digital output - see DOA ... 0 6 -
DOG Assign defrost digital output - see DOA ... 0 6 -
DOH Assign auxiliary evaporator defrost digital output - see DOA ... 0 6 -
DOI Assign evaporator fan digital output - see DOA ... 0 6 -
DOj Assign dehumidifi cation heater digital output - see DOA ... 0 6 -
DOk Assign auxiliary compressor without rotation digital output - see DOA ... 0 6 -
DOn Assign pump down valve digital output - see DOA ... 0 6 -
DOP Assign condensate drain heater digital output - see DOA ... 0 6 -
DOQ Assign anti-sweat heater digital output - see DOA ... 0 6 -
DOS Assign generic On/Off function digital output - see DOA ... 0 6 -
DOt Assign condenser fan digital output - see DOA ... 0 6 -
DOu Assign humidifi cation digital output - see DOA ... 0 6 -
DOv Assign reverse digital output with dead band control - see DOA ... 0 6 -
DOw Assign auxiliary parallel compressor digital output - see DOA ... 0 6 -
DOx Assign gasket heater digital output - see DOA ... 0 6 -
DOy Assign auxiliary compressor with rotation digital output - see DOA ... 0 6 -
DOz Assign external dehumidifi er digital output - see DOA ... 0 6 -
F5 F5d Condenser fan activation diff erential 5/ 9 0.1/ 0.2 60/ 108 °C/°F
Ado H14 Time light stays on after closing the door 0 0 240 min
H4 Hb Buzzer: 0 = disabled; 1 = enabled 1 0 1 -
HF HF1 Activation date and time of the fi rst, second and third type HF alarm ... ... ... -
Hdn IS Confi guration to be loaded (0 = no confi guration selected) 0 0 ... -
Pw PDS Service password 22 0 999 -
r3 r30 Control mode: 0 = direct with defrost; 1 = direct; 2 = reverse 0 0 2 -
tof_ d_ tE1- d, …, tE8-d End time band 1 to 8 - day, see (td1...8-d) 0 0 11 -
tof_ h_ tE1-hh, …, tE8-hh End time band 1 to 8 - hours 0 0 23 hours
tof_m_ tE1-mm, …, tE8- mm End time band 1 to 8 - minutes 0 0 59 minutes
toF tE1- time, …, tE8- time End time band 1 to 8 (Applica) 00:00:00 00:00:00 23:59:59 -
ton_d_ tS1- d, …, tS8-d Start time band 1 to 8 - day, see (td1...8-d) 0 0 11 -
ton_h_ tS1-hh, …, tS8-hh Start time band 1 to 8 - hours 0 0 23 hours
ton_m__ tS1- mm, …, tS8-mm Start time band 1 to 8 - minutes 0 0 59 minutes
ton tS1- time, …, tS8- mm Start time band 1 to 8 (Applica) 00:00:00 00:00:00 23:59:59 -

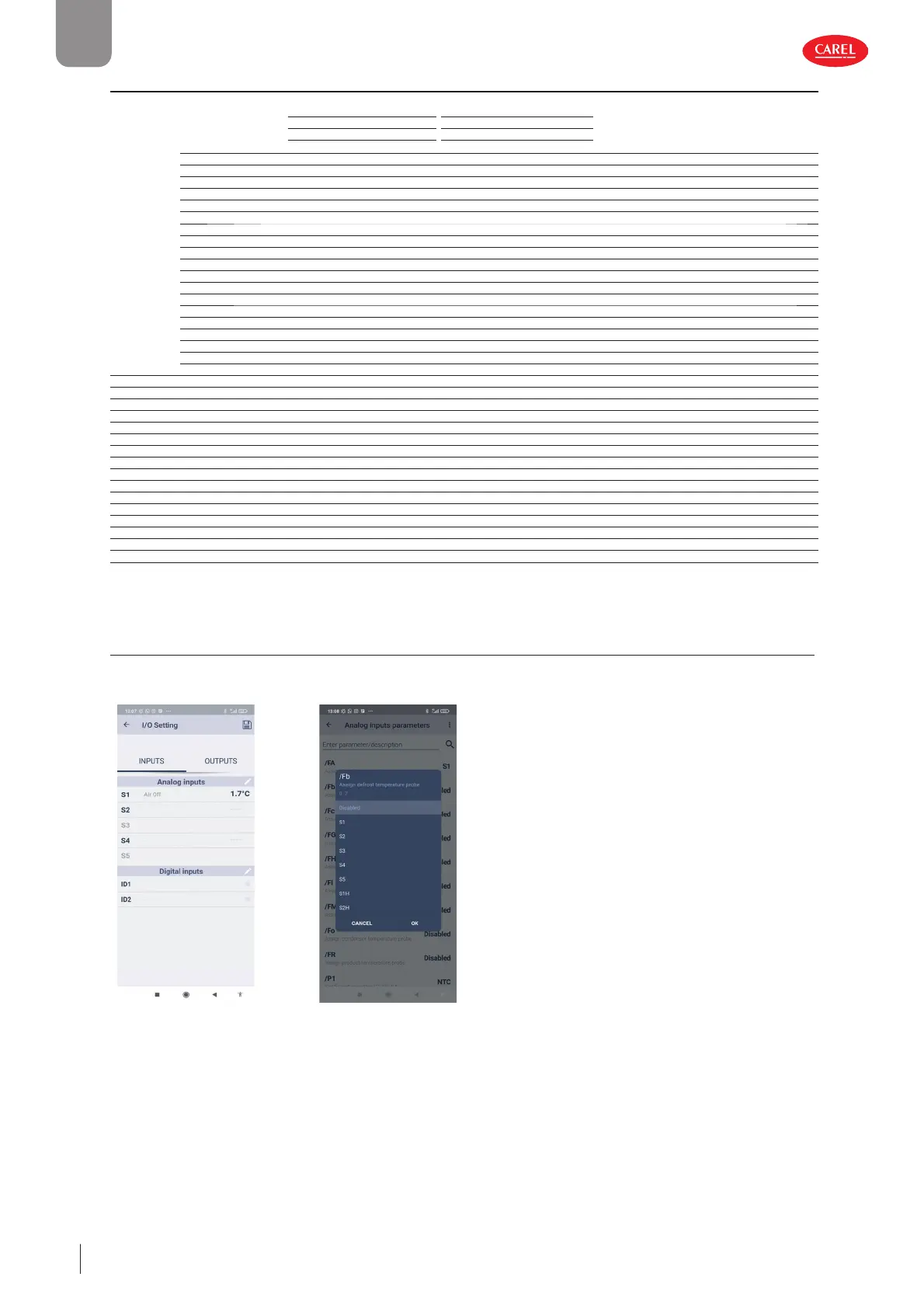

Tab. 12.a
12.2 Input/output con guration procedure
The inputs and outputs can be confi gured in the Applica app or Applica Desktop confi guration software by setting the corre-
sponding parameters.
300100_092_R01
300100_093_R01
Fig. 12.a Fig. 12.b
Procedure:
1. open Applica on the smartphone;
2. access the controller via NFC or Bluetooth™, entering the profi le credentials;
3. move the device closer to the iJW to modify the input/output confi guration on (NFC connection only);
4. access Service Area-> I/O;
5. Select the Inputs or Outputs tab;
6. Select the modifi cation tool corresponding to the group of inputs/outputs to be modifi ed;
7. the example in the fi gure shows the defrost probe assignment) and set the input/output to be associated with the function;
press OK to confi rm;
8. Select “Write” from the drop-down menu at the top right, move the device closer to the iJW and tap “Applica” (NFC connec-
tion only).
