11. LOGS

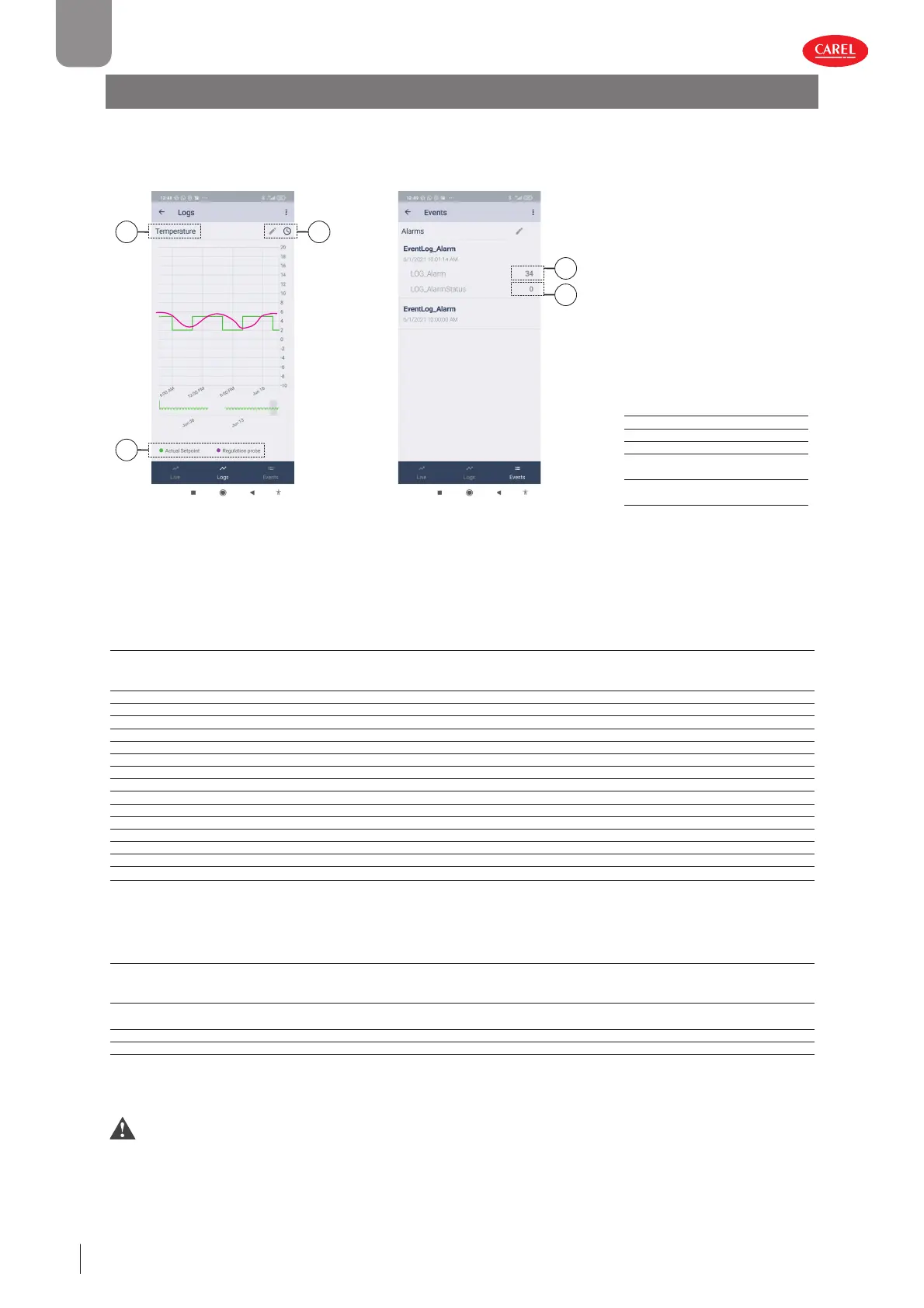

The iJW controller can record both periodic and event logs, which can then be viewed and downloaded using the Applica app
and commissioning tools. To view the logs from Applica, select Service Area -> Trend -> (tab) Logs for the periodic logs, or Ser-
vice Area -> Trend -> (tab) Events for event logs:
1
3
2
300100_090_R01
4
5
300100_091_R01
Ref. Description
1 Preset
2 Display editing tools
3 Periodically logged variables
4 Alarm code
(See the Alarm table)
5 Alarm status
(0= not active; 1 = active)
Fig. 11.a Fig. 11.b
The log view is pre-set, however it can be changed using the editing tools. In addition, the pre-set views loaded on the device
allow the main values to be fi ltered (temperature, HACCP alarms, blackouts, etc.). To download the logs, use the drop-down
menu at the top right.
11.1 Periodic logs
The periodic logs record the main values at regular intervals, as shown in the table.
Logged value UOM Period
Control temperature °C/°F 5 min
Current temperature set point. °C/°F 1 h
Current humidity % rh 1 h
Current humidity set point % rh 1 h
Maximum temperature in the period °C/°F 1 h
Minimum temperature in the period °C/°F 1 h
Current evaporation temperature °C/°F 1 h
Current condensing temperature °C/°F 1 h
Compressor, minutes ON in the period min 1 h
Compressor, starts in the period - 1 h
Evaporator fan, minutes ON in the period min 1 h
Lights, minutes ON in the period min 1 h
Defrost, minutes ON in the period min 1 h
Low temperature alarm relative threshold Δ °C/°F 1 h
Low temperature alarm relative threshold Δ °C/°F 1 h
Tab. 11.a
11.2 Event logs
Event logs are recorded when specifi c conditions occur, and can be used to store certain related values, as shown in the table.
Logged value Event Other recorded values Number of samples (*) Limits
Alarm Alarm activation Number of the active alarm with highest priority. Alarm
status (active/ceased)
100 max 255 (Notice 2)
Blackout Device ON Power failure duration in minutes 100 1000 hours
HACCP alarms HA or HF alarm Type HA or HF alarm 50 -
Tab. 11.b
(*) The samples are stored in a circular FIFO list (e.g. for the alarms, the 21st alarm overwrites the 1st alarm, and so on).
The type of alarm recorded in the log can be identifi ed using the alarm code (see the Alarm table).
changing the time set on the iJW controller by more than 140 minutes will clear the stored logs.
