ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index
300100_028_R0
1
BLE
NFC
max
10mm

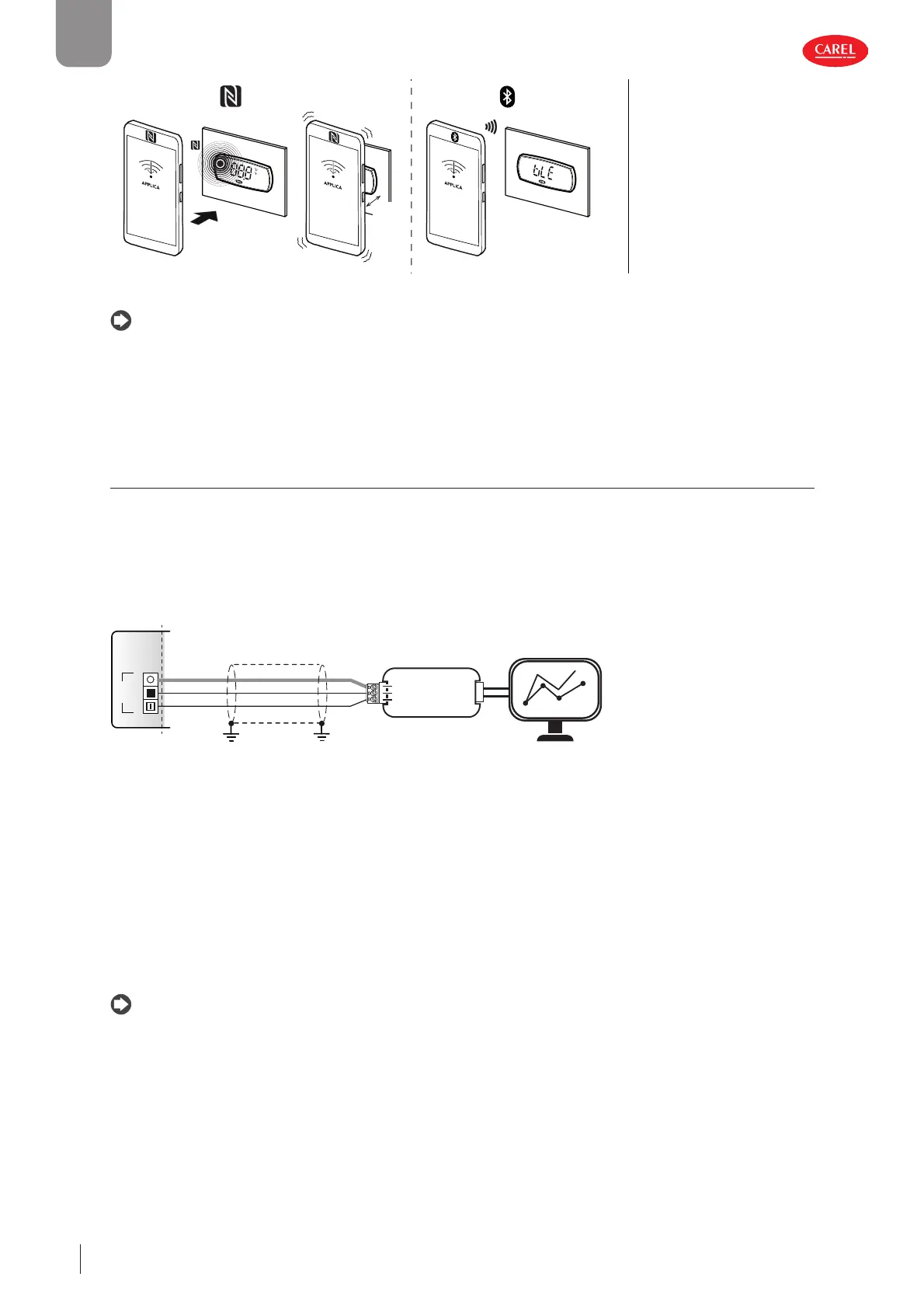

Fig. 8.a
Notice: during the fi rst connection, the Applica app aligns itself with the software version on the iJW controller via a cloud
connection; this means a mobile data connection is needed at least for this fi rst connection. If the data connection is not avail-
able, the required packet can be retrieved from the could as soon as the connection is restored (access the “Packet Manager”
section of Applica).
Applica makes it easy to set the parameters on the iJW controller and manage parameter confi gurations using the hamburger
menu at the top left of the screen.
8.2.1 Con gurations
Parameter confi gurations can be created and saved, and then uploaded to the iJW controller using the confi guration software
or APPLICA app. Confi gurations can be created either using the default values loaded by Carel, or starting from user-set values
on the controller iJW, or alternatively only certain specifi c values can be modifi ed. Furthermore, using the Applica app it is pos-
sible to clone the parameter confi guration on board of a control and apply it to another control. See the paragraph '' Copying
parameter confi gurations ''. To create a confi guration using the SPARK Applica Desktop confi guration software - released under
license directly by Carel - and starting from the default values on the controller, connect the PC to the BMS connector (RS485)
using converter P/N CVSTDUMOR0, as shown in the fi gure:
Tx/Rx
GND
+
BMS
300100_002_R01
CVSTDUMOR0
USB/RS485 converter
RS485
Shield
BMS
GND
TX
RX
Commissioning tool
Fig. 8.b
The following procedure is used to create a confi guration, starting from the actual values on the controller:
1. In the “Target” tab add a "target", i.e. the iJW controller to communicate with.
2. Set the type of serial communication and change the connection parameters (default for the iJW baud rate 19200, parity
None and 2 stop bit)
3. Select “Connect”.
4. From the “Confi gurations” tab, select “Add confi guration” (e.g. 1).
5. After having created and selected the chosen confi guration, select “Copy values to confi guration”.
6. The “Confi guration value” column will now be populated with the current values on the iJW controller. The values can now
be modifi ed to create a custom confi guration.
7. The confi guration created as above can be immediately uploaded to the iJW controller by selecting “Applica confi guration”
or saved for future use by selecting “Export confi guration”.
Notice: to create a confi guration based on the default values loaded by Carel on the iJW controller, simply follow the same
procedure as described above, and in step 6 select “Applica default values” rather than “Copy values to confi guration”.
