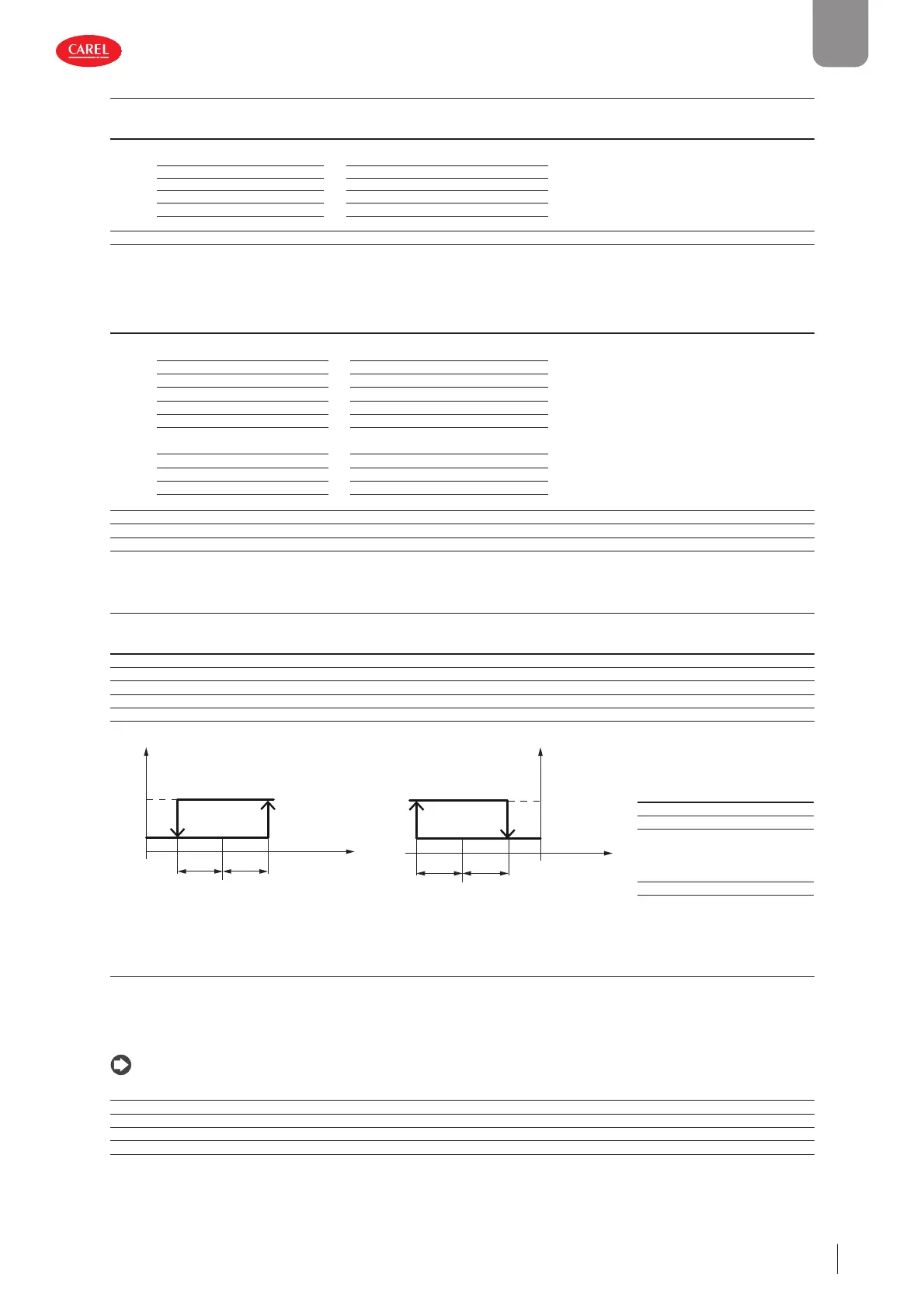

63
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index
7.20.1 Enabling
The generic function can be enabled always, or when the unit is in a certain status.
Par. Description Def Min Max UOM User User terminal
GFA_E Generic alarm function: enable
0 Always 6 Duty setting
1 Unit ON 7 Standby
2 Unit OFF 8 Compressor or reverse output active
3 Defrost 9 Door open
4 Not used 10 Alarm active
5 Continuous cycle
0 0 10 - S NO
GFS_E Generic On/Off function, enable - see GFA_E 0 0 10 - S NO
Assign control probe
Select the control probes for the generic function.
Par. Description Def Min Max UOM User User terminal
GFA_1 Generic alarm function, control probe 1
0 Not confi gured 11 Glass temperature
1 Outlet temperature (Sm) 12 Not used
2 Defrost temperature (Sd) 13 Condensing temperature
3 Intake temperature (Sr) 14 Humidity
4 Not used 15 Frost protection temperature
5 Not used 16 Product temperature
6 auxiliary evaporator
defrost temperature (Sd2)
17 Not used
7 Auxiliary probe 1 18 Power present
8 Auxiliary probe 2 19 Evaporator fan request
9 Room temperature 20 Control probe
10 Not used
0 0 20 - S NO
GFA_2 Generic alarm function, control probe 2 - see GFA_1 0 0 20 - S NO
GFS_1 Generic On/Off function: control probe 1 - see GFA_1 0 0 20 - S NO
GFS_2 Generic On/Off function: control probe 2 - see GFA_1 0 0 20 - S NO
7.20.2 On/O output
Assign the digital output for the generic function, the type (direct/reverse) and the activation logic (see parameter rOA).
Par. Description Def Min Max UOM User User terminal
DOS Assign generic On/Off function digital output - see DOA ... 0 6 - S NO
rOS Generic On/Off function digital output logic - see rOA 0 0 1 - S NO
GFS_D Generic On/Off function, diff erential 0 0 99.9 - S NO
GFS_S Generic On/Off function: set point 0 -99 999 - S NO
GFS_T Generic On/Off function: type 0 = Direct, 1 = Reverse 0 0 1 - S NO
300100_143_R01
Sreg
DIRECT
Set
ON
OUT
OFF
Di Di
300100_144_R01
Sreg
REVERSE
ON
OUT
OFF
Set
Di Di
Ref. Description
Set Set point (GFS_S)
Diff Diff erential (GFS_D)
Sreg Control probe 1
or
Control probe1 - Control
probe 2
OUT Digital output
Fig. 7.aq Fig. 7.ar
7.20.3 Alarm signal
The alarm can be signalled for two reasons:
1. switching of the digital input, assigned by parameter DIS: the display shows “GHI”
2. if the diff erence between the values of the control probes exceeds the high or low threshold for a time longer than GFA_De:
the display shows GHI or GLO respectively.
Notice: check that the alarm is generated by only one of the two causes.
Par. Description Def Min Max UOM User User terminal
GFA_D Generic alarm function: diff erential 0 0 99.9 - S NO
GFA_De Generic alarm function: delay 0 0 30000 s S NO
GFA_Ht Generic alarm function: high temperature threshold 0 GFA_Lth 999 - S NO
GFA_Lth Generic alarm function: low temperature threshold 0 -99 GFA_Ht - S NO
