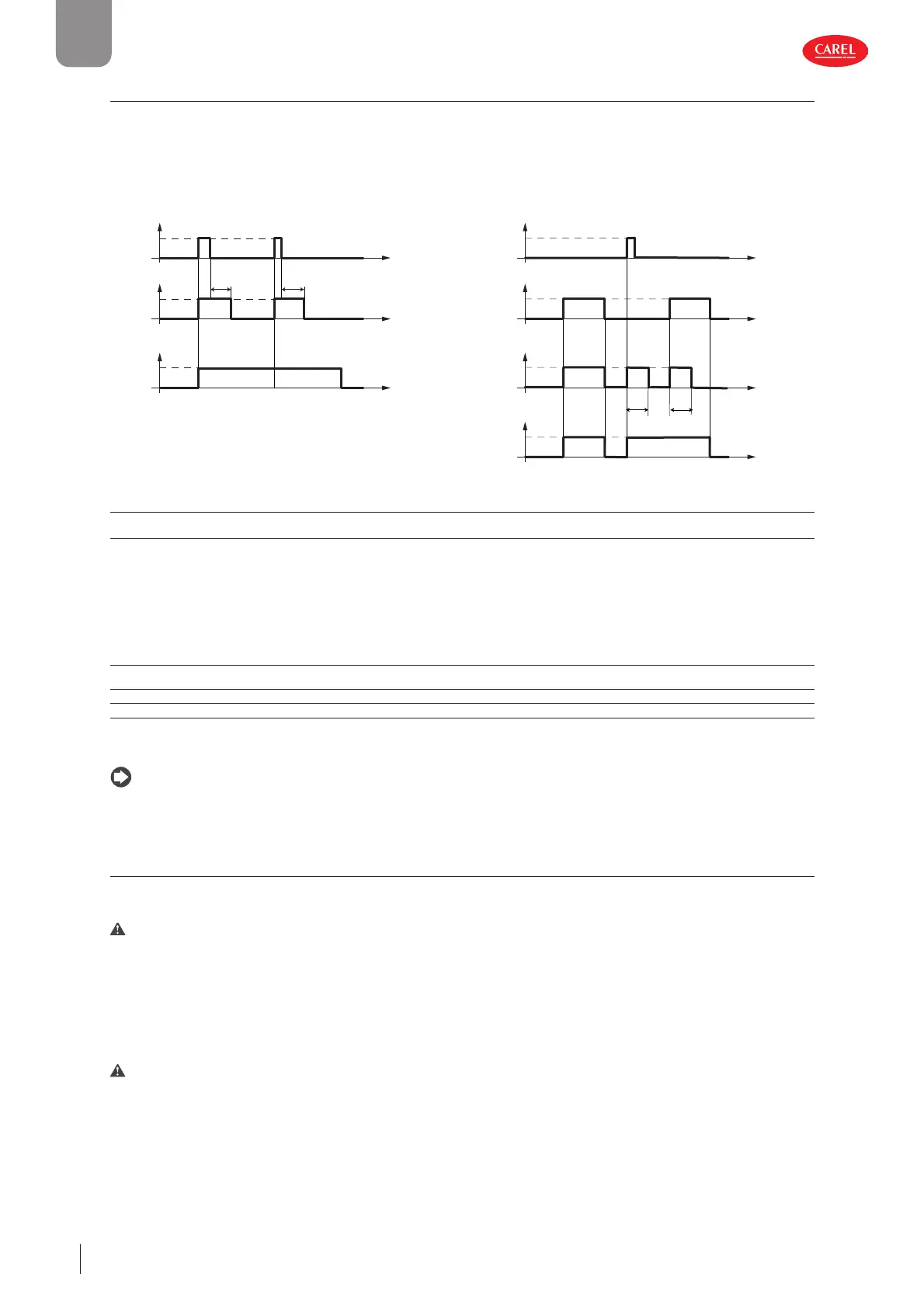

7.18 Door - light interactions
In the absence of time bands, opening the door always ac-
tivates normal operating mode, which lasts until a diff erent
mode is selected via keypad or BMS. The light switches on
when the door is opened and switches off when it closes,
with a delay equal to H14, if set.
If time bands are set to defi ne eco/normal mode, the light
will follow these rules by switching on in normal mode and
off in eco mode. Opening the door will switch back to nor-
mal mode and switch on the light.
300100_120_R01
H14 H14
OFF
ON
ECO
Force ECO
by key
Normal
Close
Open
Door
Light
Mode
t
t
t
300100_121A_R0
1
8:00 12:30 15:00 18:30
ECO
Normal
OFF
ON
ECO
Normal
Close
Open
Door
Sched
Light
Mode
t
t
t
t
H14
H14
Fig. 7.ao Fig. 7.ap
Par. Description Def Min Max UOM User User terminal
H8 Output switched with time bands:
0 = Light; 1 = AUX
0 0 1 - S NO
The time bands can be associated with the AUX output rather than the light, by setting parameter H8. In this case, the light will
refl ect the position of the door, switching on and off respectively when the door is opened and closed.
7.19 Curtain management
Par. Description Def Min Max UOM User User terminal
DIG Assign curtain switch digital input - see DIA ... 0 4 - S NO
rIG Curtain switch digital input logic - see rIA 0 0 1 - S NO
If the digital input is associated with the curtain switch, when the curtain is closed the IJx controller activates eco mode and the
set point is modifi ed by adding the value of parameter r4. When the curtain is open, the light is always switched on.
Notice: in eco mode, the value St+r4 is used for all of the functions that involve the set point (e.g. relative high and low
temperature alarms, control with dead band, two-stage compressor control, etc.).
7.20 Generic functions
iJW can exploit unused inputs and outputs to confi gure a “generic function”. Each generic function can be enabled/disabled in
the Applica app or Applica Desktop confi guration software.
Caution: the generic functions available vary according to the model of controller.
The following can be activated (maximum confi guration):
• 1 generic function with On/Off output;
• 1 generic alarm function (signal only).
The generic function can be controlled based on one of the following:
• 1 specifi c probe;
• diff erence between 2 suitably confi gured probes.
Caution: the controller cannot verify the consistency of the settings, if two analogue functions are mistakenly assigned to the
same analogue inputs or the same digital output.
