Je bekijkt pagina 59 van 104
59
ENG
iJW +0300103EN rel. 1.1 - 31.03.2025
Index

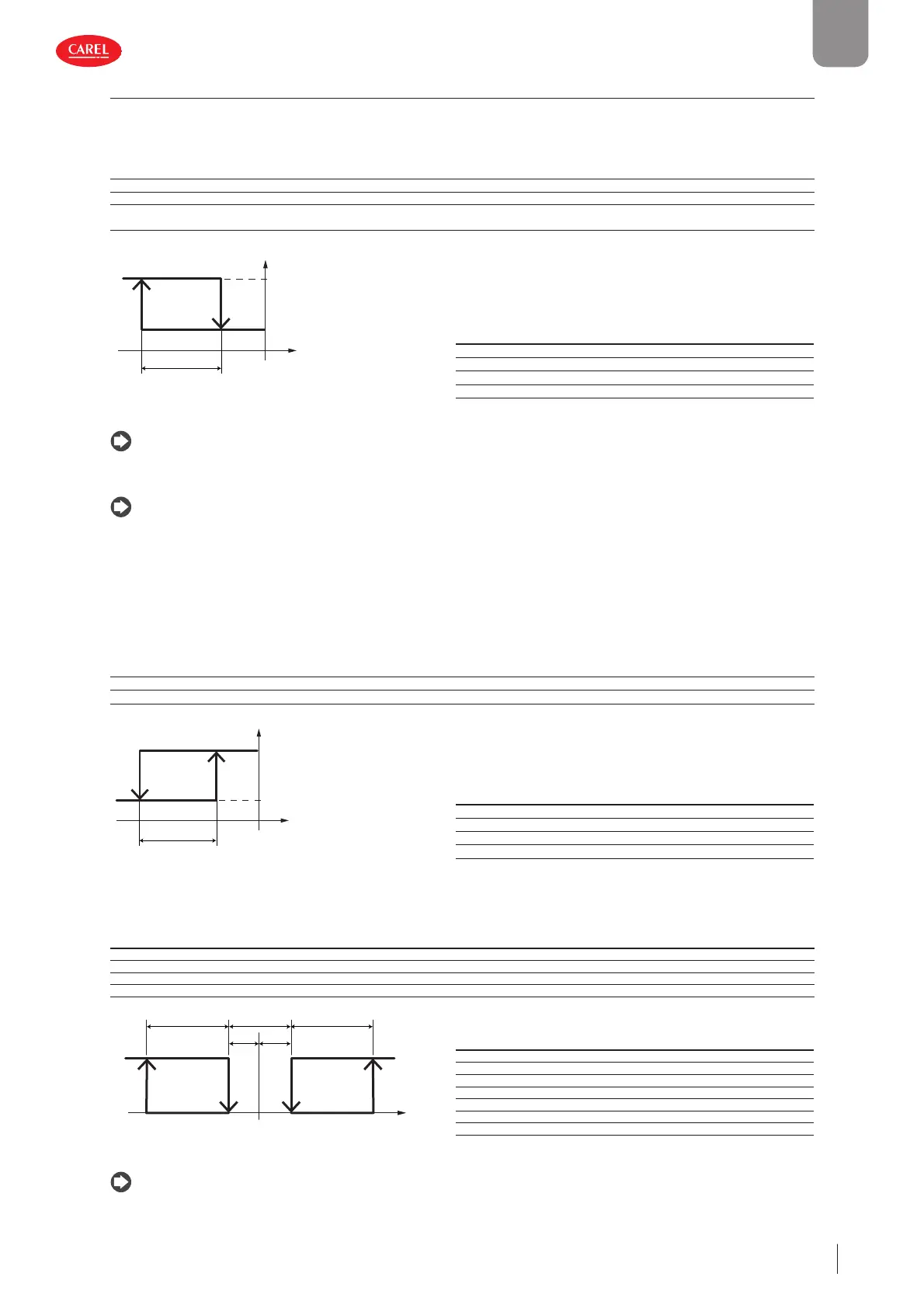

7.15.5 Humidity control
Humidifi cation
The control logic for humidity control with probe is shown in the fi gure. When the humidity falls below the humidity set point
Sth plus the humidity diff erential rdH, the humidifi cation output is activated.
Par. Description Def Min Max UOM User User terminal
Sth Humidity control set point 90 0.0 100.0 % rH U YES
rdh Humidity control diff erential 5 0.1 99.9 % rH S YES
F4r Humidifi cation output during defrosts: 0 = active based on humidity control;
1 = deactivated during defrosts
00 1- S YES
SHu
DOu
StH
rdH
OFF
ON
Ref. Description
SHu Humidity control probe
Sth Humidity control set point
rdh Humidity control diff erential
DOU Humidifi cation outlet
Fig. 7.ag
Notice: parameter F4r is used to decide whether or not to disable the humidifi cation output during defrosts:
• F4r=0 -> humidifi cation output active based on humidity control;
• F4r=1 -> humidifi cation output disabled during defrosts, regardless of the request.
Notice: the humidifi cation output is always deactivated in the event of an alarm that stops the compressor immediately.
Examples:
• Alarm CHt;
• Alarm IA (when A6 = 0).
Dehumidifi cation
For humidity control with probe, the dehumidifi cation function can also be managed. The control logic is shown in the fi gure.
When the humidity rises above the humidity set point Sth plus the Dehumidification control differential rrh, the dehumidifi ca-
tion output is activated.
Par. Description Def Min Max UOM User User terminal
Sth Humidity control set point 90 0.0 100.0 % rH U YES
rrH Dehumidifi cation diff erential 5 0.0 50.0 Δ % rH S YES
SHu
DOz
StH
rrH
OFF
ON
300100_112_R01
Ref. Description
SHu Humidity control probe
Sth Humidity control set point
rrH Dehumidifi cation diff erential
DOz Dehumidifi cation output
Fig. 7.ah
Dead band
Humidity control in the dead band can be enabled by setting both the humidifi er and dehumidifi er outputs.
Par. Description Def Min Max UOM User User terminal
Sth Humidity control set point 90 0.0 100.0 % rH U YES
rdh Humidity control diff erential 5 0.1 99.9 % rH S YES
rrH Dehumidifi cation diff erential 5 0 50.0 Δ % rH S NO
rnH Dead band for humidity control 5 0 50.0 Δ % rH S NO
300100_113_R01
StH
SHu
rrH rdHrnH
REVERSE DIRECT
DOu DOz
==
Ref. Description
SHu Humidity control probe
Sth Humidity control set point
rdh Humidity control diff erential
rrH Control diff erential for dehumidifi cation
rnH Humidity dead band
DOu Humidifi cation outlet
DOz Dehumidifi cation output
Fig. 7.ai
Notice: parameter F4r is used to decide whether or not to disable the humidifi cation output during defrosts:
• F4r=0 -> humidifi cation output active based on humidity control;
• F4r=1 -> humidifi cation output disabled during defrosts, regardless of the request.
