Please keep this instruction manual for future reference Instruction manual DD782BK 33

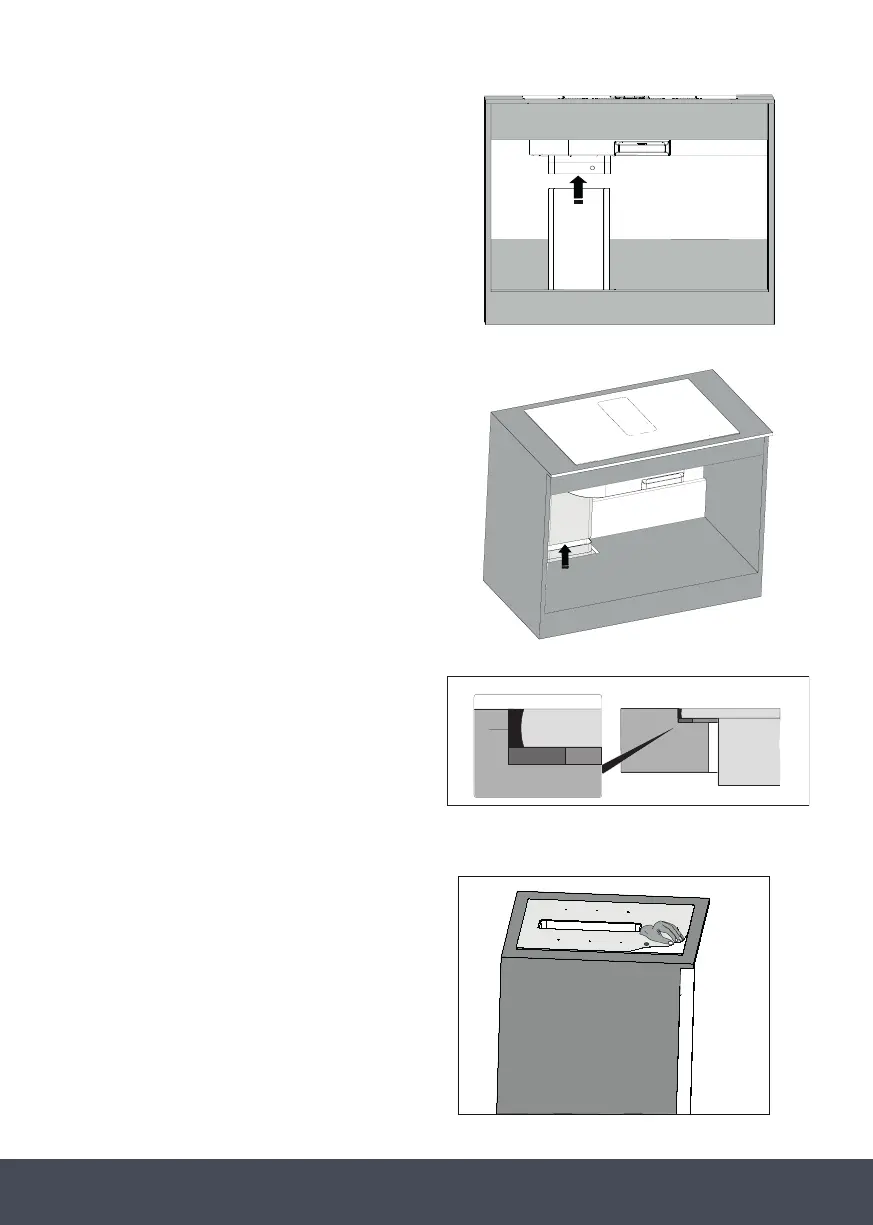

After passing the short elbow through
your counter, connect it to one of the
rectangular ducting pipes.
Tape the junction point of the two
pipes with sealant tape.
NOTE: Cut down the rectangluar
ducting piece if necessary.
Connect the remaining elbow piece
to the 2nd rectangular ducting piece.
Tape the junction point of the two
ducting pipes with sealant tape.
Flush installation
A - Heat resistant silicone
After completing the flush installation
of your appliance, you can fill the
remaining gaps on your worktop with
heat-resistant silicone.
NOTE: This can make it difficult to
remove the hob at a later date for
servicing etc...
After filling the remaining gaps with
heat-resistant silicone, wipe the
surface of the hob and countertop
with a damp cloth to avoid stains.
Use of silicone after assembly
A
When you have completed the
installation, remove the protective
sheet from the glass.
After passing the short elbow through your
counter, connect it to one of the rectangular
ducting pipes.
Tape the junction point of the two pipes with
sealant tape.
NOTE:
Cut down the rectangular ducting piece if
necessary.
Connect the remaining elbow piece to the 2nd
rectangular ducting piece.
Tape the junction point of the two ducting
pipes with sealant tape. Install the short elbow
ducting piece in the direction of the arrow.
USE OF SILICONE
AFTER ASSEMBLY
A - Heat resistant silicone
After completing the ush installation of your
appliance, you can ll the remaining gaps on
your worktop with heat-resistant silicone.
NOTE:
This can make it difcult to remove the hob at
a later date for servicing etc.
After lling the remaining gaps with heat-
resistant silicone, wipe the surface of the hob
and counter-top with a damp cloth to avoid
stains.
When you have completed the installation,
remove the protective sheet from the glass.
After passing the short elbow through
your counter, connect it to one of the
rectangular ducting pipes.
Tape the junction point of the two
pipes with sealant tape.
NOTE: Cut down the rectangluar
ducting piece if necessary.
Connect the remaining elbow piece
to the 2nd rectangular ducting piece.
Tape the junction point of the two
ducting pipes with sealant tape.
Flush installation
A - Heat resistant silicone
After completing the flush installation
of your appliance, you can fill the
remaining gaps on your worktop with
heat-resistant silicone.
NOTE: This can make it difficult to
remove the hob at a later date for
servicing etc...
After filling the remaining gaps with
heat-resistant silicone, wipe the
surface of the hob and countertop
with a damp cloth to avoid stains.
Use of silicone after assembly
A
When you have completed the
installation, remove the protective
sheet from the glass.
Flush installation
