Instruction manual BU525SS & BU755SS16 Please keep this instruction manual for future reference

REPLACING THE BULB

NOTE:

The lights must be replaced by a qualied person.

1. Switch off and unplug the extractor.

2. Remove the aluminium grease lter.

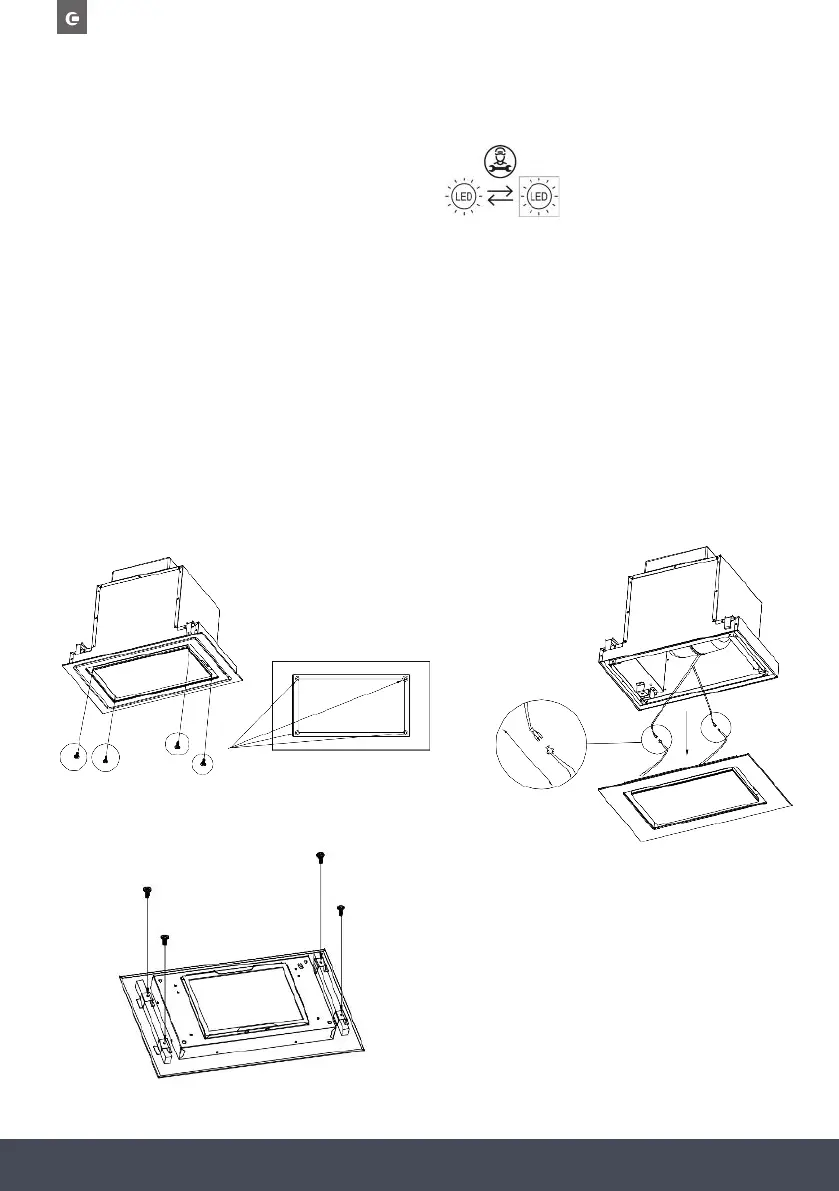

3. Loosen the 4 screws on the top panel (Fig A).

4. Disconnect the light wires and remove the panel (Fig B).

5. Loosen the 4 screws on the top of the panel (Fig C).

6. Release the light connectors and pull the LED strips out (Fig D).

7. Replace the light with the same LED tting by following these instructions in reverse.
