8E
VTR
MACRO
Locating Pin
Power/Iris
Control Cable
Bayonet Mount Ring
MACRO
M
F.B
A
M
W
T
Camera

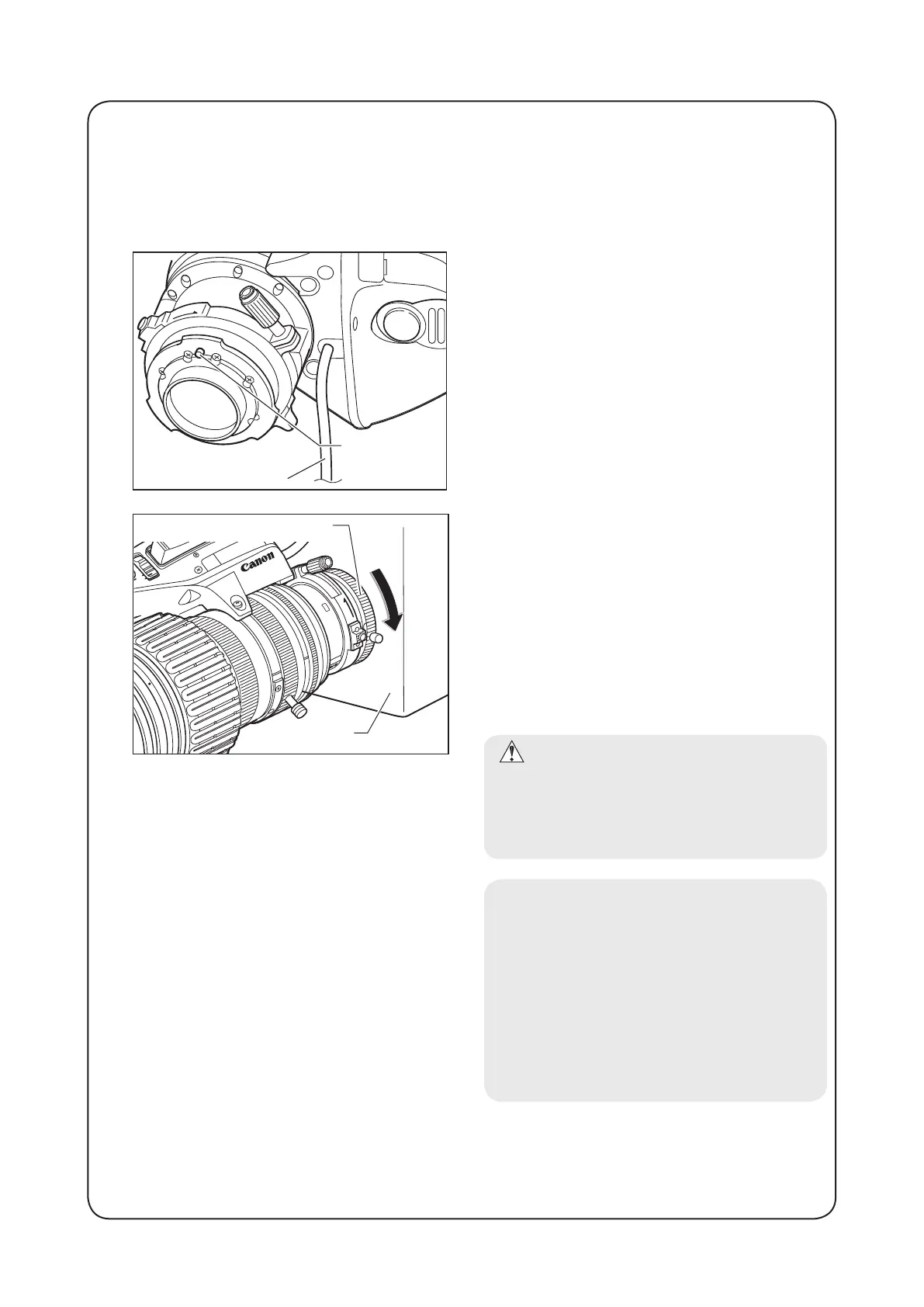

1 Position the camera horizontally.
2 Turn the bayonet ring of the camera
counterclockwise as viewed from the lens. Remove
the dust cap from the camera mount.
3 Remove the dust cap from the lens.
4 Align the locating pin on the lens mount with the
slot on the camera mount and t the lens into the
camera mount surface.
5 Turn the bayonet ring clockwise until the lens mount
is rmly xed in place.
6 Connect the power/iris control cable on the back of
the drive unit to the appropriate receptacle on the
camera head.
* For KTS type lenses
Connect an optional extension cable to the lens
control cable if needed. Then connect the cable to
the optional remote controller.
CAUTION
Never hold the lens, drive unit and band portion
to support the entire weight of the camera.
Excessive force to the mount portion and drive
unit of the lens may result in damage to the lens
mechanism.
NOTE
1)
Once they have been removed, keep the caps
in a safe place so that they will not be lost or
misplaced.
2）
A master key mark is provided on the power/
iris control cable. Connection can be performed
smoothly by aligning the master key mark on the
camera connector with this mark.
3） Depending on systems, it is required to check the
camera's specication.
2-2. MOUNT THE LENS ON THE CAMERA
Before mounting the lens on the camera, make sure that the camera's power is turned off.
↓
↓
↓
↓
↓
2-3. TURN IT ON
Turn on the camera,and the power of the lens will be supplied.
