5E
1. NOMENCLATURE
ZOOM
MANU.
SERVO
⑫
⑬
⑭
⑮
⑩
⑱

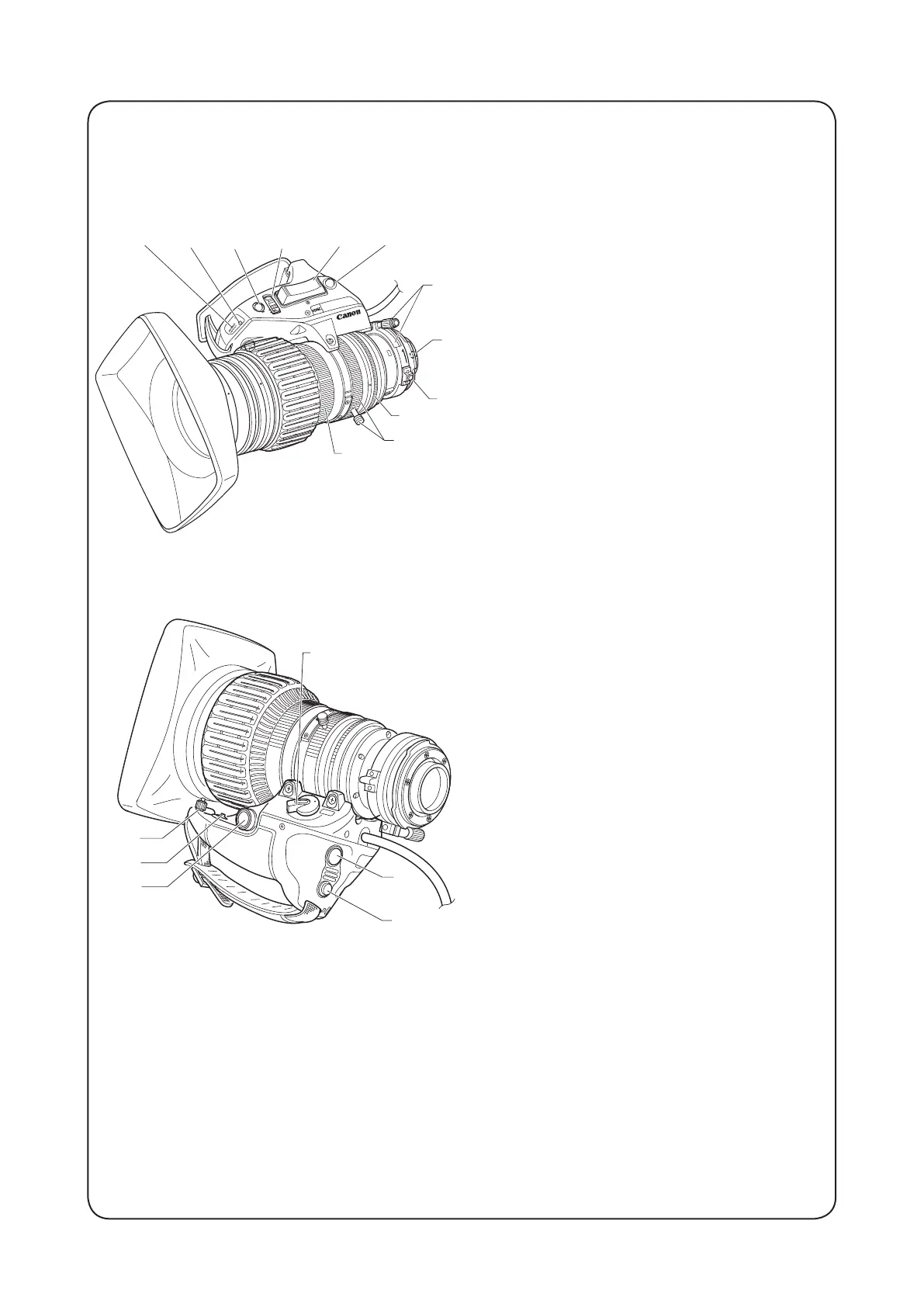

The shape of the lens body and attachments are
different by models.
This illustration is an example of KJ20x8.5B KRSD A.
MACRO
M
F.B
⑥
⑦
⑧
⑨
⑩
⑪
IRIS
A
M
W
RET
T
KJ20x8.5B IKRSD A
20x
I.G.
Shtl
VTR эShtl
RET эShtl
ձ
ղ
ճ
մ
ON
ON
ON
ON
SPARE
①⑰
②
③
④
⑤
① Iris Gain Adjusting Trimmer
Adjusts the iris responce speed in Auto iris mode.
② Instant Auto-Iris Switch
While pressing this switch, automatic iris operation
instantly takes effect.
③
Iris Operation Mode Change-over Switch
Use this switch to change from manual to automatic
or vice versa.
④ Zoom Rocker Seesaw
Use this rocker for servo zoom operation.
The zoom speed changes according to how far down
the rocker is pressed.
⑤ RET Switch (Video Return Switch)
While this switch is held down, on air picture/ being
recorded picture can be seen in the viewnder
through camera
control system when multi cameras
are connected to its system.
⑥ Flange Back Lock Screw/Flange Back
Adjusting Ring
Loosen this screw and turn this ring to adjust the
back focus.
⑦ Locating Pin
Determines the mounting position of the lens.
⑧ Macro Button/Macro Ring
Use this button and ring to shoot an object which is
closer than the M.O.D.
⑨ Iris Ring
Turn the iris ring to operate the iris manually.
⑩ Zoom Ring/Zoom Lever
Use the zoom ring and zoom lever to operate the
zoom manually.
⑪ Focus Ring
Turn this ring to focus on the object.
⑫ Zoom Operation Change-over Knob
Use this knob to change from manual to servo zoom
operation or vice versa.
⑬ Hood Lock Knob
Loosen or tighten this knob to remove or x the lens
hood on the lens.
⑭ MEMO Switch
Use this knob to set the shuttle position.
⑮ Connector for Remote Zoom Control
Zooming is performed by remote control when this
connector is used to connect the unit to an optional
controller for zoom operations.
Normally, this connector is covered with a cap.
⑯ VTR Switch
Use this switch to start or stop the VTR.
⑰ DIP Switches
Use these DIP switches for the settings related to the
shuttle-shot function.
⑱ Shtl Button (Shuttle-Shot Button)
This switch is used for shuttle-shot function.
