Following connections are possible:
2.6.1 Drain hose to sink
Hang the drain hose with the U-support over
the edge of a sink with adequate size (Fig. 2-5).
Protect the U-support sufficiently against slip-
ping.
2.6.2 Drain hose to waste water connection
The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
Put the drain hose for 80-100 mm in the wast-
ewater pipe.
Attach the U-support and secure it sufficiently
(Fig. 2-6).
2.6.3 Drain hose to sink connection
The junction must lie above the siphon.
A spigot connection is usually closed by a pad
(A). That must be removed to prevent any
disfunction (Fig. 2-7) .
Secure the drain hose with a clamp.
CAUTION!
The drain hose should not be submerged in water and should be securely fixed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being filled (self-
siphoning).
Drain hose is not to be extended. If necessary contact after sales service.

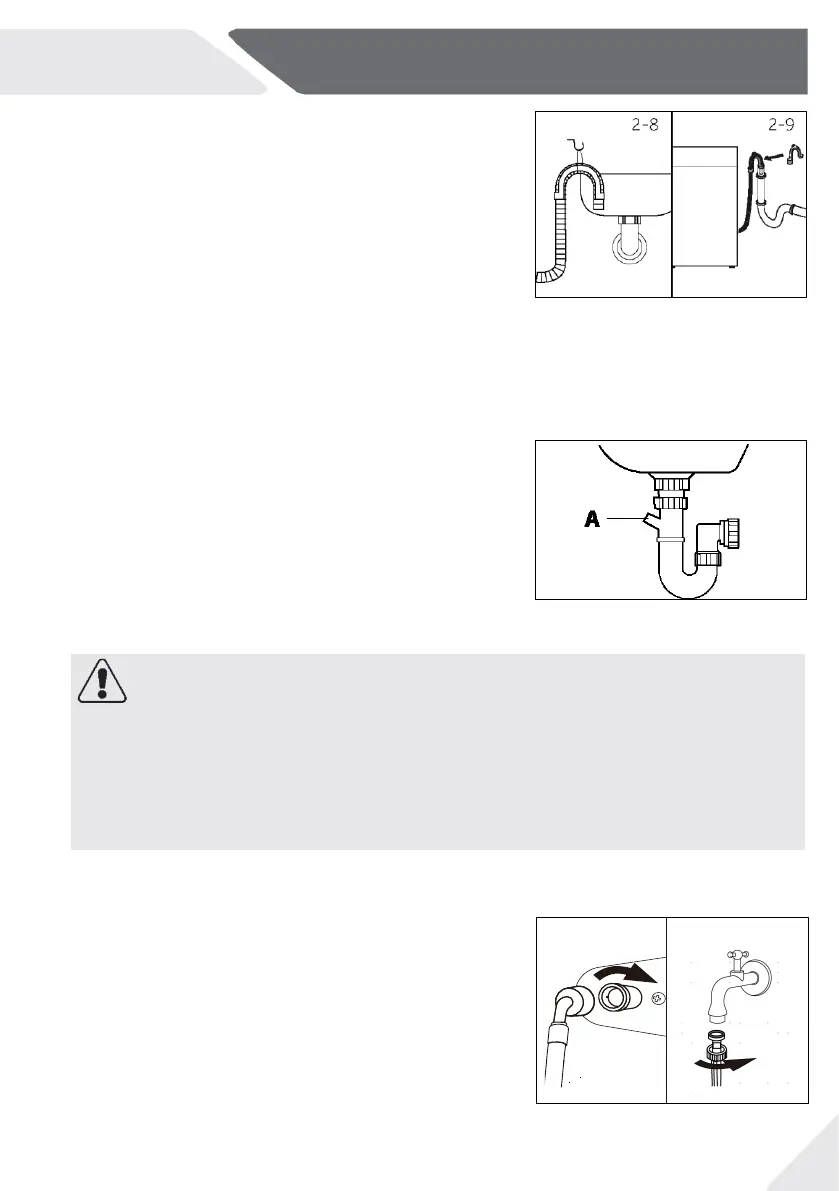

2-5
2-6
Do not remove the drainage pipe clamp.
2.7 Drain hose to sink connection
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled end
to the appliance (Fig.2-8 ).Tighten the screw
2. The other end connects to a water tap with a 3/4
thread (Fig.2-9).
2-8 2-9
Joint by hand.
2-7
