FLUSH INSTALLATION (MODELS WITHOUT METAL TRIM/S ONLY)

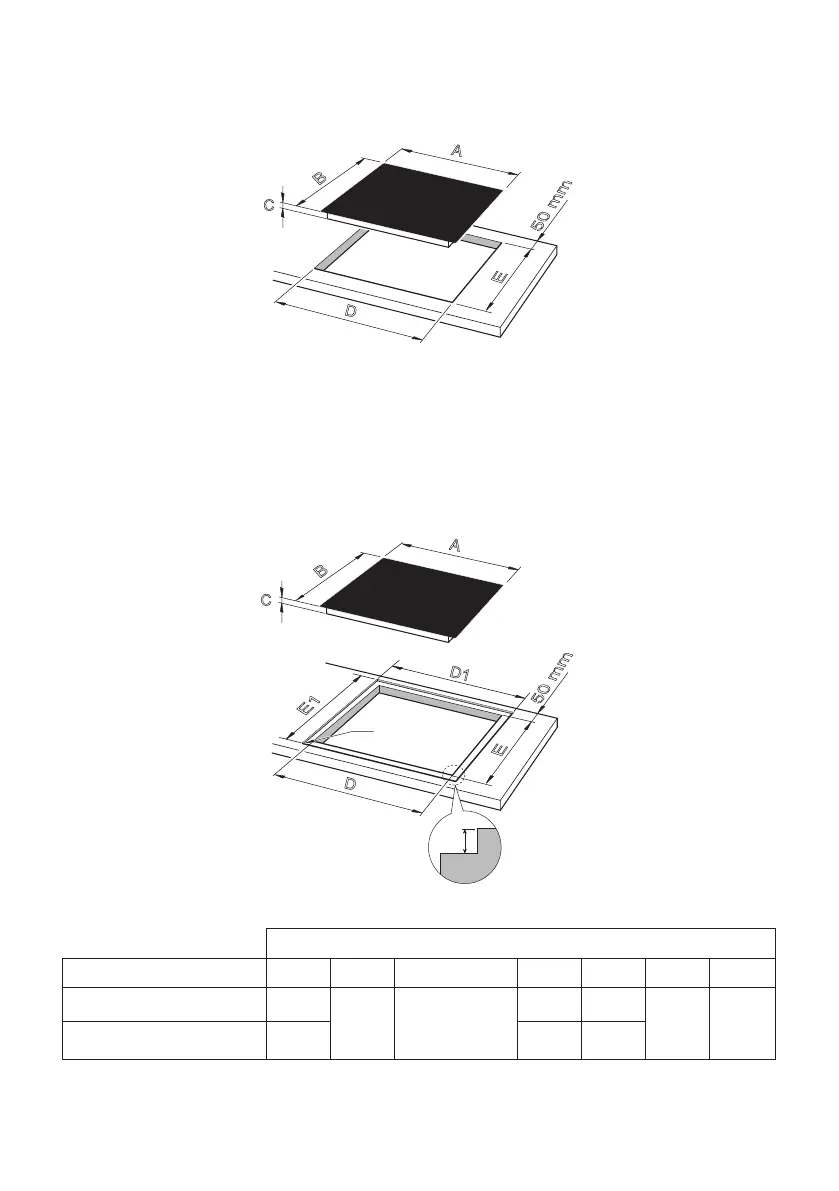

If you wish to install the hob ush with the work surface, it is necessary to execute/carry out
a milling in the hole of the cut-out as indicated in g. 1.1b.
E
50 mm
D
A
B
C
Fig. 1.1a
E
50 mm
D
D1
E1
R7
5
A
B
C
Fig. 1.1b
STANDARD INSTALLATION
Measures (mm)
Description A (*) B (*) C (**) D D1 E E1
60 cm wide models 600
520
50 or 55 for
ush
installation
560 605
480 525
90 cm wide models 900 840 905
(*) For models with metal trim/s add 4mm to the measurement for each trim.
Example: front metal trim = B + 4 mm.
(**) from the top of countertop to bottom of cooktop.
