Indoor Unit Installation

Driver

Torque wrench

(17mm,22mm,26mm)

Nipper

Reamer

Hacksaw

Pipe cutter

Gas leakage detector or

soap-and-water solution

Hole core drill

Flaring tool

Spanner(17,19 and 26mm)

Knife

Measuring tape

Necessary Tools for Installation

Power Source

Before inserting power

into receptacle, check the voltage without

fail.

The power

supply is the same as the

corresponding nameplate.

Install an exclusive branch circuit of the power.

A receptacle shall be set up in a distance where the power cable

can

be

reached.

Donotextendthecablebycuttingit.

Selection of Installation Place

Place, robust not causing vibration, where the body can be

supported suffi ciently.

ƽ

Place, not affected by heat or steam generated in the vicinity,

where inlet and outlet of the

unit are not disturbed.

ƽ

Place, possible to drain easily, where piping can be conne-

cted with the outdoor unit.

ƽ

Place,wherecoldaircanbespreadin a roomentirely.

ƽ

Place, nearby a power receptacle, with enough space around.

ƽ

Place where the distance of more than lm from televisions,

radios, wireless apparatuses

a

nd fluorescent lamps can be

left.

ƽ

In the case of fixing the remote controller on a wall, place

where the indoor unit can

receivesignalswhenthefluore-

scent

ƽ

lamps

in the room are lightened.

ƽ

ƽ

ƽ

The distanc e between

the indo or unit and the

floor should be more

than 2m.

mor e than

10cm

mor e than 15cm

more than 10cm

Th e model s adopt HF C ref rigerant R32

Arrangement of piping

directions

Rear left

Left

Rear

right

Right

Below

Attention must be paid to

the rising up of drain hose

Please be subject to the actual product purchased,the above picture is just for your reference.

If using the left side drain pipe, make sure the hole is got through.

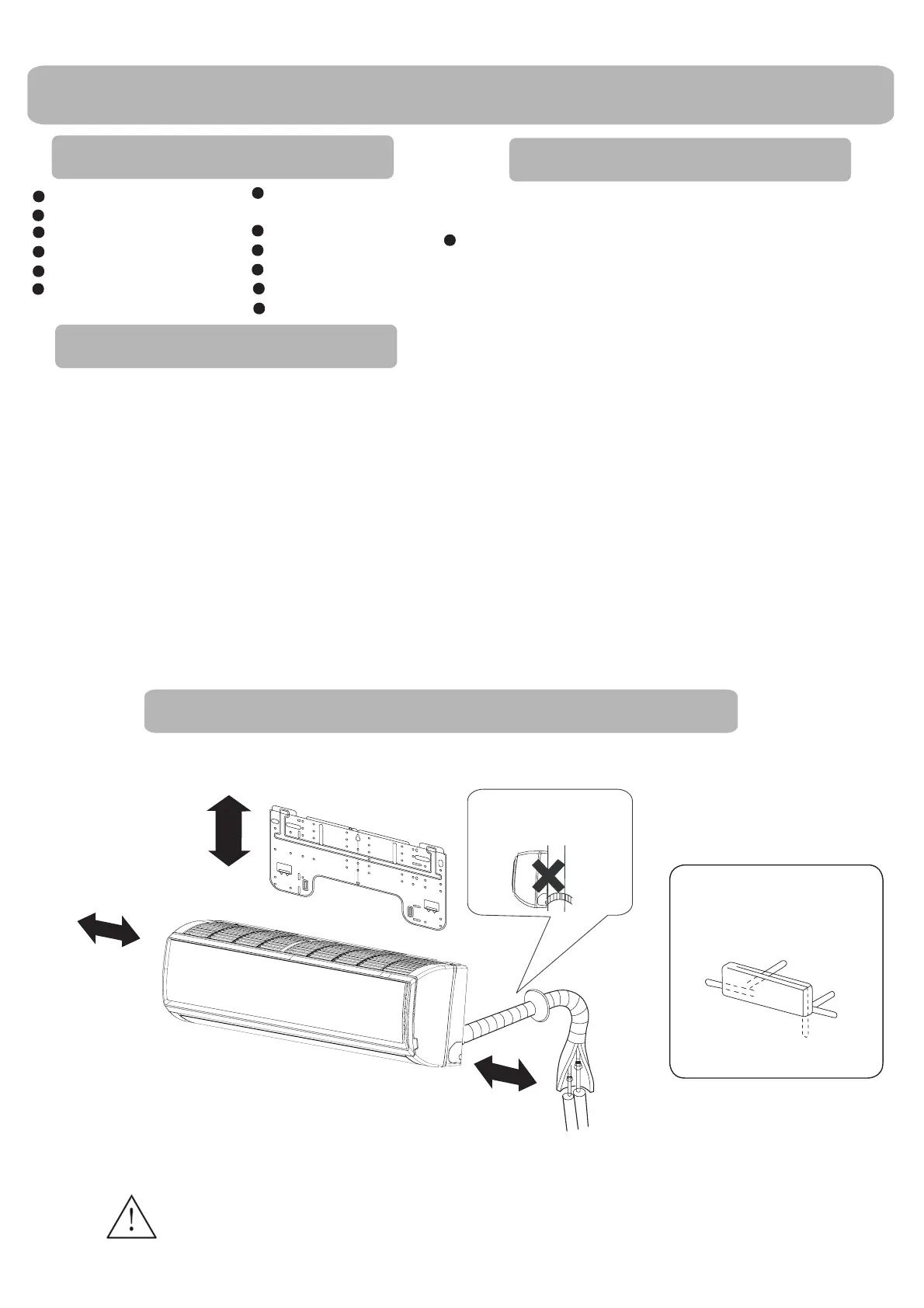

Drawing for the installation of indoor units

7
